Quality Testing Equipment

Processing equipment, laboratory supplies and instrumentation for the soft drink, food, chemical, pharmaceutical, water, and waste water industries.

Your product quality is our business.

RETURN

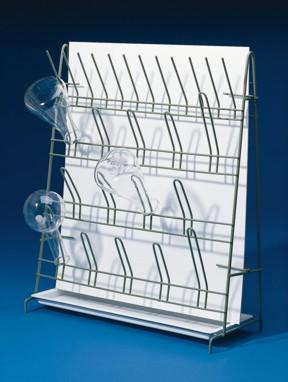

Rack, Glassware, Draining, Drying

Click on the image for a larger view
T-09-260   Draining rack
T-09-334 Product discontinued, see T-09-260

For draining and drying test tubes, beakers, flasks, and other laboratory glassware. The top row has 12 straight pins 102 mm (4 inches) long to accommodate smaller items. The three lower rows of hairpin-loop supports (14 in all) hold labware with 18 mm ID necks or larger.

A polystryrene tray at the bottom catches water as the labware drains. The legs of the stand have rubber tipped feet for non-skid use on a tabletop, or the stand may be mounted on the wall using the wire loops on the back.

The stand is 16-3/4" (43 cm) wide x 6" (17 cm) deep x 19" (48 cm) high.

RETURN

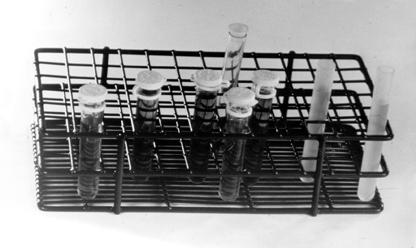

Rack, Test Tube

Click on the image for a larger view
T-09-332  40 hole, 11-1/2" x 5"
T-09-333  80 hole, 12-1/2" x 10"

Welded steel wire, coated with epoxy. Square holes for tubes 22 to 25 mm.

RETURN

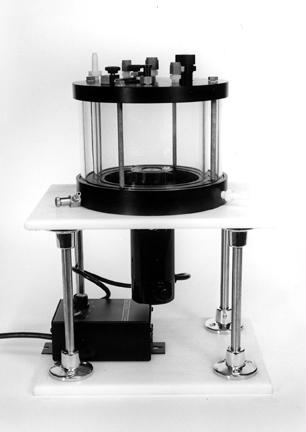

Reaction Chamber, Bioreactor
Applying patented methodologies in low level oxygen, pH and CO2 measurements, low speed magnetic stirring, gas recirculation, liquid (and slurry) sparging and leak-tight chamber construction, Terriss offers a variety of custom environmental instruments, including bioreactors and respirometers.

Smaller units utilize the SmarTesterPC Mini-Lab to power sensors and accessories (like valves and pumps), plus acquire and store data. Larger, more complicated systems are handled by a personal computer with accessories like data acquisition and relay boards. In either case long term data archiving and statistical analysis are available with SmartLab software.

Outline your process requirements to us, and we would be pleased to quote on a system that will meet your needs.

Considerations:
1. Sensors requirements (e.g. oxygen, carbon dioxide, pH, temperature, pressure, other).

2. Data collection requirements, including statistical analysis requirements.

3. Chamber requirements (e.g. size, materials of construction, stirring, constant temperature bath, etc.).

4. Process description. Outline in as much detail as possible the process involved. Tell us what you want to achieve and how you expect to do it.

RETURN

Reaction Chamber, Custom with Integral Magnetic Stirrer
Terriss' new line of custom reaction chambers is designed for a variety of scientific studies including soil, wastewater, chemical and biological.

Specifications:
Sizes: 500 milliliters to 10 gallons

Styles: Single and double wall (the latter for heating and cooling).

Covers: Threaded or clamp-style.

Construction Materials: (Depending on application requirements) stainless steel (type 303, 304 and 316), Norel, Nylon, PVC, glass and Acrylic.

Gaskets: Buna, Neoprene or Viton.

Fittings: NPT or straight thread, on the top, sides or bottom.

Accessories: an integral magnetic stirrer (the stir bar is on a pin on the bottom), sparging frits, mesh sieves and perforated stainless steel platforms.

Also available are a variety of instruments for measuring pressure, temperature, oxygen, carbon dioxide, methane, pH, conductivity, to name a few, plus process control and data collection.

Terriss Magnetic Stirrers mix up to ten gallons comfortably. They are available in speedsbetween 30 and 2000 rpm. The driver and stir bar incorporate rare earth magnets for powerful coupling. The enclosure is stainless steel.

RETURN

Refractometer Calibration Liquids

Click on the image for a larger view
T-05-311   42.23 bx at 20 deg C (RI 1.40429), 0.25 oz
T-05-313 42.23 bx at 20 deg C (RI 1.40429), 1 oz
T-05-314 79.69 bx at 20 deg C (RI 1.48989), 0.25 oz
T-05-316 79.69 bx at 20 deg C (RI 1.48989), 1 oz

Master calibration liquids for use on bench refractometers with constant temperature circulating water bath.

RETURN

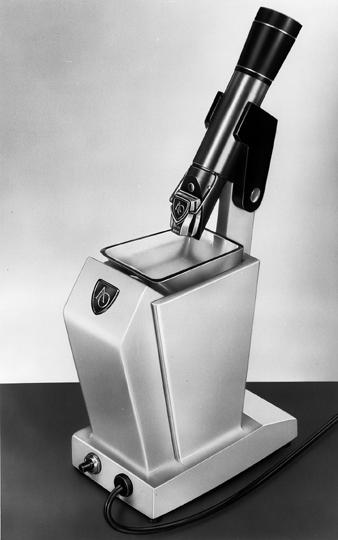

Refractometer Holder, For T-05-206 Only

Click on the image for a larger view
T-05-212   110 VAC
T-05-214 220 VAC
T-05-215  Spare bulb, 110 VAC
T-05-216 Spare bulb, 220 VAC

Visual light holder for hand refractometer Model T-05-206 only. Concentrates built-in light on prism face making scale readings sharp and accurate through eyepiece.

RETURN

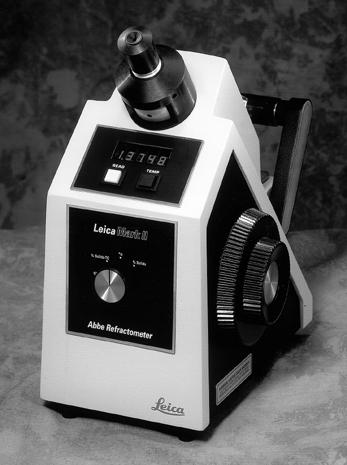

Refractometer, Bench, Abbe

Click on the image for a larger view
T-05-200  Unit, complete, 115 VAC, 60 hz
T-05-210 Unit, complete, 220 VAC, 50 hz
T-05-201 Bromonaphthalene $33.00
T-05-202 Test Glass for Abbe
T-05-202  Test Glass for Abbe
T-05-203  Bulb, screw type, 3/pk
T-05-204  Bulb, bayonet type, 3/pk

Fast, accurate determination of brix, range 0-85 degrees. Automatic temperature conpensation. Water bath not required. Eliminates all need for correction table. Accurate to +/- 0.1 degree brix and temperature to 0.1 degree C. LED instant digital display. Temperature compensated range is 60-120 degrees F. Also includes refractive index scales from 1.3200 to 1.7000nD.

RETURN

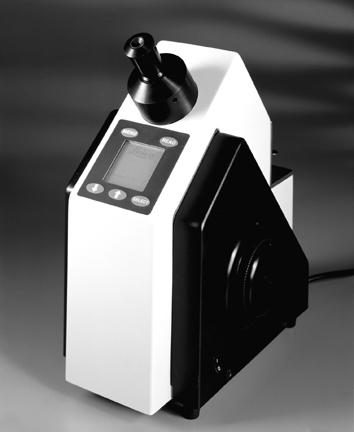

Refractometer, Bench, Abbe, Semi-Automatic (Leica ARIAS 500)

T-05-225  Unit, complete

Click on the image for a larger view
The Leica ARIAS 500 Semi-Automatic Abbe Refractometer has a range of 0 to 100 brix and features an accuracy of +/-0.03% (refractive index of 1.3 to 1.7, accuracy of +/- 0.00005). This unit also features automatic temperature equilibration detection which ensures that the sample is read only when the temperature has stabilized, as well as automatic temperature compensation.

The unit automatically determines the optimal reading point and corrects the reading mathematically for temperature variation. Water bath circulation ports allow connection to temperature control for 10 to 80 deg. C with an accuracy of 0.01 deg. C for samples that must be read at a controlled temperature.

RETURN

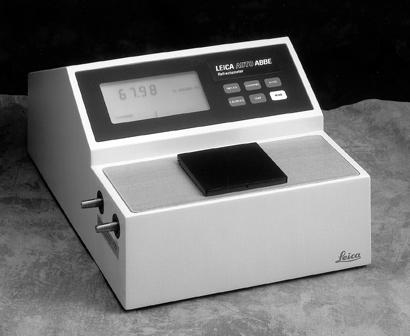

Refractometer, Bench, Digital, Automatic (Leica AR600)

Click on the image for a larger view
T-05-205  115 VAC, 60 hz
T-05-217  220 VAC, 50 hz

The Leica AR600 Automatic Refractometer features a full brix range of 0 to 90% with an accuracy of +/- 0.01% (refractive index range of 1.33 to 1.52, accuracy of +/- 0.00002).

Unique to the Leica unit is an automatic temperature equilibration detection feature ensuring that the sample is read only when the temperature has stabilized. Along with automatic temperature compensation, the unit takes accurate, temperature corrected readings automatically, eliminating the possibility of operator errors. Water bath circulation ports allow connection to temperature control from 10 to 60 deg. C with an accuracy of 0.01 deg. C for samples that must be read at a controlled temperature.

The user friendly graphic display provides bright, easy to read results in four languages (English, German, Spanish and French). A unique software system provides easy calibration, utilizing from one to five definable points (NIST certified calibration is included; others available). Computer communications are provided through the RS232 serial port interface. This allows the AR600 to be programmed with up to 14 custom scales as well. A parallel port is also included for a printer connection.

RETURN

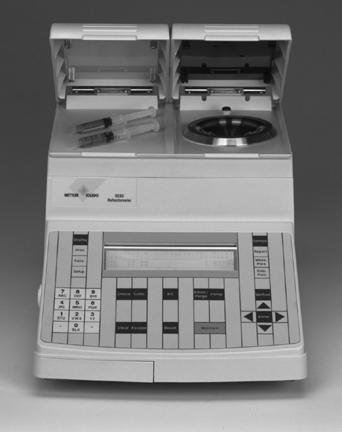

Refractometer, Bench, Digital, Mettler-Toledo
T-05-240  Refractometer, 4-Place Precision
T-05-240 Refractometer, 5-Place Precision
T-05-250 RE50 Table Editor Card
T-05-254  Bar Code Reader
T-05-255  GA42 Alphanumeric Serial Printer
T-05-256  GA42 Paper Roll, 5/pk
T-05-257  GA42 Ribbon Cartridge, 5/pk
T-05-260 Epson Printer Cable
T-11-457 In-Use Cover for Keypad 3/pk
T-11-458  Cable between RE/DE meters and GA42 printer
T-11-465  Memory Card-Blank, user Table
T-11-467  PC Software for Data Transfer

hese units are ideal for high accuracy refractive index, brix% and other concentration measurements.

The RE40 is a 4 place digital refractometer.

The RE50 is a 5 place digital refractometer.

Digital refractometers measure refractive index and other related values (e.g. brix%, HFCS, user defined concentrations) with high precision and short measuring times. A high resolution optical sensor measures the total reflection of a light beam emitted by a special LED light source after hitting the sample. This total reflection is converted into the measurement. A built-in Peltier thermostat controls the temperature (no water bath required), which saves money and bench top space.

General Information:

• Compact design with built-in Peltier thermostat for temperature control
• Small sample volume (0.2 ml)
• Short measuring time (15 sec)
• Easy calibration with air and water
• Memory for 10 methods and 100 results
• Memory Card for data storage and transfer of methods RE50)
• Various solutions for automation: from sampling pump to automated samplle changer<>.
• Can be connected to a DE45 or DE51 density meter for
• Barcode reader connection to easily scan in sample ID and user names
• Connection to computer for data handling

Special GLP/GMP features:

• Special CHECK function for regular instrument check
• Built-in alphanumerical keyboard allows you to enter laboratory name, operator name, method name and sample ID
• Programmable operating procedures can be entered to define correct sample handling (sample sequence)
• Simple ADJUSTMENT with water or with certified standards
• The last 10 CHECK and ADJUSTMENT data are stored and can be recalled and printed out anytime
• Printout of all important data: laboratory, user, date, time, serial number of instrument and measured data
Specifications:
Type RE40  RE50
Measurement range  nD 1.32-1.70  1.32-1.58
Accuracy nD 1 x 10-4  5 x 10-5
Accuracy brix  0.1%  0.03%
Temperature control yes yes
Temperature compensation yes yes
Temperature range  15-70 C  15-50 C
59-158 F  59-122 F
option  option
Sampling pump option  option
Sample changer
User defined application  yes yes
User methods 10 10
Memory card  no  yes
PC connection  yes  yes
Printer output  yes  yes
Barcode reader connection  yes yes
Built-in applications  brix% brix%

HFCS42/55

RETURN

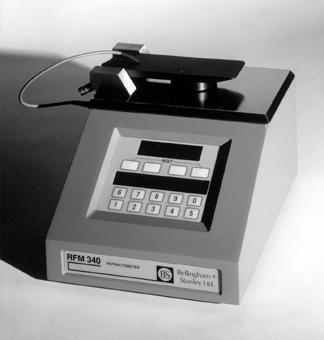

Refractometer, Bench, Digital, RFM 300 Series

T-05-102 Model 320, 0 - 50 bx, 0.01 divisions
T-05-104 Model 340, 0 - 95 bx, 0.01 divisions
T-05-108 Model 330, 0 - 95 bx, 0.1 divisions
T-05-110 Model 110, 0 - 50 bx, 0.1 divisions
T-05-111 Model 130, 0 - 95 bx, 0.1 divisions
T-05-101 Desiccator
T-05-103 Methylene Iodide, Bottle
T-05-105 Bulb

The RFM 300 series offers simplicity of operation, fast, accurate and reliable performance and durability. Apply sample, position presser, allow for temperature stabilization and press button for instant measurement. Choice of 16 pre-programed standard scales or 5 user-defined scales. Power supply operates on both 110 and 220 VAC, All models can be interfaced with a printer or computer through the instrument's RS232 port. Temperature compensation range 50-104F and 10-40 C.

The T-05-110 and T-05-111 read in brix only.

RETURN

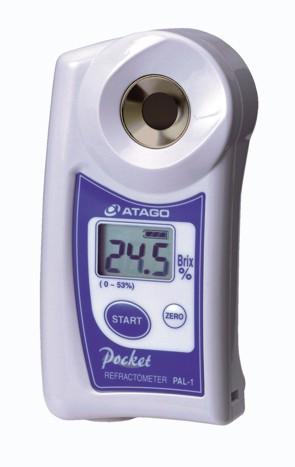

Refractometer, Hand-held (Pocket), Digital, Atago PAL Series

Click on the image for a larger view
T-05-445   0.0 - 53.0% brix
T-05-448 45.0-93.0% brix

The Atago PAL series refractometers are completely new and redesigned digital, hand-held instruments that will change the traditional conceptions of refractometers. The PAL refractometers are equipped with the following features.

• They are surprisingly compact in size allowing for portability and use indoors or outdoors. Weighing only 100 gm, they can be placed in a pocket or hang them from your neck or belt.

• Measurements can be made easily while holding them in just one hand. The sample stage is designed to keep sample solutions from spilling out.

• The speedy performance of these refractometers is amazing. Simply put a drop of a sample on the prism surface and press the START key. The brix value (sugar content/concentration) will be displayed in just 3 seconds.

• With a digital LCD display others can view the measurement value without the worry of mis-readings due to the subjectivity of each person (as with traditional analog refractometers).

• With their wide measurement range, 0.0 to 53.0% and 45.0 to 93.0%brix , the PAL refractometers work perfectly in measuring almost any fruit juice, food, or drink, such as soup, sauce, ketchup, tomato sauce, high and low-sugar jam, or marmalade.

• The protection class of the PAL refractomers is IP65. You can rinse off the sample by running water on the sample stage. The design allows the user to easily wipe off the sample.

• The automatic temperature compensation function of the PAL refractometers enables you to take measurement readings regardless of the ambient temperature.

• They can take a measurement of a high temperature sample that has been heated or boiled. (The stabilized brix value is acquired after a few times of repeated measurements.)

• The PAL refractomers come with an exclusive storage case. Store them in the case properly to avoid damage or loss.
Specifications:
PAL 1
Measurement range: 0.0 to 53.0% brix
Resolution:  0.1% brix
Measurement accuracy: +/-0.2% brix
Power supply: 2 - AAA batteries
Waterproof protection:  IP65
Dimensions and weight: 55 x 31 x 109 mm, 100 gm


PAL 2
Measurement range  45 to 93%
Resolution: 0.1% brix
Measurement accuracy: 0.1% brix
Measurement accuracy: 2 -AAA batteries
Waterproof protection  IP65
Dimensions and weight:  55 x 31 mm, 100 gm

RETURN

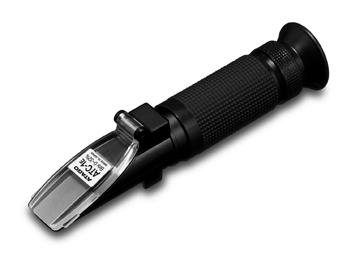

Refractometer, Hand-Held, Auto. Temp. Compensated, Atago

Click on the image for a larger view
T-05-407  0 - 32 bx

Measure brix without worrying about temperature. A built-in mechanism automatically corrects for temperature changes.

• 0.2 bx divisions, +/- 0.2 bx accuracy
• 10 - 30 deg. C temperature compensation range

RETURN

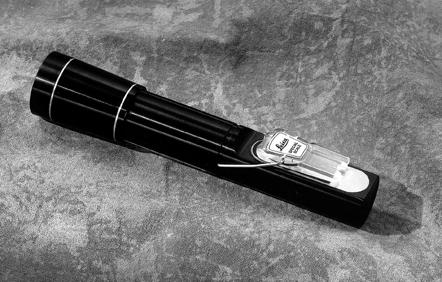

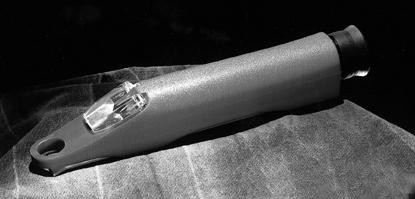

Refractometer, Hand-Held, Auto. Temp. Compensated, Leica

Click on the image for a larger view
T-05-211  0 - 10 bx, 0.2 bx div
T-05-220 0 - 15 bx, 0.1 div
T-05-206 0 - 30 bx, 0.1 div, metal body
T-05-207  0 - 30 bx, 0.2 div
T-05-223 0 - 30 bx, 0.2 div
T-05-218 35 - 65 bx, 0.2 div
T-05-208  0 - 50 bx, 0.25 div
T-05-209 50 - 90 bx, 0.2 div
T-05-221 65 - 90 bx, 0.2 div

Fast, simple to use. Only one drop of sample required, Checks sugar level of soft drinks, juices, grapes and other liquids.

RETURN

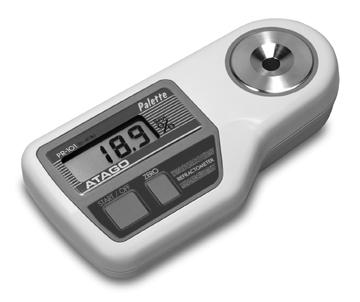

Refractometer, Hand-Held, Digital, Atago

Click on the image for a larger view
T-05-423 0 - 32 bx
T-05-425 0 - 45 bx
T-05-427 0 - 60 bx
T-05-429  45 - 90 bx

An automatic, hand held digital unit with excellent reproducibility and automatic temperature compensation within 40 - 100 deg. F. Accurate brix readings in 0.1 bx increments with an accuracy of +/- 0.2 bx. Complete with battery and ready for use. Dimensions are 2-3/4" w x 6-3/4" l x 1-3/4" h weighing just 10 oz.

RETURN

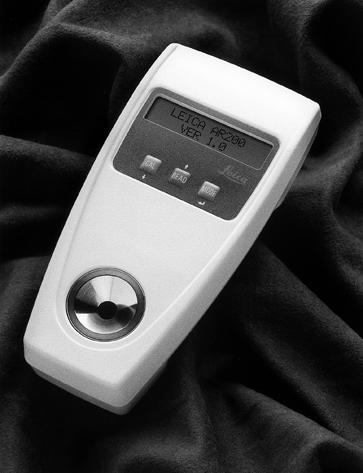

Refractometer, Hand-Held, Digital, Leica

Click on the image for a larger view
T-05-430  0 - 95 bx

This unit measures refractive index from 1.3330 to 1.5600 or percent solids as brix over the full range of 0 to 95%. It measures transparent, translucent and opaque samples, achieving accuracies of +/- 0.0001nD or 0.1% brix.

Features:
• IR communication port allows easy downloading of readings directly into your PC (optional accessories required).
• Prism temperature sensor and automatic temperature compensation enhance accuracy without manual calculations (10 to 110 deg F and 12 to 43 deg C).
• Many custom channels for use in the beverage, food, chemical and agricultural industries are available or can be created to meet your analytical needs.

RETURN

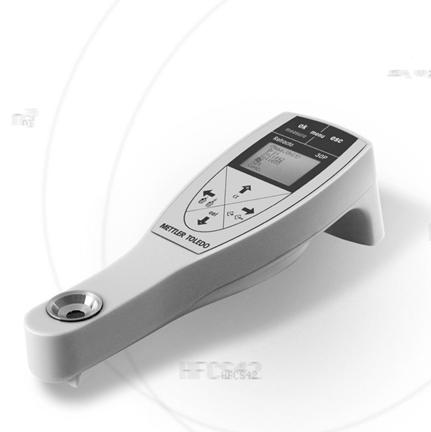

Refractometer, Hand-held, Digital, Mettler-Toledo

Click on the image for a larger view
T-05-248  Unit, complete
T-05-249 IR adapter

Refracto is a portable, easy-to-use refractometer for measurements in laboratory and production environments. Depending on the application, the instrument can be used in two ways: Either put it on a flat surface and place a drop of sample onto the measurement cell, or immerse the sensor directly into the fluid. As soon as you press the measurement key, the result is displayed.

You no longer need to rely on error-prone readings of dark/bright transitions as with optical instruments. Refracto even measures dark samples correctly. Because the refractive index is temperature dependent, Refracto can also be programmed to automatically temperature compensate the result.

The resolution of the Refracto is nD0.0001, and you may choose from over 15 different measurements including nD, brix%, HFCS and alcohol%.

The unit stores up to 1,000 measurements. An optional IR adapter is available for transmitting data from the refractometer to a computer or printer.

Refracto is delivered in a special case which contains

everything you need for successful measurements: Pipettes for sample handling, cleaning towels, vials for samples and cleaning solutions, operating instructions and a CD-ROM with data transmission software, a tutorial to get started and more.

Soft Drinks: Simple sugar content determination

The precise measurement of the temperature during operation and the automatic temperature compensation using built-in ICUMSA tables ensure highly reliable brix% results.

Customized applications: Use your own concentration tables

With Refracto any concentration measurement can be performed without manual calculation. Just define the corresponding formula or tables and the instrument gives you the final result.

RETURN

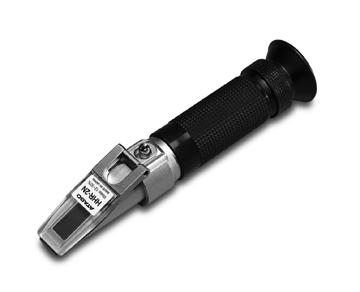

Refractometer, Hand-Held, Honey

Click on the image for a larger view
T-05-409  12 - 26% scale, water content

A specially designed hand held refractometer to determine the percentage of water contained in honey. 0.25% resolution and 0.1% accuracy.

RETURN

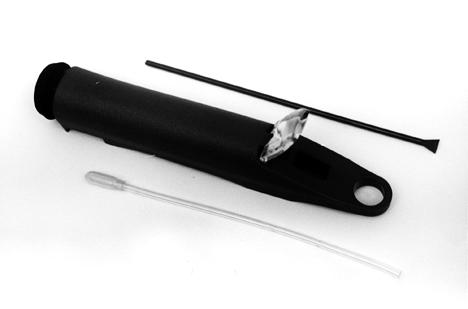

Refractometer, Hand-Held, Industrial Fluid Tester

Click on the image for a larger view
T-05-213  0 - 30

Designed to ensure proper concentration of water soluble industrial fluids, i.e. cutting fluids, cleaners, acid baths, etc. Scale 0 - 30 in 0.5 divisions. Also used for checking water/foam proportions of chemical concentrate used in foam generating fire control equipment. Impact resistant, rugged plastic body.

RETURN

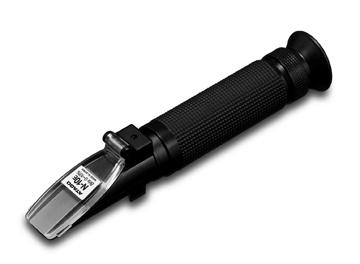

Refractometer, Hand-Held, Non-Temp. Compensated, Atago

Click on the image for a larger view
T-05-400 0 - 10 bx, 0.1 bx divisions
T-05-401 0 - 20 bx, 0.1 bx divisions
T-05-402 0 - 32 bx, 0.2 bx divisions
T-05-403 28 - 62 bx, 0.2 bx divisions
T-05-404 45 - 82 bx, 0.2 bx divisions
T-05-405 58 - 90 bx, 0.2 bx divisions
T-05-406 Three ranges: 0 - 42, 41 - 70, 69 - 90 bx, 0.2 bx divisions

Check brix in soft drinks: finished product, plant production, dispensing and vending machines. Accuracy +/- 0.2 bx. Case included.

RETURN

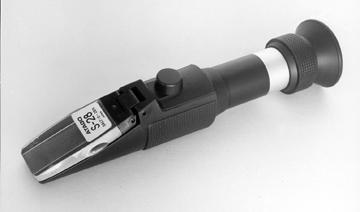

Refractometer, Hand-Held, Saline

Click on the image for a larger view
T-05-410 Dual scale: 0 - 160, 2 pts/thousand divisions; refractive index 1.3330 - 1.3730, 0.0002 divisions
T-05-411 0 - 10% scale, 0.1% divisions
T-05-412 0 - 28% scale, 0.2% divisions
T-05-413 Dual Scale: 0 - 100 ppt, 1.0 divisions;

Direct reading scales for salinity.

RETURN
