Quality Testing Equipment

Processing equipment, laboratory supplies and instrumentation for the soft drink, food, chemical, pharmaceutical, water, and waste water industries.

Your product quality is our business.

RETURN

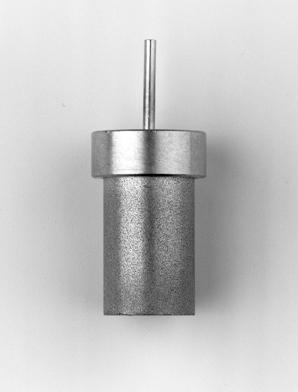

Degassing Air Stone, Stainless Steel and Ceramic

 Click on the picture for a larger view
T-04-106  Ceramic air stone
T-04-107  Stainless steel
The stainless steel air stones have a 1/8" OD, tubular connection and are not to be used with T-04-100 or T-04-300 degassing pumps. The ceramic air stones have a 3/16" OD connector and are for use with the T-04-300 degassing air pump.

RETURN

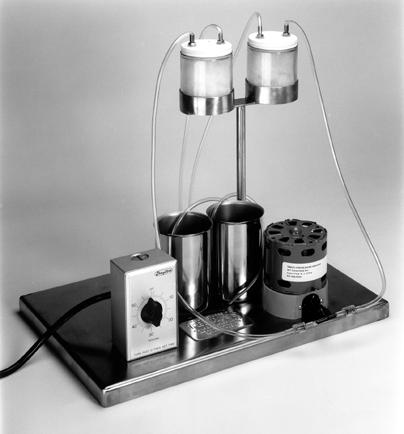

Degassing Assembly, Air Pump

 Click on the picture for a larger view
T-04-100 Unit, complete, 110/115 VAC
T-04-101 Glass jar w/top
T-04-102 Fiberglass (2)
T-04-103 Tygon hose, 3 ft
T-04-104 Cup, stainless steel
T-04-105 Timer
T-04-106 Ceramic air stone
T-04-300 Degassing pump only,
For rapid removal of CO2 or other gas impurities from soft drink in preparation for colorimetric and TA analysis. Stainless steel base with pump and timer, base 11" x 17". Furnished with two ceramic air stones. Voltage 110/115V, 60 HZ.

RETURN

Degassing Assembly, Blender/Vacuum

 Click on the picture for a larger view
T-04-119  110 VAC
This unit combines high speed blending with a vacuum. The blending action breaks out the molecules of carbon dioxide from the beverage and the vacuum draws them out of the container as it gently sparges.

RETURN

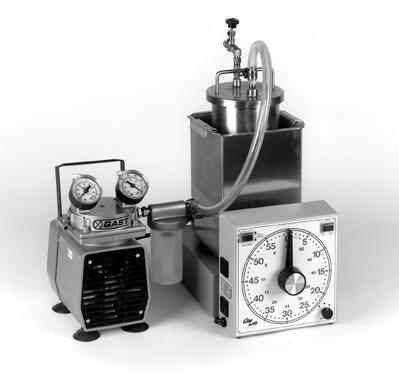

Degassing Assembly, Ultrasonic/Vacuum

 Click on the picture for a larger view
T-04-120  110 VAC
T-04-125  220 VAC
This unit combines ultrasonic shaking, vacuum and sparging. It breaks the gas molecules out of the liquid with ultrasonic waves. It draws the gas out of the container with a vacuum pump as it gently sparges.

RETURN

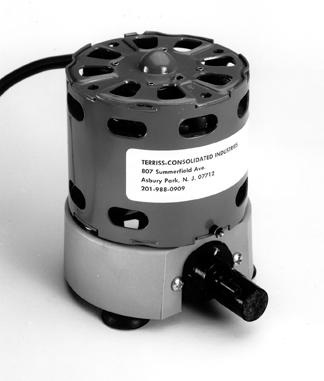

Degassing Pump, Air Displacement

 Click on the picture for a larger view
T-04-300    Degassing pump only
T-04-301 Check valve
T-04-302 Leather cup washer
T-04-304  "T" Connection
For removing carbonation by means of air displacement. Furnished with tygon hose and two air stones. For use alone or as replacement pump for the Degassing Assembly, Code T-04-100. Voltage 110/115 VAC, 60 HZ.

RETURN

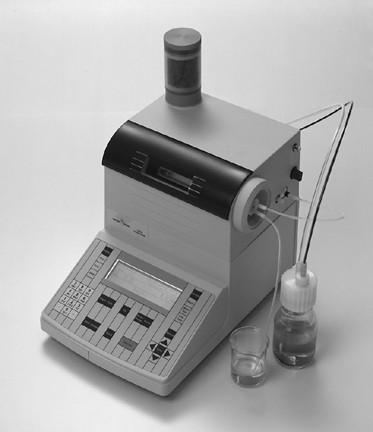

Density Meter, Bench, Digital, Mettler-Toledo
T-11-449 DE45 Density Meter, 4.5 Place Prec.
T-11-450 DE51 Density Metr,5 Place Precision

These units are ideal for high accuracy density, specific gravity and other concentration measurements.

The DE45 is a 4.5 place digital density meter.
The DE51 is a 5 place digital density meter.

Digital density meters measure density, specific gravity and other related values (i.e. alcohol%, brix%, API degrees) with high precision and short measuring time. A hollow glass tube vibrates at a certain frequency. This frequency changes when the tube is filled with the sample: the higher the mass of the sample, the lower the frequency. This frequency is measured and converted into density. A built-in Peltier thermostat controls the temperature (no water bath required).For accessories see Density Meter, Bench, Digital, Mettler-Toledo, Accessories.

Both units include these features:
• Compact design with built-in Peltier temperature control
• Small sample volume (1.2 mL)
• Short measuring time (60 Sec)
• Memory for 10 methods and 100 results
• Memory Card for data storage and transfer of methods
• Various solutions for automation: from sampling pump to
automated sample changer.
• Can be connected to a RE40 or RE50 refractometer for
< refractive and density of measurement simultaneous>
• Fully automatic viscosity correction
• Barcode reader connection to easily scan in sample ID and user names
• Ensures correct measurements. These instruments feature
a complete sampling sequence, which prevents the major
sources of error.
• Connection to computer for data handling

Special GLP/GMP features:
• Each instrument comes with 5 certified water standards
(traceable to NIST)
• New CHECK function allows you to regularly check calibration
• Additional density standards are available for CHECK
purposes
• Built-in alphanumerical keyboard allows you to enter
laboratory name, operator name, method and sample ID
• Programmable operating procedures can be entered to define correct sample handling (sample sequence)
• The last 10 CHECK and ADJUSTMENT data are stored and can be recalled and printed out anytime
• Printout with all important data: laboratory, user, date, time, serial number of the instrument and measurement data

Specifications:

Type:  DE45  DE51
Measurement range: 0-3 g/cm3  0-3 g/cm3
Accuracy: 0.00005 g/cm3  0.00002 g/cm3
Temperature control:  yes  yes
Temperature compensation yes yes
Temperature range 4-90 C 4-70 C
39-194 F 39-158 F
Viscosity correction:  yes yes
Sample volume  1.2 ml   1.2 ml
Typical measuring time: 60 sec 60 sec
Sampling pump:  Option  Option
Sample changer: Option  Option
Density standards 5 certified water  (NIST traceable)

:

RETURN

Density Meter, Bench, Digital, Mettler-Toledo, Accessories

 Click on the picture for a larger view
Plastic Syringe 10ml 100/pk
T-11-456 Silica Gel, 500 g
T-11-457  In-Use Cover for Keypad 3/pk
T-11-458  Cable between RE/DE meters and GA42 printer
T-11-460  Dessicator
T-11-461  Rubber Splash Guard F/Sample Inlet
T-11-462 Tube Nozzle Special, use w/T-11-463
T-11-463 Joint with Thread
T-11-464  DE Table Editor Card
T-11-465  Memory Card-Blank, user Table
T-11-467  PC Software for Data Transfer
T-11-468  Tube Nozzle, Teflon
T-11-469 Sampling/Drain Tube, 2 Piece
T-11-470 Joint for Sampling/Drain Tube, Tef
T-11-471  Exhaust Tube, 1m
T-11-472  ASU-DE sampling pump for DE45/51
T-11-473  Purge pump
T-11-473  Beverage syrup density standard, 8 ml vial
T-11-477  Water density standard, 8 ml vial

RETURN

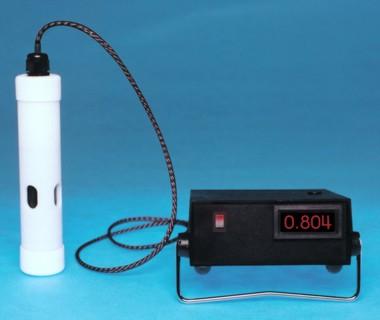

Density Meter, Production and Remote

 Click on the picture for a larger view
T-05-900  Unit, complete
T-05-925  Transducer only
The Sundial Analytics Digital Density Meter does real-time, continuous monitoring of liquid density (specific gravity) in the laboratory, on the factory floor and at inaccessible remote locations. It can be configured to provide analog outputs for process control and RS232 communication capability for recording measurements.

Specifications:

• Measures density in specific gravity units (gms/cm^3) or other units (brix, baume, api) in a range from .5 to 1.2 with an accuracy of +/- .0005.
• Can be battery operated for field operation at waste sites, tank farms, out on a lake or deep into the ocean.
• Can be operated in situ in a process control operation to monitor and record liquid density during a blending or mixing process for the beverage, food, chemical, petroleum and electro-plating industries.
• Can be used to determine the concentration mix (by volume or mass) of a blend.
• Can be used as a gauge in storage tanks to determine the interface depth between two immiscible liquids such as alcohol and water.
• Can be used in a laboratory to monitor and record liquid density during a process controlled temperature or pressure cycle operation.
• The density range of unit can be designed for custom operation.
• The operating temperature range is from –40 degrees F to 200 degrees F.
• The unit is easy to disassemble for cleaning.

Principle of Operation:

The transducer head unit is 8 inches long by 1.7 inches in diameter. The wetted parts can be made from Teflon, Delrin, Nitrophyl, or stainless steel and the springs can be made from BeCu or stainless steel. Four foot standard extension leads provide the connection from the transducer to the electronics module. Custom extension lengths are available up to 50 ft.

The electronics module, 120 VAC or battery operated, provides a panel meter readout of the liquid density in specific gravity units (sgu), brix, baume, pti and can be configured to provide an analog output voltage or RS232 serial port connection to a computer.

The unit operates on spring-mass principle with a patented Hall sensor detector. The transducer head contains a mathematically characterized spring-float system. When the head unit is immersed vertically in a liquid, the float moves vertically (+/- .3 inches) in accordance with the density of the liquid. The position of the float controls the position of a permanent magnet whose displacement is sensed by a concentric array of Hall-effect linear displacement sensors. The output signals of the sensors are combined in a dedicated electronics module that provides an output voltage whose magnitude is a direct measure of the density of the liquid. The transducer provides an output voltage 0 to 5 VDC. Operation of the device is independent of the depth in the liquid.

An optional board provides an analog output of 0 - 5 VDC or 4 - 20 MA for process control. An additional optional add-on provides for data acquisition module with a serial port interface and recording software.

Note: For customers that already have process control instrumentation in place and have no need for the electronics module, the transducer head unit alone can be purchased separately. The head unit operates on 5 vdc and provides a 0 - 5 VDC linear output that is proportional to the liquid density.

Total unit weight 5 pounds.

One-year warranty.
US Patent # 6418788

RETURN

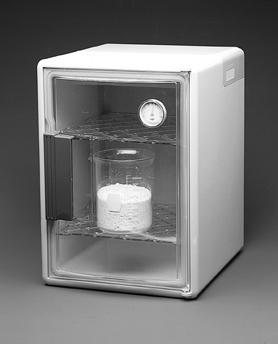

Desiccator, Automatic, Electrical, Non-Vacuum

 Click on the picture for a larger view
T-11-308  Unit, complete
An electrical desiccant control lowers the relative humidity to between 20% and 30% in six hours. The unit circulates air through a permanent desiccant and dehumidification is monitored by a hygrometer dial in the door. The insulated cabinet is molded from ABS plastic and is supplied with three shelves.

Specifications:
• Dimensions: 12.5" x 14" x 17"
• Electrical: 110 VAC, 60 hz, 10 watts
• Weight: 12 lbs

RETURN

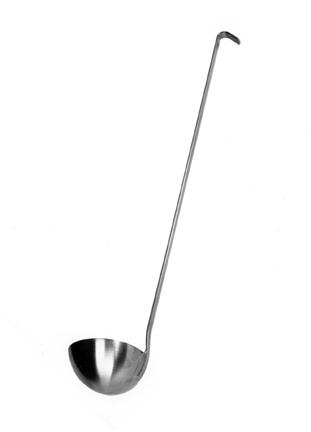

Dipper, Long Handle, Sanitary

 Click on the picture for a larger view
T-21-302 1 oz  10" handle  round bottom
T-21-303 2 oz  10" handle round bottom
T-21-304 4 oz  13" handle round bottom
T-21-306 6 oz  13" handle round bottom
T-21-307 8 oz  13" handle round bottom
T-21-308 12 oz  15" handle round bottom $17.05
T-21-309 24 oz  18" handle round bottom $33.95
T-21-310 72 oz  18" handle round bottom $56.90
T-21-311 1 oz  24" handle round bottom $17.25
T-21-312 2 oz  24" handle round bottom $19.25
T-21-313 4 oz  24" handle round bottom $24.40
T-21-314 6 oz  24" handle round bottom $25.80
T-21-315 8 oz  24" handle round bottom $31.40
T-21-316 16 oz  24" handle flat bottom $87.95
T-21-332 32 oz  24" handle flat bottom

RETURN

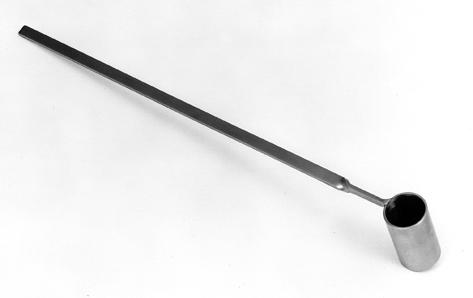

Dipper, Sampling, Bacteriological

 Click on the picture for a larger view
T-21-331 1 ml
T-21-339 2 ml
T-21-335 5 ml
T-21-336 10 ml
T-21-333 25 ml
T-21-334 50 ml
T-21-330  Set (6): 1, 2, 5, 10, 25 and 50 ml
All stainless steel with 12" long handles.

RETURN

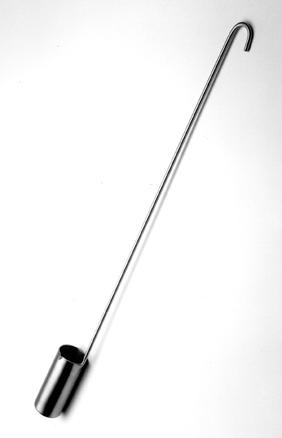

Dipper, Sampling, Long Handle, Sanitary

 Click on the picture for a larger view
T-21-321 2 oz capacity, 1-5/16" dia
T-21-322 3 oz capacity, 1-1/2" dia
T-21-323 4 oz capacity, 2" dia
T-21-317 10 cc capacity, 1" dia
T-21-319 20 cc capacity, 1" dia
T-21-320  30 cc capacity, 1" dia
All stainless steel with 28" long handles. All units fit through the standard 2" drum bung holes. Handles can be extended. Please inquire.

RETURN

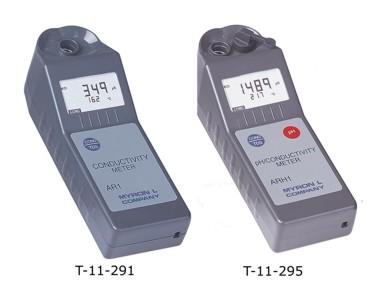

Dissolved Solids Meter, Conductivity, pH and Temperature, Portable, Myron L TechPro

 Click on the picture for a larger view

T-11-291    Conductivity/TDS only
T-11-295 pH/Conductivity/TDS/Temperature

Total dissolved solids, conductivity, pH and temperature all in one battery-powered portable unit.
A second model provides for total dissolved solids and conductivity only.

• No cables or separate probes to worry about and maintain.
• The rugged, water resistant case protects the internal components and fits comfortably in your hand.
• An automatic shut-off extends the battery life.
• Highly stable circuitry and fully temperature compensated.
• Rinse and fill the cup. Push the button and get an instant measurement.

RETURN

Dissolved Solids Meter, Myron L, Calibration Solutions

 Click on the picture for a larger view
T-11-280  30 ppm/47 microhms
T-11-281  150 ppm/228 microhms
T-11-282  300 ppm/447 microhms
T-11-283 1,500 ppm/2070 microhms
T-11-284 3,000 ppm/3920 microhms
Available in one quart containers.

RETURN

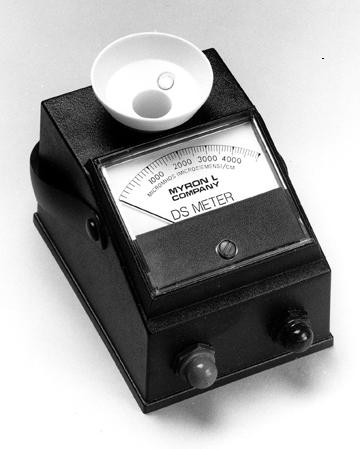

Dissolved Solids Meter, Single Range, Myron L

 Click on the picture for a larger view
T-11-220 0 - 500 ppm, 10 ppm increments
T-11-222 0 - 1,250 ppm, 25 ppm increments
T-11-224 0 - 2,500 ppm, 50 ppm increments
T-11-221 0 - 5,000 ppm, 100 ppm increments
T-11-223 0 - 10,000 ppm, 200 ppm increments
T-11-242 0 - 50 microhms
T-11-243 0 - 500 microhms
T-11-244 0 - 2,500 microhms
T-11-245 0 - 5,000 microhms
T-11-246 0 - 10,000 microhms
T-11-263 0 - 5,000 ppm w/pH
Reads directly in parts per million and is temperature compensated. It is accurate and automatic from 50 to 160 deg F. Operated by 9V battery, included.

Calibration solutions are available. See Dissolved Solids Meter, Calibration Solutions.

RETURN

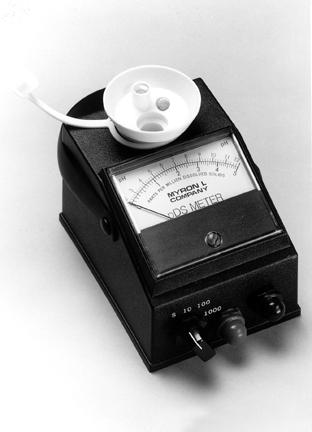

Dissolved Solids Meter, Triple Range, Myron L

 Click on the picture for a larger view
T-11-231 0 - 25, 0 - 250, 0 - 2500 ppm in .5, 5, 50 ppm increments
T-11-230  0 - 50, 0 - 500, 0 - 5000 ppm in 1, 10, 100 ppm increments

T-11-262 		 3 Range w/pH: 0 - 50, 500, 5000 ppm and 2 - 12 pH
Reads directly in parts per million and is temperature compensated. It is accurate and fully automatic between 50 and 160 deg F. Operated by 9V battery, included.
Calibration solutions are available. See Dissolved Solids Meter, Calibration Solutions.

RETURN

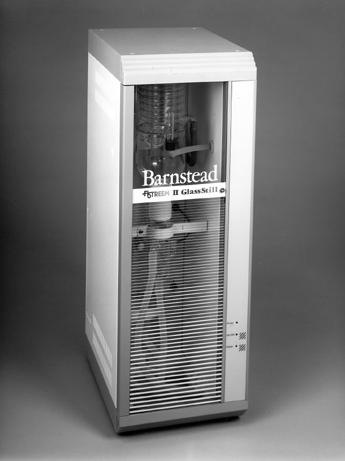

Distilling Apparatus, Glass

 Click on the picture for a larger view
T-11-111 2 ltr/hr, 120 VAC, 50/60 hz, (240 VAC available on request)
T-11-114 4 ltr/hr, 240 VAC, 50/60 hz
T-11-118 8 ltr/hr, 240 VAC, 50/60 hz
Provides high purity water that is free from particulates, suspended solids and pyrogens. Automatic control allows overnight operation with complete safety. Connects to tap water feed and may be bench or wall mounted. High temperature cut-off automatically shuts off still if drain is left open or water flow is interrupted. Transparent safety cover allows viewing of operation.

RETURN

Door Sweep, Metal, 5 ft.
T-22-337  Chase - Metal Door Sweep, 5 ft.

RETURN

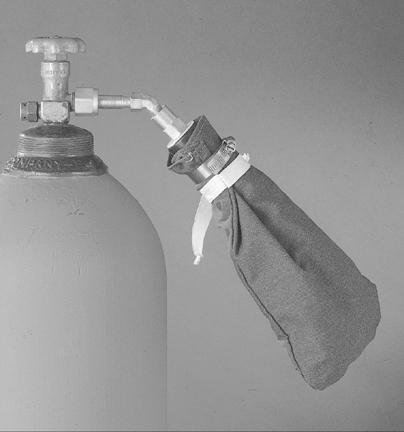

Dry Ice Maker

 Click on the picture for a larger view
T-03-061  Frigimat Jr. Dry Ice Maker
T-03-065 Extra Bags for Dry Ice Maker 3/PK

Sometimes you need a little dry ice for testing purpose (e.g. odor and taste). The Frigimat Junior Dry Ice Maker is fast and convenient. Simply screw the unit's brass nozzle onto any LCO2 cylinder equipped with a dip tube and open the cylinder valve. The LCO2 expands into the heavy cloth bag to create dry ice/flakes. Close the valve, remove the bag and empty the contents. Makes 1.7 lbs of dry ice.

See also Carbonation Analysis, Snow Making Kit.

RETURN

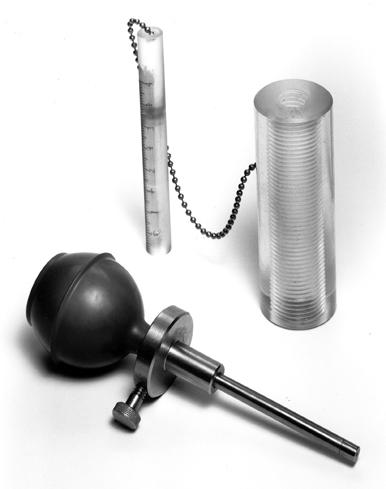

Fill Height Gauge, Syringe Style, Beverage

 Click on the picture for a larger view
T-14-140 Fill Height Syringe Unit
T-14-141 Replacement bulb
T-14-142 Replacement collar
T-14-143 Replacement tube
For checking content of bottle using the fill height method accurately and quickly. Bottles not within tolerance will significantly affect the content of finished products. Calibrated in 1/32"divisions. Comes complete with Bottle Capacity Test Procedure.

RETURN

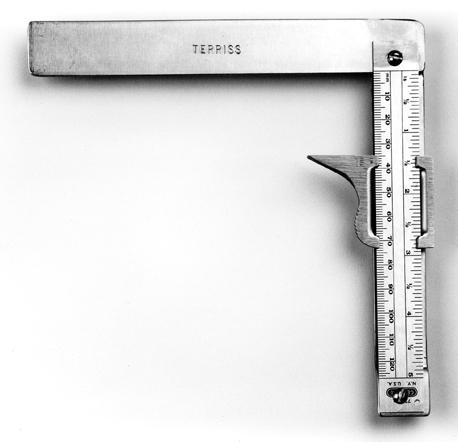

Fill Height Gauge, Universal, Beverage

 Click on the picture for a larger view
T-14-089  Dual scale gauge, mm/in
Dual scale, calibrated in millimeters and inches, designed for all size bottles. Gauge may be preset in inches or millimeters to check fill height level on production line or may be used to measure exact fill point of bottle and then compared to standard. Rule may be raised or lowered to compensate for the thickness of various crowns. Size: 6" X 7".

RETURN

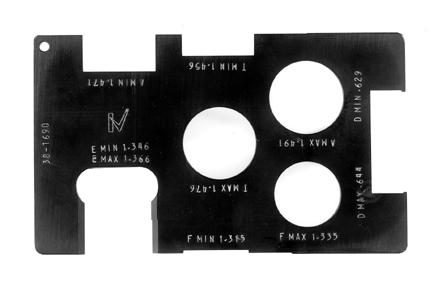

Finish Gauge, Combination

 Click on the picture for a larger view
T-14-121 28 mm, 2 ltr pet bottle (28-969-1716)
T-14-122 38 mm, glass bottle (38-1663)
T-14-123 8 mm, 1 and 2 ltr pet bottle (38-1690)
T-14-125 28 mm, glass bottle (28-1650-RE)
T-14-127 28 mm, PCO Pet (28 PCO-1810)
T-14-128  28 mm, BPF PET (28BPF)
Quality control gauges for checking the threaded tops of glass and plastic containers. Checks the threads, outside diameter, spacing, etc.
Other gauges available. Please furnish bottle finish number.

RETURN

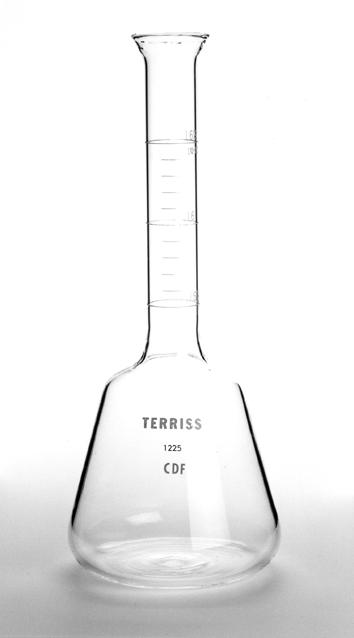

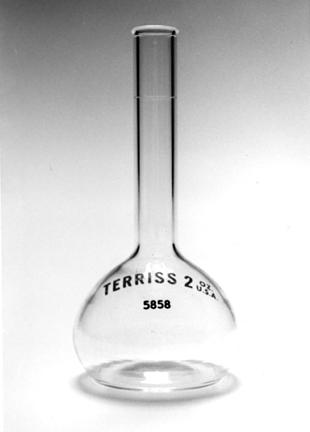

Flask, Control Drink, Certified, "TO CONTAIN"

 Click on the picture for a larger view
T-09-101 1 oz w/dropper
T-09-102 1-5/7 oz w/dropper
T-09-103  2 oz w/dropper
T-09-104 3 oz w/dropper
T-09-105 6.5 oz, calibrated 6 - 7 oz
T-09-106 7 oz, calibrated 6.5 - 7.5 oz
T-09-107 8 oz. calibrated 7.5 - 8.5 oz
T-09-108  10 oz, calibrated 9.5 - 10.5 oz
T-09-109  11 oz, calibrated 10.5 - 11.5 oz
T-09-110 12 oz, calibrated 11.5 - 12.5 oz
T-09-111 13 oz, calibrated 12.5 - 13.5 oz
T-09-112 14 oz, calibrated 13.5 - 14.5 oz
T-09-113  16 oz, calibrated 15.5 - 16.5 oz
T-09-126 20 oz, calibrated 19.5 - 20.5 oz
T-09-114 26 oz, calibrated 25.5 - 26.5 oz
T-09-115 28 oz, calibrated 27.5 - 28.5 oz
T-09-116 32 oz, calibrated 31.5 - 32.5 oz
T-09-117 48 oz, calibrated 47.5 - 48.5 oz
T-09-118 64 oz, calibrated 63.5 - 64.5 oz
T-09-119  67.6 oz, calibrated 67 - 68 oz
T-09-120 128 oz, calibrated 127.5 - 128.5
T-09-121 300 ml, calibrated 285 - 315 ml
T-09-122 500 ml, calibrated 485 - 515 ml
T-09-123  1 ltr, calibrated 985 - 1,015 ml
T-09-124  2 ltr, calibrated 1,985 - 2,015 ml
T-09-125 3 ltr, calibrated 2,985 - 3,015 m

These control drink flasks are designed to equate, in terms of capacity, an empty, dry container. The flasks, when properly filled, will hold the exact same content as a bottle and can be used to check proportioning accuracy. The contents can also be used to check brix, color, acidity and other comparative values. Serially numbered with "certified" lab certificates enclosed. Other sizes available.

Terriss custom manufactures a wide variety of special glassware. See Glassware, Laboratory, Custom, Certified.

All flasks are Pyrex and are individually calibrated with water "TO CONTAIN", using standards certified by the National Institute of Science and Technology to assure maximum accuracy and maintain tolerances. Calibrated in 1/10 oz or 1 ml divisions. All flasks 6 oz and above are accurate to 1/6 of 1%.

User Instructions

RETURN

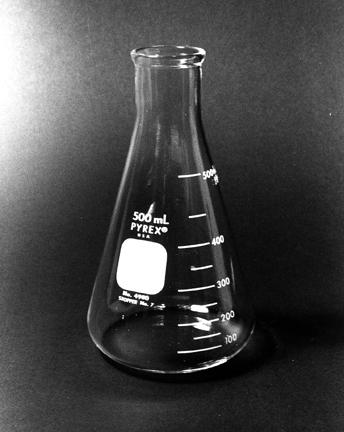

Flask, Erlenmeyer, Glass, Pyrex

 Click on the picture for a larger view
T-09-161 50 ml
T-09-162 50 ml, 12/pk
T-09-160  125 ml
T-09-163 125 ml, 12/pk
T-09-164  250 ml
T-09-165  250 ml, 12/pk
T-09-166 500 ml
T-09-167  500 ml, 6/pk
T-09-168 1,000 ml
T-09-169  1,000 ml, 6/pk
T-09-170  2,000 ml
T-09-171  2,000 ml, 6/pk
Other sizes and types available. Please inquire. Stoppers are sold separately. See Stopper, Rubber.

RETURN

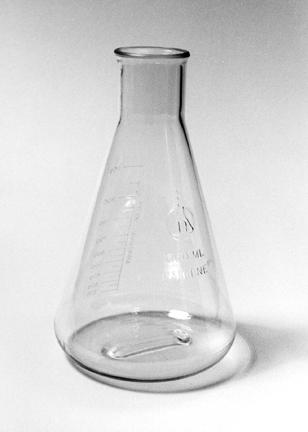

Flask, Erlenmeyer, Plastic, Polycarbonate (Clear)

 Click on the picture for a larger view
T-09-180 50 ml
T-09-186 50 ml, 12/pk
T-09-181  125 ml
T-09-187 125 ml, 12/pk
T-09-182  250 ml
T-09-188  250 ml, 12/pk
T-09-183 500 ml
T-09-189  500 ml, 6/pk
T-09-184 1,000 ml
T-09-172  1,000 ml, 6/pk
T-09-185  2,000 ml
T-09-173  2,000 ml, 6/pk
Other sizes and types available. Stoppers are sold separately. See Stopper, Rubber.

RETURN

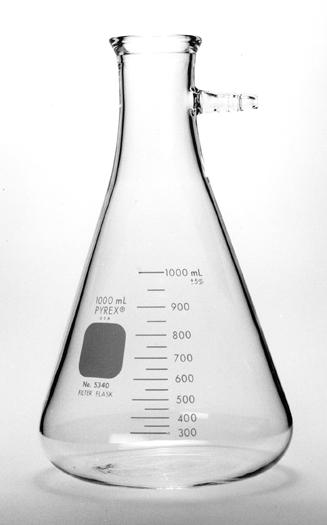

Flask, Filtering, Pyrex Glass, With Side Tubulation

 Click on the picture for a larger view
T-09-296 250 ml (order stopper #6)
T-09-297 500 ml (order stopper #7)
T-09-298 1000 ml (order stopper #8)
T-09-299 2000 ml (order stopper #9)
T-09-300 4000 ml (order stopper #12
 Stoppers Sold Separately. See Stopper, Rubber.

RETURN

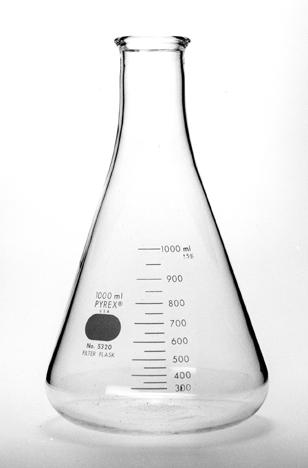

Flask, Filtering, Pyrex Glass, Without Side Tubulation

Click on the picture for a larger view
T-09-291 250 ml (order stopper #6)
T-09-292 500 ml (order stopper #7)
T-09-293 1000 ml (order stopper #8)
T-09-294 2000 ml (order stopper #9)
T-09-295 4000 ml (order stopper #12)
Stoppers sold Separately. See Stopper, Rubber.

RETURN

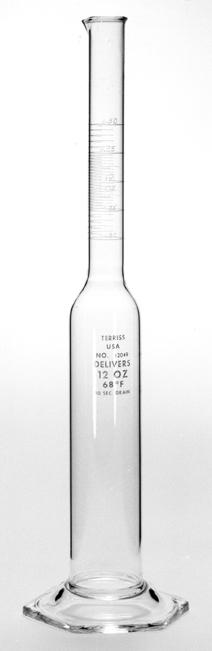

Flask, Volumetric, Glass, "TO DELIVER"

 Click on the picture for a larger view
T-09-261 10 oz, 9.5 to 10.5 range, 1/16 oz divisions
T-09-262 12 oz, 11.5 to 12.5 range, 1/16 oz divisions
T-09-263 16 oz, 15.5 to 16.5 range, 1/16 oz divisions
T-09-264  28 oz, 27.5 to 28.5 range, 1/8 oz divisions
T-09-265 32 oz, 31.5 to 32.5 range, 1/8 oz divisions
T-09-266 64 oz, 63.5 to 64.5 range, 1/8 oz divisions
T-09-267 0.5 ltr, 490 to 510 range, 1/2 ml divisions
T-09-268 1 ltr, 985 to 1,015 range, 1 ml divisions
T-09-269 2 ltr, 1,975 to 2,025 range, 1 ml divisions
T-09-270  3 ltr, 2,975 to 3,025 range, 1 ml divisions
Calibrated "TO DELIVER" with 10 second drain. Highly accurate; serially numbered; each supplied with a "certified" lab certificate. Hex base.

RETURN

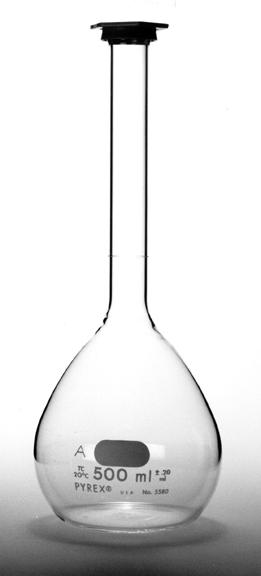

Flask, Volumetric, Glass, "TO CONTAIN"

 Click on the picture for a larger view
T-09-240  5 ml, 0.02 ml accuracy
T-09-241 10 ml, 0.02 ml accuracy
T-09-242  25 ml, 0.03 ml accuracy
T-09-251  30 ml, 0.02 ml accuracy
T-09-243  50 ml, 0.05 ml accuracy
T-09-244  100 ml, 0.08 ml accuracy
T-09-245  200 ml, 0.10 ml accuracy
T-09-246  250 ml, 0.12 ml accuracy $
T-09-247  500 ml, 0.20 ml accuracy
T-09-258  1,000 ml, 0.30 ml accuracy
T-09-259  2,000 ml, 0.50 ml accuracy
T-09-250  3,000 ml, 5.0 ml accuracy
• Standardized at 20 deg. C
• One line calibration
• Class "A" accuracy
• Pyrex glassware with high tolerances
• Covers included.

RETURN

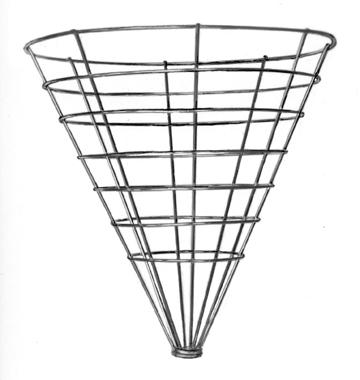

Funnel Cone, Wire

 Click on the picture for a larger view
T-21-214  11-1/4" dia x 11-1/4" deep
The wire cone is placed between the solid funnel sides and the filtering media to expose more filtration area, thus speeding up the process. It fits all funnels down to 7" diameter. 300 series stainless steel with each joint welded and polished.

RETURN

Funnel, Buchner, Pyrex

 Click on the picture for a larger view
T-09-301 30 ml
T-09-302 60 ml
T-09-303 150 ml
T-09-304 600 ml
T-09-305 2000 ml

The funnel includes a medium porosity fritted disk. Other sizes and porosities are available.

RETURN

Funnel, Filter Paper

 Click on the picture for a larger view
T-09-395 Fluted, 20", 50/box
T-09-341  Fluted, 24 cm, 100/box
T-09-342 Fluted, 32 cm, 100/box
T-09-343 Fluted, 50 cm, 100/box
Provides 24 micron retention.

RETURN

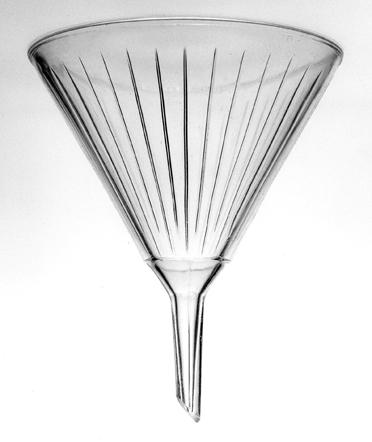

Funnel, Glass, Pyrex

 Click on the picture for a larger view
T-09-327  1 pt, (use filter paper 181-24 cm)
T-09-328 1 qt, (use filter paper 181-32 cm)
T-09-329  2 qt, (use filter paper 181-32 cm)
T-09-330  1 gal, (use filter paper 181-50 cm)
Fluted for easy draining.

RETURN

Funnel, Seamless, Stainless Steel

 Click on the picture for a larger view
T-21-183  3" dia, 5 oz rated capacity, 2-1/4 oz plugged capacity
T-21-182 4" dia,   10 oz rated capacity, 6 oz plugged capacity
T-21-181  5" dia, 20 oz rated capacity, 13 oz plugged capacity
T-21-180  6" dia,  1 qt rated capacity, 22 oz plugged capacity
T-21-179  7" dia, 2 qt rated capacity, 1 qt plugged capacity
T-21-178 8" dia, 4 qt rated capacity, 2 qt plugged capacity
T-21-210  10" dia,  8 qt rated capacity, 4 qt plugged capacity
T-21-213 10" dia, T-316 ss
T-21-212 12" dia, 12 qt rated capacity, 6 qt plugged capacity
T-21-211 12" dia, T-316 ss
 Sanitary design, polished inside and outside, vented, with hanging loop. T-304 stainless steel unless otherwise noted.

RETURN

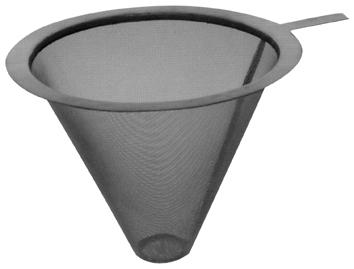

Funnel, Strainer/Sieve, Mesh

 Click on the picture for a larger view
T-21-555  Unit, complete, 60 mesh
Type 304 stainless steel. Available in six stock mesh sizes: 20, 30, 40, 50 and 60. Other mesh sizes available on request. The standard unit is 12" dia by 11" deep and fits the T-21-215 funnel. For other sizes please inquire.
