Quality Testing Equipment

Processing equipment, laboratory supplies and instrumentation for the soft drink, food, chemical, pharmaceutical, water, and waste water industries.

Your product quality is our business.

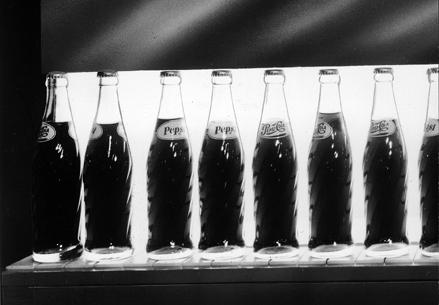

Inspection Light, Full Bottle

Click on the picture to see a larger image
T-20-201  24" length
T-20-202 36" length
T-20-203  48" length

On the production line: check fill levels, detect cracked or dirty bottles, observe foreign objects. The unit is easy to mount on conveyors with sizes to cover the full range of production speeds. Accepts bottles up to 11-1/2" high.

• Approximately 3-1/2" wide x 14-1/2" high
• Speed: 60 to 600 units per minute.

Shadows and glare are eliminated for visual inspection. The units are adjustable from half pint to one gallon bottles.

Available in 110 VAC and on request, 220 VAC.

RETURN
Inspection Light, Sodium
T-20-207   18" length
T-20-210 Replacement bulbs only

For semi-opaque brown, green or amber bottles. Sodium vapor lights are available in 18" lengths only. Overall size is approximately 19-1/2" x 14-1/2" high. Available in 110 VAC only.

RETURN
Label Dispenser, Tape, Write–On Click on the picture to see a larger image
T-10-290 Tape Dispenser
T-10-291 White Tape 3/4", 40 yds
T-10-292 White Tape, 1", 40 yds
T-10-293  Yellow Tape, 3/4", 40 yds
T-10-294  Yellow Tape, 1", 40 yds
A convenient dispenser that holds and releases tape cut to your requirements. The platform is designed to accommodate left and right hand users for writing prior to dispensing. A weighted base with non-skid pads prevents sliding or lifting. The tape must be ordered separately. Colors other then those listed are available. Please inquire.

RETURN
Laboratory Software (LIMS), Beverage, SmartLab
T-02-610  SmartLab for Windows

SmartLab is a proprietary implementation of National Instruments' LabVIEW. It is a fully integrated software package that provides data acquisition and control on the manufacturing line and in the laboratory. Easy to use, SmartLab software converts the computer into a more powerful tool for process evaluation and statistical control.

Traditionally, test data from various instruments is recorded manually. This process is slow, inefficient and prone to error. SmartLab eliminates these problems by connecting the instruments directly to the computer. Instrument test data is downloaded to the computer via RS-232 communications or a network connection, displayed on the screen and transferred to the historical database from which various statistical tests are conducted and customized reports generated.

• It's easy to use. This powerful, windows-based program contains simple, highly graphical operator interfaces and pull down menus.

• Data is automatically collected from instruments and sensors and can be tagged with sample identification with SmartIDcom.

• It vividly displays real-time data from four instruments or sensors on one screen (e.g. net contents, brix, oxygen, pressure, temperature, pH and TA.)

• Switch buttons access screens for other instruments and sensors.

• The real-time graphs automatically adjust their axes and control lines (target, upper and lower control limits) for the data displayed either through SmartIDcom or a pull down menu.

• It enables the user to isolate and evaluate the data stream of any instrument that has an RS-232 output and adapt it to the software package without any programming.

• SmartLab is supported at your site via modem. Help is only a telephone call away.

SmartLab stores test data as it is collected. It automatically records the sample tested, production line, the time and date of the test and the test value. The database, based on Microsoft Access, allows for manual data entry and editing. In addition, the program generates quick and accurate reports with SPC statistics and graphs based upon sample identification number, time and date. The operator can view single or multiple records for a specific instrument. Or, reports can be generated based upon various criteria -- product, production line, instrument, date and time.

Hardware Requirements:
PC Compatible Computer with VGA Monitor and Mouse
Pentium Processor or higher with 64 MB of RAM
MS-Windows 95/98/2000/NT

RETURN
Laboratory Testing Services, Food and Beverage Packages

We provide package testing services for the food and beverage industries. Let us know your requirements and we will be glad to quote.

In order to assist you we need the following information:
1. Type of product
2. Type of container
3. Tests required (content, container or both)
4. Number of containers and how often
5. Report form

RETURN

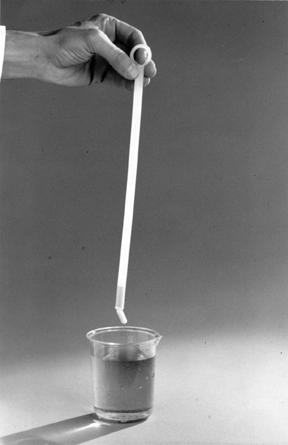

Magnetic Spin Bar Retriever Click on the picture to see a larger image
T-16-108  12" length
T-16-109  18" length

Remove magnetic stirring bars without touching or pouring out contents. Powerful magnet sealed in one end and handy hang up grip ring on other end. Polyethylene 3/8" diameter.

RETURN

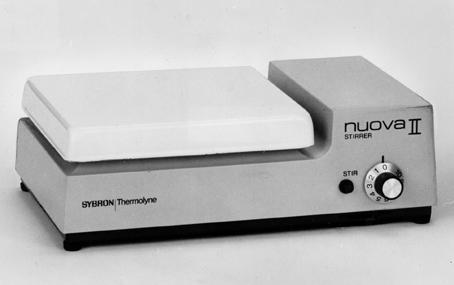

Magnetic Stirrer Click on the picture to see a larger image
T-16-100   120 VAC, 60 hz
T-16-105 240 VAC, 50 hz

• Solid state electronics for long life.
• Variable speed, 60 to 1000 rpm.
• Chemically resistant "Nucerite" coated stainless steel top plate, 7" x 7".
• Includes 1 stir bar.

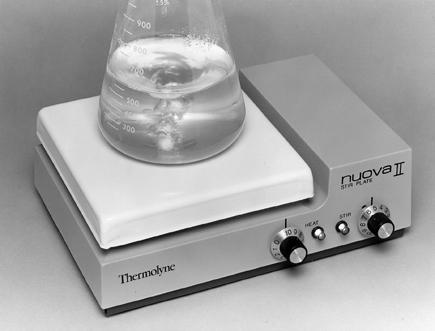

Magnetic Stirrer with Hotplate Click on the picture to see a larger image
T-16-106  120 VAC, 60 hz
T-16-137 240 VAC, 50 hz

Stirrer and hot plate with operating temperature up to 371 deg C. Reaches maximum temperature in just 8 minutes. Embedded heating element assures even heat distribution with +/- 5 deg. C accuracy.

RETURN

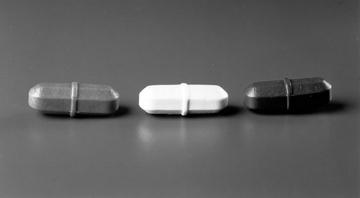

Magnetic Stirrer Spin Bar Click on the picture to see a larger image
T-16-101 1" x 5/16", white
T-16-103 1-1/2" x 5/16", white
T-16-107 2" x 5/16", white
T-16-102 Set of 6: two each of 1", 1-1/2"and 2" x 5/16"
T-16-104 Color coded set of 6: two each of yellow, red and blue, all 1" x 5/16"

Teflon coated stirring bars available in sets or individually. Other sizes are available. Please inquire.

RETURN

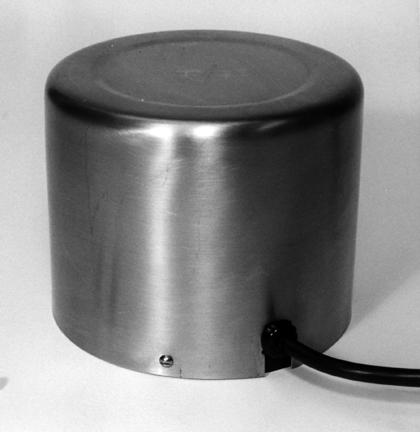

Magnetic Stirrer, High Power Click on the picture to see a larger image
T-02-340  Low speed, high torque

Terriss magnetic stirrers are unique to the industry. Enclosed in a stainless steel housing, they run at 60 to 120 rpm. They utilize rare earth magnets in both the stirrer and stir bar for close, powerful coupling. Higher speeds are available, however, there is some loss of torque.

RETURN

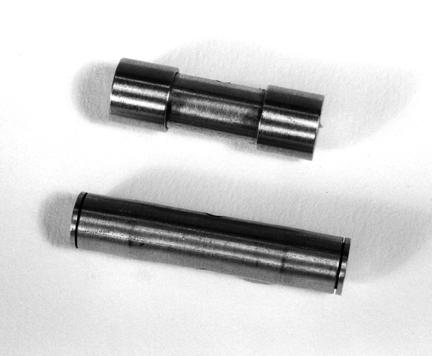

Magnetic Stirrer, High Power, Spin Bar Click on the picture to see a larger image
T-02-341

Terriss high power stir bars incorporate rare earth magnets encased in a stainless steel shell. They cannot be used with a standard magnetic stirrer as they will "pull" all of the magnetic power out of the stirrer.

RETURN

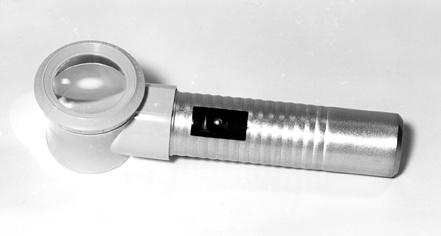

Magnifier, Illuminated Click on the picture to see a larger image
T-10-197 5X power w/batteries (2" field of vision)
T-10-198  7X power w/batteries (1" field of vision)

Focus is automatic for ease in examining filters and membranes after incubation. The light, which includes 2 "D" size batteries, provides bright and clear illumination.

RETURN

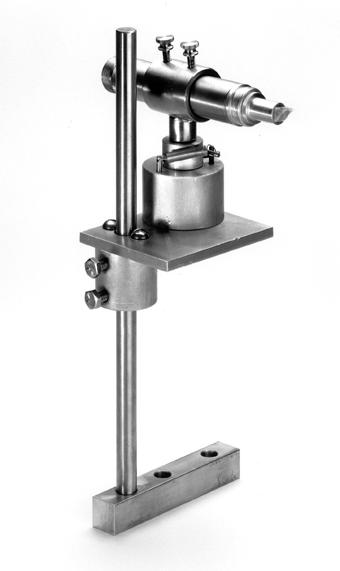

Marker, Crown Click on the picture to see a larger image
T-18-108  Crown marking pen with reservoir
T-18-106 Pen holder for mounting on conveyor
T-18-109 Vertical Mounting Adapter
T-18-111 Solvent
T-18-130 Felt Tip for Crown Marking Pen
T-18-131  Barrel Reservoir for Pen

A versatile and inexpensive coder for mounting on conveyor lines. The pen has a stainless steel body with aluminum cap and tip which provides a 1/4" wide mark.

Features:
• Adjustments for height (up to 14") and reach
• Horizontal mounting for side coding (standard)
• Vertical mounting adapter available for top coding
• Variations of mark length (from dot to continuous stripe)
• Variations of mark width

For best results and distinctive coloring, it is recommended that a separate pen be used for each color.
For marking inks see Marker, Crown, Ink Only.

RETURN
Marker, Crown, Ink Only
T-18-120  Red, qt
T-18-121  Green, qt
T-18-122 Blue, qt
T-18-123  Orange, qt
T-18-124  Brown, qt
T-18-125 Yellow, qt
T-18-126  Black, qt

RETURN

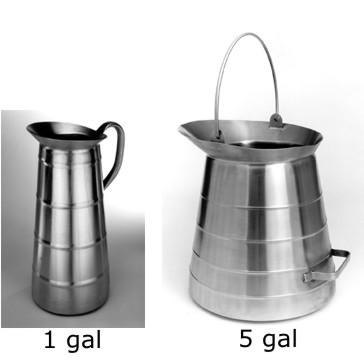

Measure, Graduated, Heavy Duty, Stainless Steel Click on the picture to see a larger image
T-21-301  1 gal, 1 qt increments
T-21-305  5 gal, 1 gal increments

All seamless welded construction, T-304 stainless steel, polished inside and out, sanitary, heavy duty.

RETURN

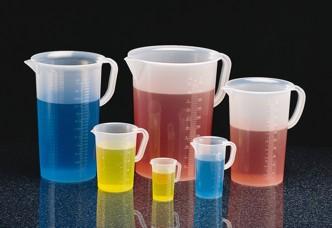

Measure, Graduated, w/Handle, Polypropylene Click on the picture to see a larger image
T-21-185   500 ml, 10 ml div
T-21-186  1,000 ml, 50 ml div
T-21-187 2,000 ml, 100 ml div
T-21-188  3,000 ml, 100 ml div

These measures are chemically resistant, shatter proof and generally ideal for laboratory use. They can be used with wet or dry materials. Metric graduations are molded on the outside wall.

RETURN

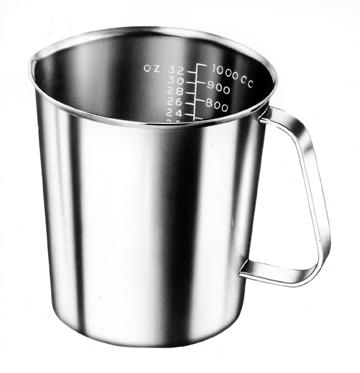

Measure, Graduated, w/Handle, Stainless Steel Click on the picture to see a larger image
T-21-163  16 oz/500 cc (2 oz and 50 cc increments)
T-21-164 32 oz/1000 cc (2 oz and 100 cc increments)
T-21-165  64 oz/2000 cc (4 oz and 100 cc increments)
T-21-166  128 oz/4000 cc (4 oz and 200 cc increments)
T-21-184  128 oz/4000 cc (T-316 SS)

Polished inside and outside. Marked off permanently in ounces and cubic centimeters. Seamless, T-304 stainless steel. The T-21-166 is also available in T-316 stainless steel (as T-21-184).

RETURN
Measure, Graduated, wo/Handle, Stainless Steel Click on the picture to see a larger image
T-21-168  32 oz/1000 cc

Polished inside and outside. Marked off permanently in ounces and cubic centimeters. All T-304 stainless steel, seamless construction.

RETURN

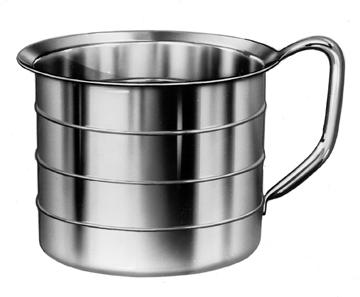

Measure, Utility, w/Handle, Stainless Steel Click on the picture to see a larger image
T-21-162  1 gal

One gallon capacity with 1 quart graduated markings. 7-1/4" diameter x 6-1/8" deep. T-304 stainless steel, seamless construction.

RETURN
Meter and Electrode Click on the picture to see a larger image

Meters and electrodes are catagorized under the type of test required.

RETURN
Microbiological Analysis Click on the picture to see a larger image
T-10-400 55-Plus Monitor, 0.45 um, white grid, 50/pk
T-10-401 55-Plus Monitor, 0.45 um, black grid, 50/pk
T-10-402 55-Plus Monitor, 0.8 um, black grid, 50/pk
T-10-403 MGreen Yeast and Mold Broth, 2 ml ampoules, 50/pk
T-10-404 Total Count Standard Plate, 2 ml ampoules, 50/pk
T-10-405 Endo-Total Coliform Media, 2 ml ampoules, 24/pk
T-10-406 Yeast and Mold Swab Test Kit, 25/box
T-10-407 otal Count Swab Test Kit, 25/box
T-10-408 Coli-Count Swab Test Kit, 25/box
T-10-409 HPC Total Count Swab Test Kit, 25/box
T-10-410 Sterivex-GS Filter, 0.22 um, without Bell, 15/pk
T-10-411 Sterivex-GS Filter, 0.22 um, with Bell, 10/pk
T-10-412 Millex-GS Filter, 0.22 um, 25 mm, 50/pk
T-10-413 Sterifil Filter Holder, 47 mm
T-10-414 Glass Fiber Filter, 47 mm, 100/pk
T-10-415 Glass Filter Holder, 47 mm, includes funnel, base, stopper and clamp
T-10-416 Filter, 0.45 micron, gridded, 47 mm, 100/pk
T-10-417 Petri dish with pad, 100/pk
T-10-418 Petri dish only, 47 mm, 100/pk
T-10-419 Stainless steel forceps
T-10-420 Silicone tubing, 3/16" ID x 4.5' length
T-10-421 Plastic syringe, 50 ml
T-10-422 #8 stopper, 3/8" hole, 5/pk
T-10-423 Manifold, 3 place, PVC
T-10-424 Ampoule breaker (2 ml ampoules)
T-10-425 ESP sanitary sampling valve, 1/4" NPT screw-in type

                                                  Click on the picture for a larger view

RETURN

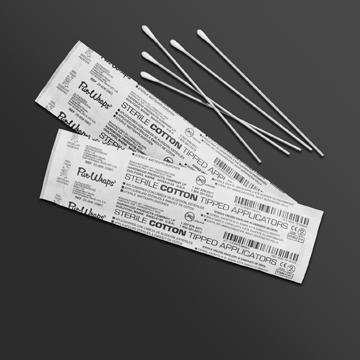

Microbiological Applicators, Disposable Click on the picture to see a larger image
T-10-275 Sterile, cotton-tipped, 100/pk
T-10-278 Sterile, cotton-tipped, 1000/pk
T-10-275  Sterile, polyester fiber-tipped, 1000/pk

Wooden applicators, 6" long x 1/12" diameter. Each is individually wrapped.

RETURN

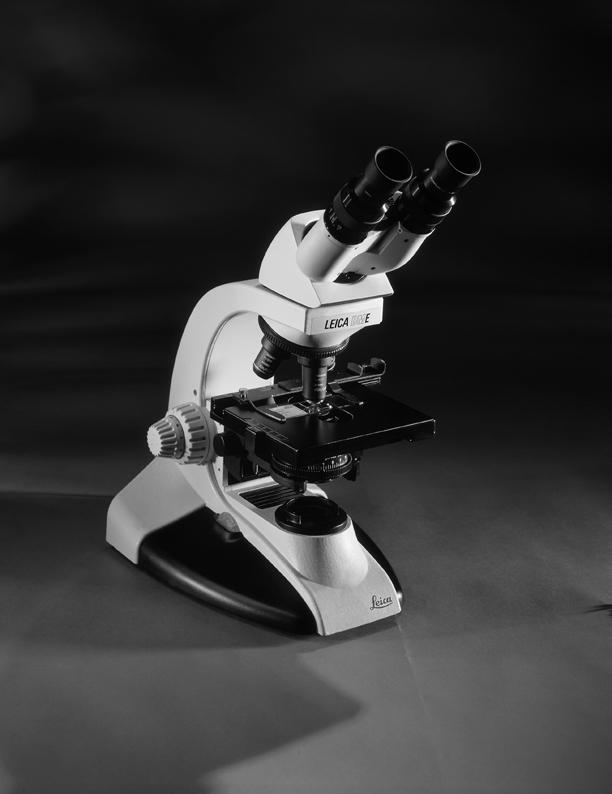

Microscope, Leica Click on the picture to see a larger image
T-13-411  Unit, complete

The DM-E model provides an expanded 18 mm field of view. Plan achromat objectives are parfocal and parcentered at all IPD settings. Infinity corrected optics provide field flatness, color accuracy and superb specimen definition. It has a 12 volt, 20 watt halogen illuminator with built-in reflector. Binocular 4X, 10X, 40X and 100X. Includes 10X eyepiece. 115/230 VAC. Other models and features are available. Please inquire.

RETURN

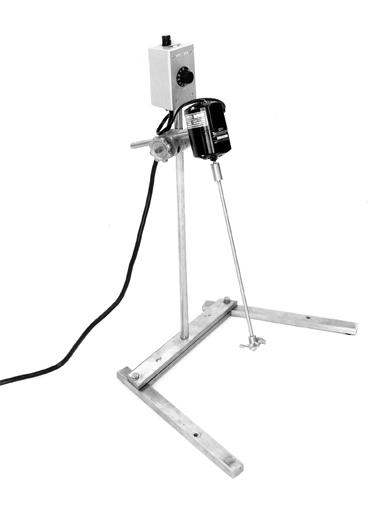

Mixer, Laboratory Click on the picture to see a larger image
T-16-135  Unit, complete

This unit comes with a 2" propeller. The shaft is 1/4" x 15" long. It has a 1/20 hp universal motor rated at 5000 rpm. Its capacity is 5 gallons. The overall height is 24".

Features:
• Angle adustment.
• Speed controller and timer.
• Stainless steel adjustable base.
• Accommodates 18" diameter container.
• Stainless steel shaft and propellor.

User Instruction

RETURN

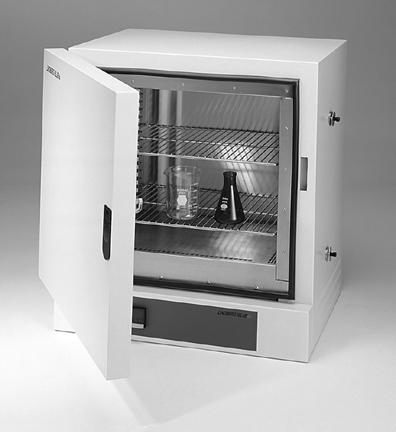

Oven, Convection, General Purpose Click on the picture to see a larger image
T-11-310 Unit, complete, 120 VAC
T-11-311 Unit, complete, 230 VAC
T-11-313  Extra shelf

These ovens feature microprocessor control, side swing doors and fiberglass insulation. Designed for glassware drying, sterilizing, baking, conditioning and quality control. Digital, single setpoint with LED display, simultaneously displays actual temperature vs. set point. Gravity air flow and heating elements circulate air uniformly within the chamber. The unit has a white painted finish on the exterior with a stainless steel interior. It is supplied with two nickel plated shelves.

Specifications:
• Chamber capacity: 3 cubic feet
• Temperature range: 40 to 260 deg C
• Heat-up rate: 5 minutes to 100 deg C, 14 minutes to 200 deg C
• Exterior dimensions: 29" wide x 22"deep x 31" high
• Interior dimensions: 19" wide x 15" deep x 18" high

RETURN

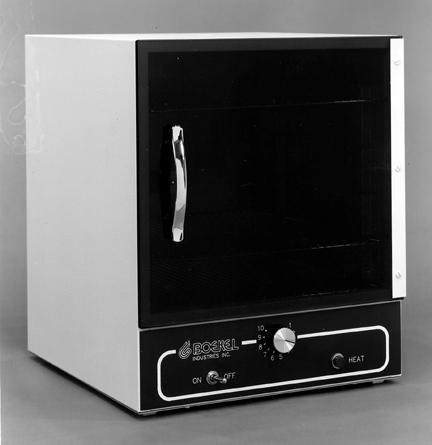

Oven, Incubating Click on the picture to see a larger image
T-11-301 Unit, complete, 115 VAC
T-11-302 Unit, complete, 220 VAC
T-11-303 Replacement thermometer
T-11-304 Replacement heating element
T-11-305 Replacement thermostat
T-11-306  Additional shelf

This economical incubator is designed for all labs which require a reliable and inexpensive method of incubating cultures, test kits, eggs and other biologicals. Temperature to 60 deg C. Supplied with thermometer and nickel plated steel bottom shelf plus one adjustable shelf. Additional shelves are available.

Interior Dimensions: 12"D x 10.5"H x 11.5"W
Exterior Dimensions: 12.8"D x 15.3"H x 12.5"W
Chamber Capacity: 0.8 cubic feet

RETURN

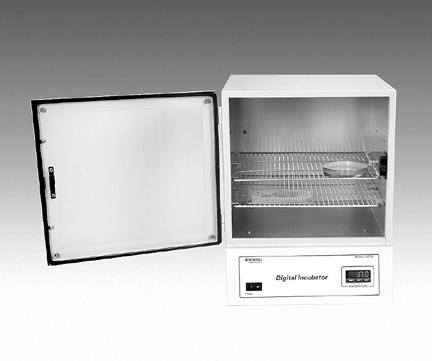

Oven, Incubating, Digital Display Click on the picture to see a larger image
T-11-300   Unit, complete, 115 VAC
T-11-307  Unit, complete, 230 VAC

This incubator utilizes advanced electronic technology to provide precise temperatures between ambient, +/-5 deg C, and 60 deg C, with a digital display indicating the precise temperature of the internal chamber. The unit has contemporary styling, smoked plexiglas door and a large 0.82 cubic feet chamber capacity. The heavy insulated stainless steel construction keeps the unit cool to the touch and easy to clean. It includes two removable stainless steel shelves.

This unit provides a way of incubating that eliminates the drudgery of traditional incubators. No more spending countless hours twisting a knob, waiting for equilibration, checking a thermometer then either opening the door for cooling, twisting the knob again and repeating this procedure for more heat, ormarking the knob scale so that you can come close to that temperature, again. Convenience in a low-cost digital incubator.

Specifications:
Exterior: 12 3/4"W x 13"D x 15 1/4"H
Chamber: 11 1/2"W x 12"D x 10 3/8"H
Temp. Range: from ambient to 60 deg. C
Uniformity: +/- 0.5 deg C
Display: 1.0 deg. C increments
Capacity: 0.8 Cubic Ft.

RETURN

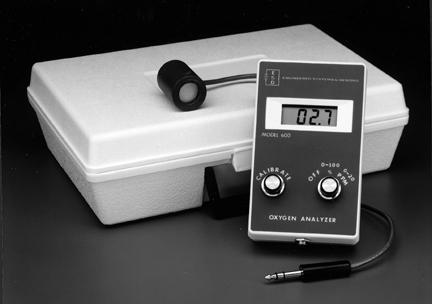

Oxygen Meter Click on the picture to see a larger image
T-11-265    Unit, complete
T-11-267 Replacement electrode w/5 ft cord

This meter measures up to 20.0 ppm dissolved oxygen in aqueous solutions and up to 100% oxygen concentration in an atmospheric environment. Calibration is performed by holding the electrode in the air and adjusting the calibration knob to read 20.9%.

The electrode is manufactured with a silver cathode and operates like a battery. It is maintenance free and under normal conditions has a twelve month life. The standard electrode is furnished with a 5 foot cord, but other lengths are available in 5 foot increments. Please specify the length required.

Specifications:
• Resolution: 0.1 ppm or % range
• Accuracy: +/- 0.25 ppm or +/- 5% concentration
• Precision: +/- 0.1 %
• Temperature compensation: automatic, 0 - 40 deg. C
• Pressure: 25 psi maximum

RETURN
