Quality Testing Equipment

Processing equipment, laboratory supplies and instrumentation for the soft drink, food, chemical, pharmaceutical, water, and waste water industries.

Your product quality is our business.

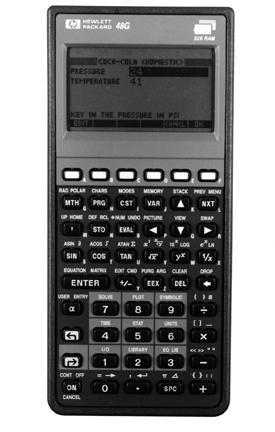

Carbonation Calculator, Electronic

 Click on the picture for a larger view
T-03-388  Model HP48G with one formula
T-03-377  Each additional formula
The HP48G Electronic Carbonation Calculator is easy to use. Simply enter the pressure and temperature then press the [OK] key and the calculated gas volumes appear on the screen. The calculator is programmed with the formula of your choice, but up to six different formulas can be installed in one unit. All calculators include both English and Metric selections.
Stock formulas include:
• Cadbury Schweppes
• Coca-Cola Domestic
• Coca-Cola International
• Pepsi-Cola Sugar
• Pepsi-Cola Diet
• Royal Crown
• American Society of Brewing Chemists (1949)

User Instructions

RETURN

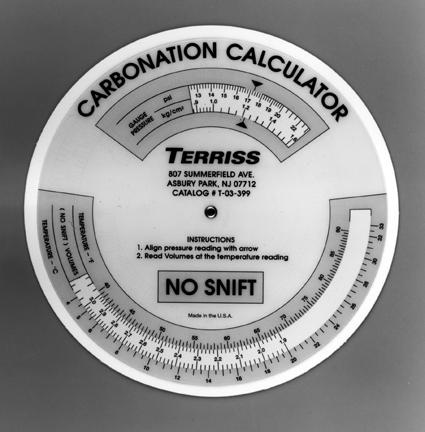

Carbonation Calculator, Manual

 Click on the picture for a larger view
T-03-399  Universal (Heath)
Use this handy plastic calculator to compute gas volumes. Fast, easy to use. Pressure is shown in both psi and kg/cm2. Temperature is in Fahrenheit and Celcius. Line up temperature and pressure, the arrow points to gas volumes. The Universal Chart has a temperature range of 30 to 90 deg F and -1 to 33 deg C. It is derived from the Heath formula. Double sided with "No Snift" on one side and "Snift" on the other side.

RETURN

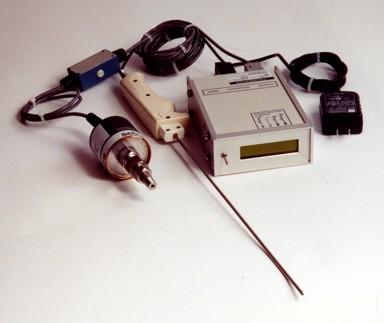

Carbonation Meter, Digital (Electronic)

 Click on the picture for a larger view
T-11-530 Carbonation meter w/electronic thermometer and pressure transducer
T-11-531 Digital Meter, only
T-02-805 Electronic thermometer, 12", w/handle
T-02-815 Pressure transducer, 0 - 100 psi
The Terriss Digital Carbonation Meter comes complete with pressure transducer, electronic thermometer and power cord. Both the pressure transducer and electronic thermometer can be calibrated to any physical standard, including a dead weight tester and a certified mercury or red spirit thermometer.
Features:
• Can be used with most piercing devices (Terriss and Zahm).
• Can be used with most carbonation measuring devices (e.g. premix, cup and tank testers).
• Quick disconnect permits the pressure transducer to be removed without tools (1/8th MNPT is standard. Other sizes are available. Please specify.)
• Range and accuracy:
Pressure, 0 – 100 psi, +/- 0.10 psi
Temperature, 34 – 95o F, +/- 0.20o F
CO2 Gas Volumes, +/- 0.01 volumes
• Available in degrees C and kg/cm2. Please specify.
• Ruggedly constructed and water resistant.
• RS232 port for connection to a computer.
• 120 VAC power is standard. 220 VAC power is available. Please specify.
One CO2 gas volumes formula is standard, but two may be specified. Please choose the formula(s) when ordering.
Coca Cola Domestic Pepsi Cola Sugar
Coca Cola International Pepsi Cola Diet
Royal Crown Cadbury Schwepps
American Society of Brewing Chemists (Beer)

RETURN

Carbonation Piercing Needle, Pierce-All

 Click on the picture for a larger view
T-02-555  Pierce-All Piercing Needle
The Pierce-All Piercing Needle provides greater thrust for those hard to pierce container closures. And, it provides a positive, pre-pierce seal for air testing.

RETURN

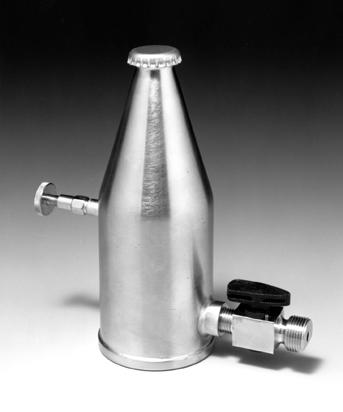

Carbonation Sample Bottle, Zahm

 Click on the picture for a larger view
T-03-020 Sample bottle, complete
T-03-021 Sample Bottle only
T-03-019 Quick-disconnect sample hose
T-03-022 Carbon dioxide gas header (for 1/4" fittings)
T-03-023 Clamping device for sample bottle
Designed to take beverage samples without introduction of extraneous air or loss of gas.

RETURN

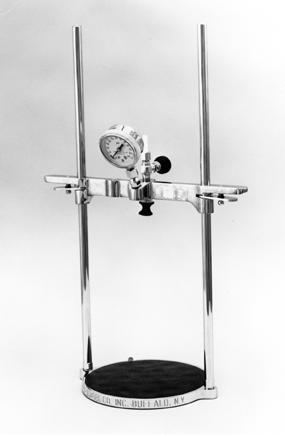

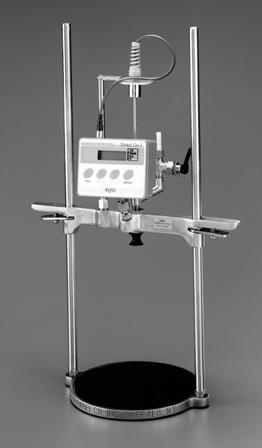

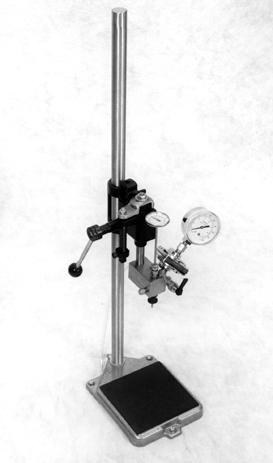

Carbonation Tester, Bench, Electronic or Manual, LS/QA

 Click on the picture for a larger view
T-03-275  Piercing device only, LS/QA
T-03-275  Terriss/LS carbonation tester w/mechanical gauge and thermometer
T-03-275  Piercing device w/digital vacuum gauge and meter
T-03-275  Piercing device w/mechanical vacuum gauge
T-11-530 Carbonation meter w/electronic thermometer and pressure transducer
This carbonation tester is inexpensive, easy to use and more precise in piercing the container than any other manual device. It fits all size bottles and cans and comes complete with a dual scale, 100 psi/7.0 kg/cm2, pressure gauge and a dual scale, 25 - 125 deg F and 0 - 50 deg C dial thermometer.
This piercing device can also be equipped with a low cost digital carbonation meter. See Carbonation Meter, Digital (Electronic) for more information.
This piercing device may also be used as container vacuum tester with the addition of a mechanical vacuum gauge or digital vacuum meter. See Vacuum Tester, Container, Bench, Electronic With Digital Meter.
Piercing is a one hand operation and requires little force. A toggle valve takes the guess work out of knowing whether the valve is open or closed. A special diaphragm assembly protects the gauge and lengthens its life. The diaphragm assembly is responsive to 1" of water pressure (.036 psi). The unit can be used with an ultrasonic shaker, which fits directly on the tester base.
For replacement parts see Carbonation Tester, Bench, Manual, LS/QA, Repl. Parts.

User Instructions

RETURN

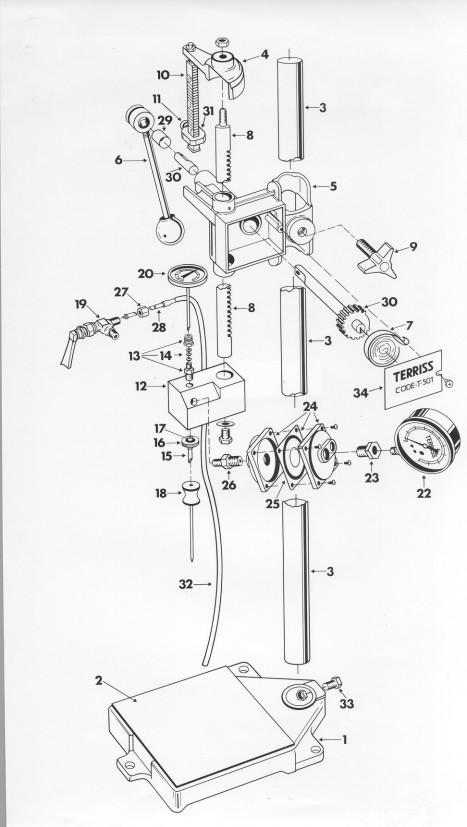

Carbonation Tester, Bench, Electronic or Manual, LS/QA, Repl. Parts

 Click on the picture for a larger view
T-03-301 Base Plate (#1)
T-03-302 Rubber Pad (#2)
T-03-303 Support Rod (#3)
T-03-304 Driver Assembly (#4-9)
T-03-305 Housing (#5)
T-03-306 Handle and Gear (#6)
T-03-307 Spring (Black) (#7)
T-03-308 Driver Rod (#8)
T-03-309 Lock Housing Knob (#9)
T-03-310 Locking Rod (#10)
T-03-311 Thumb Screw (#11)
T-03-312 Piercing Head (#12)
T-03-313 Swage lock, manual (#13)
T-03-314 O-ring set, Neoprene, 3 pc (#14)
T-03-206 D-T Piercing needle, .703 length (#15)
T-03-210 D-T Long needle, plastic cap, .828 length (#15)
T-03-122 Packing/Needle Nut (#16)
T-03-207 D-T Needle Nut Gasket (#17)
T-03-208 D-T Rubber Seal (#18)
T-03-319 Toggle valve, stainless steel (#19)
T-03-201 Dial thermometer, 25 - 125 deg F/0 - 50 deg C (#20)
T-03-321 Gauge/diaphragm assembly, 100 psi/7 kg/cm2 (#22-26)
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-323  Bushing (#23)
T-03-324 Gauge Protector (#24)
T-03-325  Rubber diaphragm only (#25)
T-03-326  Nipple, 1/8" x 1/4" (#26)
T-03-327  Valve Nut (#27)
T-03-328  Hose Adapter (#28)
T-03-329  Spacer (#29)
T-03-330  Pinion Gear (#30)
T-03-331 Stop Collar (#31)
T-03-190  Connection tube, 30" (#32)
T-03-333  Support Rod Screw (#33)
T-03-334  Cover Plate (#34)
For pressure gauge specifications see Gauge, Pressure

RETURN

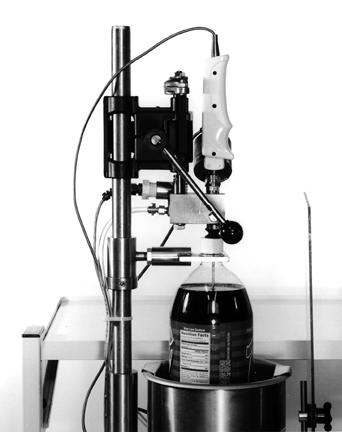

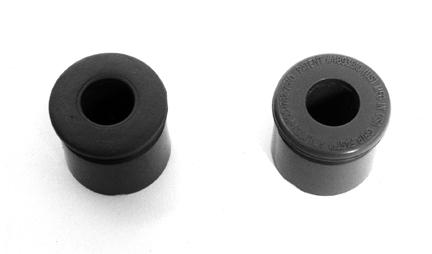

 Carbonation Tester, Bench, Neck Support, Plastic Bottle

 Click on the picture for a larger view
T-03-115 For 28 mm neck
T-03-130   For 38 mm neck
When testing low carbonation beverage products in plastic bottles, this neck support device prevents the bottle from collapsing when it is pierced.

RETURN

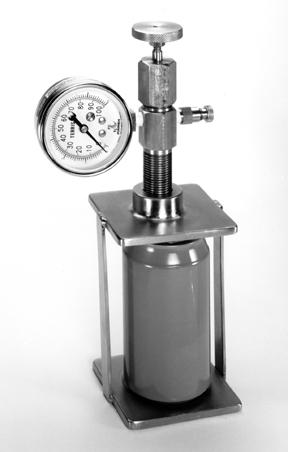

Carbonation Tester, Hand-Held, Can

 Click on the picture for a larger view
T-03-485 Unit, complete
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-460 Snift Valve
T-03-477 Piercing needle
T-03-478 Teflon Seal
T-03-479 Metal Seals (2)
T-03-480 Seal for Snift Valve
T-03-482 Sealing rubber
T-03-498 Sealing rubber
Heavy duty stainless steel construction. Equipped with 100 psi pressure gauge and snift valve. Temperature is taken separately.
For pressure gauge specifications see Gauge, Pressure.

RETURN

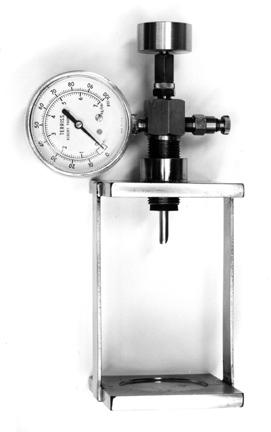

Carbonation Tester, Hand-Held, Can, w/Therm

 Click on the picture for a larger view
T-03-490 Unit, complete, punch style
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-314 O-ring set, Neoprene, 3 pc (#14)
T-03-460 Snift Valve
T-03-480 Seal for Snift Valve
T-03-498 Sealing rubber
T-03-570 Dial thermometer, 25 - 125 deg F, 1" dia
The punch style Can Carbonation Tester is furnished with a 0 - 100 psi gauge and an integral thermometer.
For pressure gauge specifications see Gauge, Pressure.

RETURN

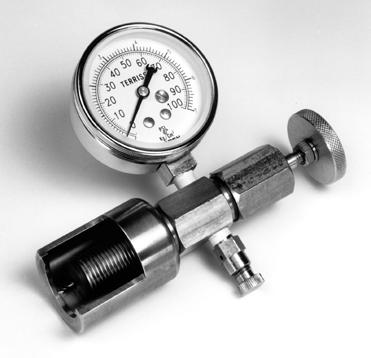

Carbonation Tester, Hand-Held, Compact

Click on the picture for a larger view
T-03-475 Unit, complete, up to 1 ltr bottle
T-03-476 Unit, complete, 2 ltr bottle
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-460 Snift Valve
T-03-477 Piercing needle
T-03-478 Teflon Seal
T-03-479 Metal Seals (2)
T-03-480 Seal for Snift Valve
T-03-482 Sealing rubber
A stainless steel carbonation tester for bottles. Small and portable for easy use in determining volumes of CO2. Equipped with a 100 psi pressure gauge. Temperature is taken separately.
For pressure gauge specifications see Gauge, Pressure.

RETURN

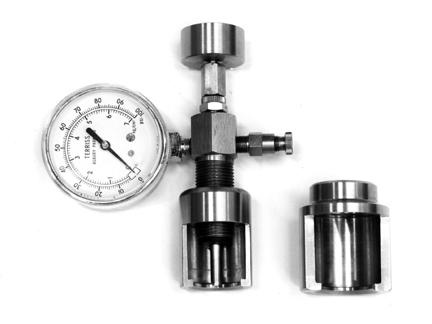

Carbonation Tester, Hand-Held, Compact, w/Therm

 Click on the picture for a larger view
T-03-495 Unit, complete, punch style, up to 1 ltr bottle
T-03-496 Unit, complete, punch style, 2 ltr
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-314 O-ring set, Neoprene, 3 pc (#14)
T-03-460 Snift Valve
T-03-480 Seal for Snift Valve
T-03-482 Sealing rubber
T-03-570 Dial thermometer, 25 - 125 deg F, 1" dial
The Terriss Compact Carbonation Tester is available with an integral thermometer.
For pressure gauge specifications see Gauge, Pressure.

RETURN

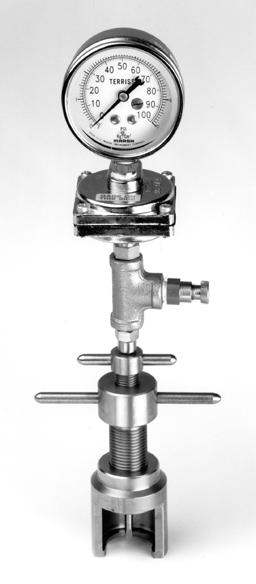

Carbonation Tester, Hand-Held, Diaphragm Type

 Click on the picture for a larger view
T-03-401 Unit, complete, 1 ltr container
T-03-402 Unit, complete, 2 ltr container
T-03-403 Unit, complete, 3 ltr container
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-321 Gauge/diaphragm assembly, 100 psi/7 kg/cm2 (#22-26)
T-03-452 Punch and relief valve assembly
T-03-454 Relief Valve and Tee Assembly
T-03-455 Needle Stem Punch
T-03-456 Crown Sealing Rubber
T-03-457 Rubber Packing
T-03-458 Packing Gland, Metal
T-03-460 Snift Valve
T-03-453 Clamp Assembly, 1 ltr
T-03-459 Clamp Assembly, 2 ltr
Stainless steel construction with rubber diaphragm gauge protector to prevent beverage from reaching bourdon tube of gauge. Equipped with 100 psi/7 kg/cm2 pressure gauge. Temperature is taken separately.
For pressure gauge specifications see Gauge, Pressure.

RETURN

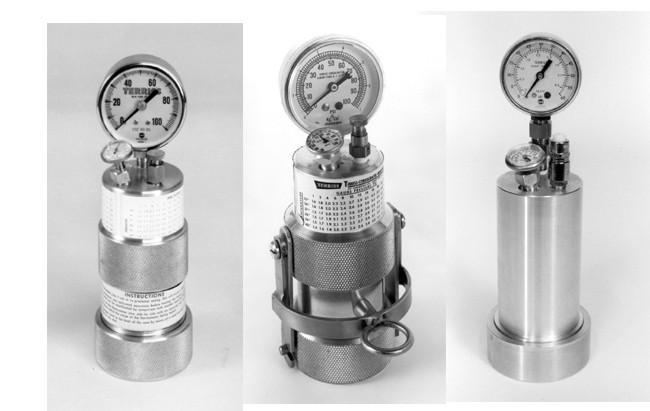

Carbonation Tester, Hand-Held, Fountain (Cup)

 Click on the picture for a larger view
T-03-566   Screw-in style
T-03-567  Clamp style
T-03-575 Bayonet style
For determination of CO2 gas volumes in vending machine drinks. Equipped with recalibratable bi-metallic dial thermometer, push button snift valve and 60 psi pressure gauge. Light weight aluminum body will stand a lifetime of abuse. Three styles available.
Also see Carbonation Tester, Hand-Held, Fountain, (Cup), New Style for a unit that is more economical.

RETURN

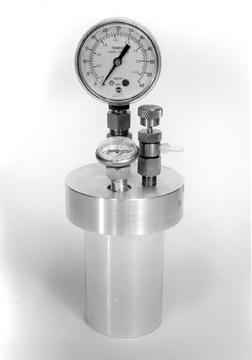

Carbonation Tester, Hand-held, Fountain (Cup), New Style

 Click on the picture for a larger view
T-03-576  Unit, complete
This unit is smaller and less expensive then the traditional style of of cup tester. But it holds the same amount of beverage as the other cup testers. It utilizes a bayonet mount for easy closure. It does not have a glass jar inside. Complete with recalibratable, bi-metallic dial thermometer, 60 psi gauge and sniff valve. Light weight, but durable aluminum body for long life. Available also with certified mercury thermometer and high accuracy test gauge. Please inquire.

RETURN

Carbonation Tester, Hand-Held, Fountain (Cup), Repl. Parts


T-03-117 Pressure gauge, 60 psi and 4 kg/cm2
T-03-568 Gaskets (2)
T-03-569 Glass jar, 6 oz
T-03-570 Dial thermometer, 25 - 125 deg F, 1" dial
T-03-571 Snift valve
T-03-572 Thermometer Adapter
T-03-573 Optional leather case for screw-in style
T-03-574 Valve, Pressure Release Rotation
T-03-577 Thermometer, mercury, 30 - 80 deg F, 8"
T-03-578 Gauge, mechanical, 60 psi, +/- 0.25 psi accuracy FS, 2-1/2" dia. face

For pressure gauge specifications see Gauge, Pressure.

RETURN

Carbonation Tester, Hand-Held, Master Specialty


T-03-800 Unit, complete, crown puncturing, English gauge
T-03-809 Unit, complete, crown puncturing, Metric gauge
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-801 Thermometer with armour, 45 - 110 deg F
T-03-802 Thermometer, only, glass, 45 - 110 deg F
T-03-803 Lever screw
T-03-804 Small lever
T-03-805 Large lever
T-03-806 Packing
T-03-807 Sealing rubber
T-03-808 Bottle or crown clamp
T-03-810 Thermometer, glass, 5 - 45 deg C
Takes pressure and temperature readings at the same time. Improved clamps and levers insure proper locking and easy crown puncturing. Includes gauge and mercury thermometer.

For pressure gauge specifications see Gauge, Pressure.

RETURN

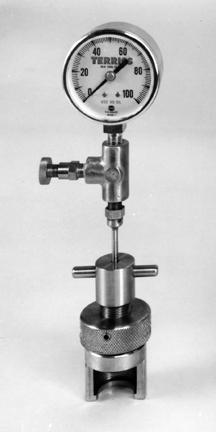

Carbonation Tester, Hand-Held, Portable


T-03-501 Unit, complete, 1 ltr container
T-03-502 Unit, complete, 2 ltr container
T-03-503 Unit, complete, 3 ltr container
T-03-508 Unit, complete, 3 ltr container
T-03-455 Needle Stem Punch
T-03-456 Crown Sealing Rubber
T-03-457 Crown Sealing Rubber
T-03-458 Packing Gland, Metal
T-03-460 Snift Valve
T-03-554 Pressure gauge and valve assembly, including stem, complete
T-03-453 Pressure gauge and valve assembly, including stem, complete
T-03-459 Pressure gauge and valve assembly, including stem, complete
Same as T-03-401 except without diaphragm assembly. See Carbonation Tester, Hand-Held, Diaphram Type. All stainless steel construction.

For pressure gauge specifications see Gauge, Pressure.

RETURN

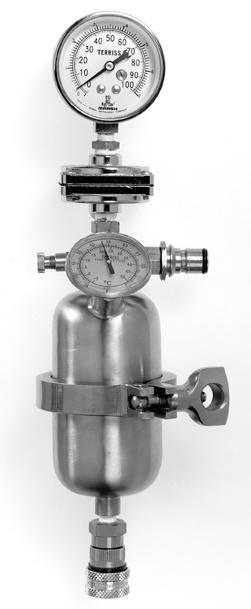

Carbonation Tester, Premix, Bomb Style

 Click on the picture for a larger view
T-03-580 Unit, complete
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-325 Rubber diaphram only (#25)
T-03-460 Snift Valve
T-03-480 Seal for Snift Valve
T-03-581 Dial thermometer, threaded, 25 - 125 deg F
T-03-582 Diaphragm Assembly (No Gauge)
T-03-583 Diaphragm Assembly (No Gauge)
T-03-584 Diaphragm Assembly (No Gauge)
T-03-585 Diaphragm Assembly (No Gauge)
T-03-586 Diaphragm Assembly (No Gauge)
Premix Tank Gas Volume Tester. All stainless steel with quick clamp opening for easy cleaning. Simple and quick to operate with recalibratable bi-metallic dial thermometer and 100 psi/7 kg/cm2 pressure gauge. A special diaphragm assembly protects the gauge and lengthens its life.

Please specify product brand to be tested.

For pressure gauge specifications see Gauge, Pressure.

User Instruction

RETURN

Carbonation Tester, Premix, Tank Pressure Only

 Click on the picture for a larger view
T-03-812  Unit, complete, w/100 psi pressure gauge
A handy instrument for checking tank pressures accurately and quickly. Complete with 100 psi pressure gauge.

Please specify product brand to be tested.
For pressure gauge specifications see Gauge, Pressure.

RETURN

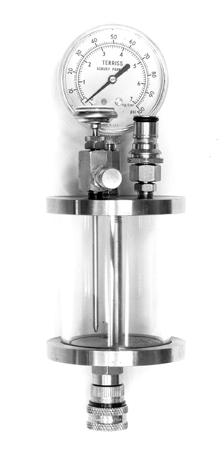

Carbonation Tester, Premix, Three in One


T-03-610  Unit, complete
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-460  Snift Valve
T-03-570  Dial thermometer, 25 - 125 deg F, 1" dial
T-03-584  Bottom fitting (socket)
T-03-585  Top fitting (plug)
T-03-602  Acrylic cylinder, 2-3/4" x 3-1/2"
T-03-603  Gaskets between cylinder and stainless steel base
T-03-605  Rubber Seal for Thermometer
T-03-606  Thermo Adapter
For checking temperature, pressure and gas volume of premix tanks. Stainless steel construction with acrylic cylinder for viewing fill height. Unit is equipped with snift valve for release of gas and with recalibratable bi-metal dial thermometer and a 100 psi/7 kg/cm2 pressure gauge.

Please specify product brand to be tested.

For pressure gauge specifications see Gauge, Pressure.

User Instruction

RETURN

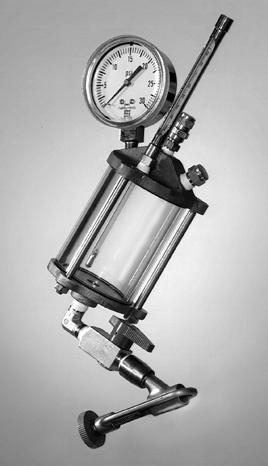

Carbonation Tester, Tank, Micro-Brewer

 Click on the picture for a larger view
T-03-650  Unit, complete
This unit connects easily to the Zwickel valve on the bright beer tank. Bleed the product into the tester, shake and read the pressure and temperature.

RETURN

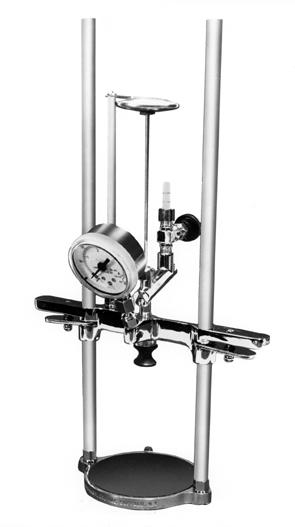

Carbonation Tester, Zahm, D-T Type

 Click on the picture for a larger view
T-03-003  1 ltr container
T-03-004 2 ltr container
T-03-213 Cross Bar hold down clamps
The complete instrument to measure pressure and temperature simultaneously. Dial thermometer is inserted through piercing needle after piercing. The Tester comes complete with a dual scale, 60 psi and 4.2kg/cm2 pressure gauge, dual scale, dial thermometer, 25 - 125 degrees F and 0 - 50 degrees C. Instruction book included.

The two liter size, T-03-004, will accept the Ultrasonic Shaker, T-02-702.

The one liter size accepts containers up to 4"dia. x 15" tall. The two liter size accepts containers up to 7"dia. x 19" tall. Longer guide rods are available on request.

For replacement parts see Carbonation Tester, Zahm, D-T Type, Replacement Parts.

RETURN

Carbonation Tester, Zahm, D-T Type, Replacement Parts

 Click on the picture for a larger view
T-03-104  Guide rods (2), 1 ltr, 15"
T-03-197  Guide rods (2), 2 ltr, 19"
T-03-105 Base only, 1 ltr
T-03-196 Base only, 2 ltr
T-03-106 Rubber pad, 1 ltr
T-03-194  Rubber pad, 2 ltr
T-03-108 Lock Plates (2)
T-03-109 Lock Springs (2)
T-03-110 Screws (2) for Lock Plate
T-03-117 Pressure gauge, 60 psi and 4 kg/cm2
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-118 Gauge gasket, flat
T-03-119 Gauge Adapter
T-03-120 Gauge Adapter
T-03-121 Piercing needle, modified, .703 length
T-03-193 Piercing needle, modified, .703 length
T-03-122 Packing/Needle Nut (#16)

T-03-123 Nut Gasket
T-03-124 Rubber Seal
T-03-129  Can stops (2)
T-03-163  Toggle Valve, Stainless Steel
T-03-169 Needle valve, complete, w/nipple and nut
T-03-170  Hose Nipple for Needle Valve
T-03-171  Handle and screw for needle valve
T-03-172  Valve Stem for Needle Valve
T-03-173  Packing Nut for Needle Valve
T-03-174  Panel Nut for Needle Valve
T-03-175 Teflon packing kit for needle valve
T-03-176 Top Gland for Needle Valve
T-03-177 Bottom Gland for Needle Valve
T-03-178 Valve Body For Needle Valve
T-03-179 Nipple Nut for Needle Valve
T-03-187 Needle Valve Only (30R)
T-03-188 Stop Screws (2)
T-03-213 Cross Bar hold down clamps
For pressure gauge specifications see Gauge, Pressure.

RETURN

Carbonation Tester, Zahm, Electronic

 Click on the picture for a larger view
T-03-040 Up to 1 ltr container
T-03-041 Up to 2 ltr container
T-03-043 Electronic device only
T-03-044 Electronic thermometer only
Quick and accurate measurement of carbonation gas volumes in canned or bottled beverages. Gas volumes are read directly from the computer with no need for charts or manual conversions. Two conversion formulas can be installed in the computer (example, sugar and diet formulas). Altitude correction factors can also be entered. Data memory and read-out are available for 5 samples.

Pressure Sensor: 0-60 psi/0-4.2 kg/cm2
Temperature Sensor: 25-125 deg.F/0-55 deg.C
Accuracy: +/-0.005 entire range
Power Supply: (2) AA batteries

See Carbonation Tester, Zahm, D-T Type, Replacement Parts for other replacement parts.

RETURN

Carbonation Tester, Zahm, Modified

 Click on the picture for a larger view
T-03-001 1 ltr container
T-03-002 2 ltr container
T-03-213 Cross Bar hold down clamps
Gas pressure is quickly obtained with this tester and gas volume easily determined where samples are tested at a known termperature, or where temperature is taken separately. Includes dual scale 60 psi and 4.2kg/cm2 pressure gauge and instruction booklet.

The one liter size accepts containers up to 4" dia x 12" tall. The two liter size accepts containers up to 7" dia x 16" tall.

The 1 liter size is 4" x 15" high. The two liter size is 7" x 19" high. Longer guide rods are available on request.

The 2 liter model can be used with the T-02-702 Ultrasonic Shaker.
For replacement parts see Carbonation Tester, Zahm, Modified, Replacement Parts.

RETURN

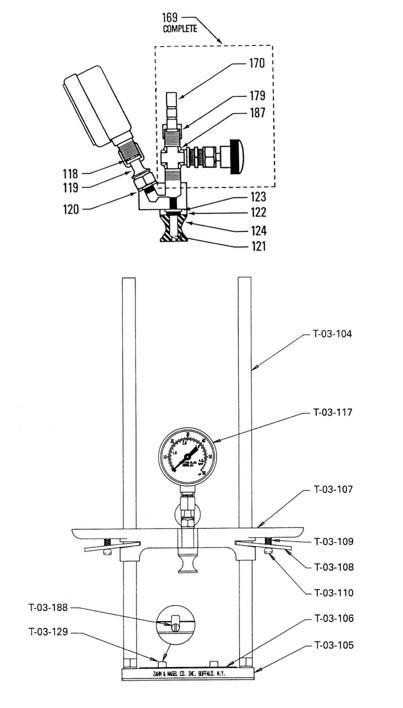

Carbonation Tester, Zahm, Modified, Replacement Parts

 Click on the picture for a larger view
T-03-104  Guide rods (2), 1 ltr, 15"
T-03-197  Guide rods (2), 2 ltr, 19"
T-03-105 Base only, 1 ltr
T-03-196 Base only, 2 ltr
T-03-106 Rubber pad, 1 ltr
T-03-194  Rubber pad, 2 ltr
T-03-108 Lock Plates (2)
T-03-109 Lock Springs (2)
T-03-110 Screws (2) for Lock Plate
T-03-117 Pressure gauge, 60 psi and 4 kg/cm2
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-118 Gauge gasket, flat
T-03-119 Gauge Adapter
T-03-120 Gauge Adapter
T-03-121 Piercing needle, modified, .703 length
T-03-193 Piercing needle, modified, .703 length
T-03-122 Packing/Needle Nut (#16)
T-03-123 Nut Gasket
T-03-124 Rubber Seal
T-03-129  Can stops (2)
T-03-163  Toggle Valve, Stainless Steel
T-03-169 Needle valve, complete, w/nipple and nut
T-03-170  Hose Nipple for Needle Valve
T-03-171  Handle and screw for needle valve
T-03-172  Valve Stem for Needle Valve
T-03-173  Packing Nut for Needle Valve
T-03-174  Panel Nut for Needle Valve
T-03-175 Teflon packing kit for needle valve
T-03-176 Top Gland for Needle Valve
T-03-177 Bottom Gland for Needle Valve
T-03-178 Valve Body For Needle Valve
T-03-179 Nipple Nut for Needle Valve
T-03-187 Needle Valve Only (30R)
T-03-188 Stop Screws (2)
T-03-213 Cross Bar hold down clamps
For pressure gauge specifications see Gauge, Pressure.

RETURN

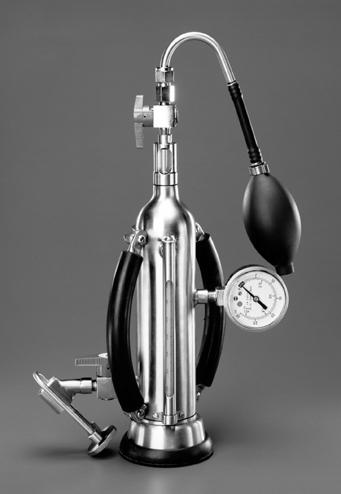

Carbonation Tester, Zahm, Volume Meter (SS-60)

 Click on the picture for a larger view
T-03-018 Unit, complete
T-03-024 Clamping device gasket
T-03-025 Thermometer, mercury, 20-90 deg F
T-03-026 Thermometer, alcohol, 20-90 deg F
T-03-035 Pressure gauge, 30 psi and 2 kg/cm2
T-03-117 Pressure gauge, 60 psi and 4 kg/cm2
A gas volume meter developed to determine average carbonation gas levels in tank stored beverages. The lightweight design reduces operator fatigue while the stainless steel construction increases strength and resists corrosion.

All replacement parts for the Zahm Volume Meter are available. For pressure gauge specifications see Gauge, Pressure.

RETURN

Carbonation/Air Tester, LS/QA, Obsolete, Bench, Electronic, Repl. Parts
T-02-505  Oxygen sensor only
T-02-506 Oxygen Sensor Maintenance Kit $
T-02-507  Air Apparatus Maintenance Kit
T-02-508  Unit, complete
T-02-509  Unit, complete
T-02-701  Console only, 115 VAC
T-02-705  Electronic thermometer
T-02-707  Simulator for SmarTester
T-02-711  Transducer only
T-02-712  Solenoid Snift Valve
T-02-715 Transducer Connector
T-02-716  Valve Connector
T-02-717  Elbow
T-02-718  Teflon seal set
T-02-719  Connector "o" ring
T-02-720  Seal set
T-02-721  Hose nipple, stainless steel
T-02-722  Swage lock

For piercing device parts not listed above see Carbonation Tester, Bench, Manual, LS/QA, Replac. Parts.

RETURN

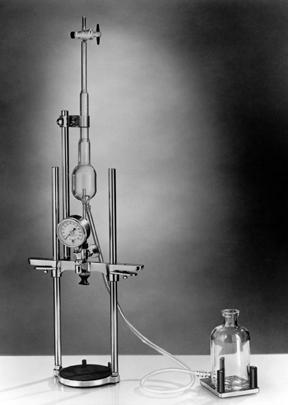

Carbonation/Air Tester, Zahm

 Click on the picture for a larger view
T-03-005   1 ltr container
T-03-006 2 ltr container
T-03-213  Cross Bar hold down clamps
The new style Zahm air tester provides greater speed and accuracy. It is easily adjusted to fit various bottles and cans. It is supplied with a 25 ml buret, a 500 ml level bottle with 30" long tygon hose, and a dual scale 60 psi and 4.2 kg/cm2 guage. It can be modified for a dial thermometer. An instruction booklet is included.

For replacement parts see Carbonation/Air Tester, Zahm, Replacement Parts.

RETURN

Carbonation/Air Tester, Zahm, Hold-Down Clamps

 Click on the picture for a larger view
T-03-213  Cross Bar hold down clamps
These clamps prevent the piercing head assembly from popping up during shaking. Easy on and off.

RETURN

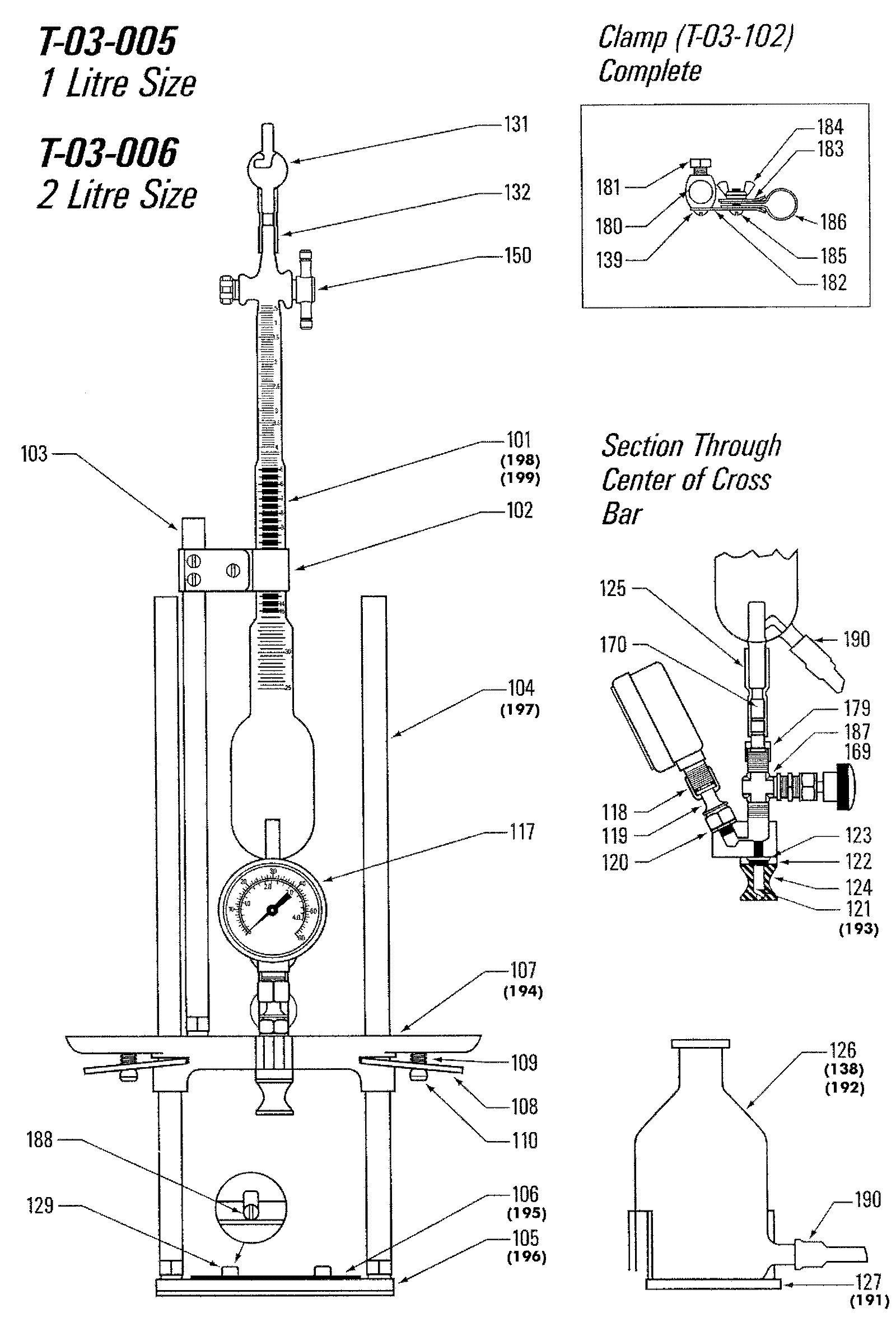

Carbonation/Air Tester, Zahm, Replacement Parts

 Click on the picture for a larger view
T-03-101  Buret w/glass stopcock, 25 ml
T-03-102  Clamp Complete for 25 ml Buret
T-03-103  Support Rod
T-03-104  Guide rods (2), 1 ltr, 15"
T-03-197  Guide rods (2), 2 ltr, 19"
T-03-105 Base only, 1 ltr
T-03-106  Rubber pad, 1 ltr
T-03-195  Rubber pad, 2 ltr
T-03-107  Cross bar, modified, 1 ltr
T-03-194  Cross bar, modified, 2 ltr
T-03-108  Lock Plates (2)
T-03-109  Lock Springs (2)
T-03-110  Screws (2) for Lock Plate
T-03-117  Pressure gauge, 60 psi and 4 kg/cm2
T-03-058 Pressure gauge, 100 psi and 7 kg/cm2 (#22)
T-03-118 Gauge gasket, flat
T-03-119 Gauge Adapter
T-03-120 Adapter Gasket
T-03-121 Piercing needle, modified, .703 length
T-03-193 Piercing needle, modified, .960 length
T-03-122 Packing/Needle Nut (#16)
T-03-123 Nut Gasket
T-03-124 Rubber Seal
T-03-125  Tygon coupling
T-03-126   Level bottle, 250 ml
T-03-127  Stand for 250 ml bottle
T-03-131  Caustic Trap
T-03-132  Plastic Coupling
T-03-138  Level bottle, 500 ml
T-03-139  Screws (2) for Clamp
T-03-163  Toggle Valve, Stainless Steel
T-03-169  Needle valve, complete, w/nipple and nut
T-03-180  Clamp Slide
T-03-181   Thumb Screw for Clamp
T-03-182  Support Band for Clamp
T-03-183  Clamp band, 25 ml
T-03-184  Wing Nut for Clamp
T-03-185  Screw for Clamp
T-03-186 Plastic Band for 25 ml Buret
T-03-187  Needle Valve Only (30R)
T-03-189 Stopcock grease, 5.3 oz tube
T-03-190 Connection tube, 30"
T-03-191   Stand for 500 ml bottle
T-03-192 Level bottle, 1000 ml
T-03-198 Buret w/Teflon stopcock, 50 ml
T-03-199 Buret w/Teflon stopcock, 25 ml
T-03-213 Cross Bar hold down clamps
For pressure gauge specifications see Gauge, Pressure.

RETURN

Carbonation/Air, Pierce-All Piercing Needle

 Click on the picture for a larger view
T-02-555  Pierce-All Piercing Needle
This piercing needle provides greater thrust for those hard to pierce container closures. And it provides a positive, pre-pierce seal for air testing. It can be used on the T-02-801, T-03-003, T-03-004, T-03-005, T-03-006 and T-03-300 piercing devises.

RETURN

Carbonation/Air/pH/TA, Bench, General Info. on SmartesterPC
The SmarTesterPC (Beverages) is designed with modularity in mind. It can be configured in a variety of ways, depending on the needs of the beverage manufacturer. Choose the features and tests that will improve your testing accuracy and, equally important, improve the productivity of your work force.

Use the SmarTesterPC in the laboratory, on the packaging line and in-Line. You may incorporate remote displays and monitors, automatic data collection, distribution and archiving and automated multi-test modules.

Tests:
Carbonation, Air, Oxygen, Brix**, Net contents**, pH, Titratable Acidity, and other tests.
**Separate instrument

Features:
• Uniquely accurate and repeatable temperature, pressure, pH, TA and air or oxygen measurements.
• Elimination of wet chemistry in air testing.
• Automatic computation of results, e.g. gas volumes (no tables or slide charts and no interpretive errors).
• Operator initiated or automatic RS232, LAN or internet communication with any computer, any where.
• Easy-to-read computer display. All of the functionality of the instrument is on the screen, all of the time.
• Computer-based instruction manual, which can be used while running the instrument.
• Simple, easy calibration.
• Data archiving in Microsoft Access.
• State of the art electronics for dependability and long life.
• Sophisticated software diagnostics of all the instrument's functionality.
• Easy revision/modification of the SmarTesterPC's software programs.
• Fits all size bottles and cans.
• Easy, precise piercing of the container.
• Consistent, repeatable ultrasonic "shaking" saves wear and tear on the operator. (Most bottlers find that ultrasonic shaking best meets their needs. However, the SmarTester may be used in conjunction with a mechanical shaker or even hand-shaking.)

Input:
1. The SmarTesterPC receives data from measuring devices such as pressure transducers, electronic thermometers, pH sensors and oxygen sensors. The DAQ Console (I/O) has eight sensor input ports, plus a syringe pump control port. It has an on/off switch and light, plus a fuse.

2. The SmarTesterPC accepts instructions from the keyboard, the mouse and/or the software, where the permanent, instrument-specific programs are stored. Information transmitted from the software program comes from the operator as in calibration, or as instructions keyed on to the computer screen, or from the program itself in terms of functionality.

Output:
1. The Relay Console has six 24 VDC relay ports (expandable to twenty) and four 115 VAC relay ports which provide power and control to external devices like solenoid valves, shakers and pumps. It has an on/off switch and light, plus five fuses. The SmarTesterPC transmits to the monitor and to the DAQ and Relay Consoles.

2. Some information is sent to and stored in a special .ini file (calibrations) and Microsoft Access (test data).

RETURN

Carbonation/Air/pH/TA, Bench, SmarTesterPC Mini-Lab (USB)


T-02-871 Carbonation only, 1 piercing station w/standart ultrasonic shaker
T-02-874 T-02-871 w/tuneable, constant power ultrasonic shaker
T-02-877 T-02-871 w/single station, mechanical shaker
T-02-802 Carbonation piercing station only, w/standard ultrasonic shake
T-02-812 T-02-802 w/tuneable, constant power ultrasonic shaker
T-02-813 T-02-802 w/single station, mechanical shaker
T-02-803 Add-on module, air/oxygen, complete
T-02-804 Add-on module, pH/TA, complete
The SmarTesterPC Mini-Lab (USB) incorporates the power of modern, low cost computers and sophisticated, graphical software to strengthen and expand the capabilities of the SmarTester in testing beverages for carbonation, air/oxygen, pH and titratable acidity.

The Sensor/Rely Control Module (USB) is connected to the computer through the USB port.

The SmarTesterPC Mini-Lab (USB) has all the functionality of our previous model, but offers significant additional benefits.
• Its data handling (hardware and software) allows for more resolution, accuracy and repeatiblity.
• It is easier to use since all of the instructions are on the computer screen.
• It has built in data collection and archiving.
• It can incorporate an auto-buret/titrator for titratable acidity and other wet chemistry tests.
• It has greatly expanded control capability.
• It can be configured to acquire data from a variety of instruments and sensors anywhere in the plant via analog I/O and RS232 communications.

The SmarTesterPC Mini-Lab (USB) is modular. The core unit includes the following hardware and software:
• A computer, monitor, keyboard and mouse.
• MS WindowsXP and a proprietary implementation of National Instruments LabVIEW (the Mini-Lab application).
• USB connectivity.
• A sensor/relay control module with sensor and relay (valves, shakers, pumps, etc.) power supplies.

Configurations
Incorporating the core unit, the SmarTesterPC Mini-Lab can be configured in a number of ways:
• Up to four carbonation tests.
• Up to three carbonation tests plus one other test, air/oxygen or pH/titratable acidity.
• Up to two carbonation tests plus two other tests, air/oxygen and pH/titratable acidity.

Carbonation
The operator pierces the container(s) and clicks one on-screen button. The unit snifts (if required), agitates, measures pressure (+/- 0.1 psi) and temperature, (+/- 0.1 deg. F) and displays the calculated carbonation results, utilizing the volume formula provided by the parent company. The operator identifies the container with a sample number and transfers the test results into individual text files. Calibration is simple and dependable using a dead weight tester and a NIST traceable thermometer.

Air/Oxygen
The operator pierces the container (or it is already pierced from the carbonation test) and clicks one on-screen button. The unit agitates the container and drives the beverage gas into a test chamber where it is measured for air/oxygen (+/- 0.04 ml air). This process is repeated automatically for as many cycles as is necessary and the results are displayed. Non-carbonated products are sparged with a neutral gas to drive the oxygen into the test chamber. The operator identifies the container with a sample number and transfers the test results into a into individual text files. Calibration is simple and dependable using injections of air.

pH and Titratable Acidity
The operator degases the beverage and measures the pH. The endpoint and titration steps are selected. The operator clicks one on-screen button. The unit titrates until the endpoint is reached. The results are displayed. Calibration is easy and dependable with appropriate buffer solutions and a NIST traceable thermometer.

Hardware Functionality
The SmarTesterPC Mini-Lab (USB) can acquire data from up to eight sensors, including pressure, temperature, air/oxygen (polargraphic) and pH (plus many others in non-beverage applications). It can control up to 12 solenoid valves, pumps, shakers or other electrical appliances, including a precision syringe pump which makes it an economical auto-buret/titrator.

The SmarTesterPC Mini-Lab (USB) can be configured for production line use. As the tests are completed the results are displayed for the line operator at his or her station. This data may also be transmitted to another computer via a network connection for long term storage and analysis. The testing module is mounted in a water-tight, stainless steel enclosure. Since the tests are handled by the line operator, the workload of the laboratory technicians is dramatically reduced, allowing them to focus on other activities and testing requirements.
For replacement parts see Carbonation/Air/pH/TA, Bench, SmarTesterPC, Repl. Parts

RETURN

Carbonation/Air/pH/TA, Bench, SmarTesterPC, Repl. Parts
T-02-301 Amplifier for polargraphic oxygen sensor
T-02-306 Amplifier for pH sensor
T-02-503 pH sensor only
T-02-505 Oxygen sensor only
T-02-506 Oxygen Sensor Maintenance Kit
T-02-507 Air Apparatus Maintenance Kit
T-02-715 Transducer Connector
T-02-716 Valve Connector
T-02-717 Elbow
T-02-718 Teflon seal set
T-02-719 Connector "o" ring
T-02-720 Seal set
T-02-721 Hose nipple, stainless steel
T-02-722 Swage lock
T-02-722 Swage lock
T-02-805 Electronic thermometer, 12", w/handle
T-02-810 Electronic thermometer, 5", w/o handle
T-02-815 Pressure transducer, 0 - 100 psi
T-02-820  pH sensor
T-02-825 Solenoid valve
T-02-830 Oxygen sensor, polargraphic
T-02-835 Precision syringe pump
T-02-851 DIO module (relays) - Obsolete
T-02-856 DAQ module (sensors), ISA - Obsolete
T-02-858 DAQ Module (sensors), PCI - Obsolete
T-02-880 Sensor/Relay Control Module (USB)
T-03-206 D-T Piercing needle, .703 length (#15)
T-02-555  Pierce-All Piercing Needle
For piercing device replacement parts not listed below see Carbonation Tester, Bench, Manual, LS/QA, Repl. Parts.

RETURN

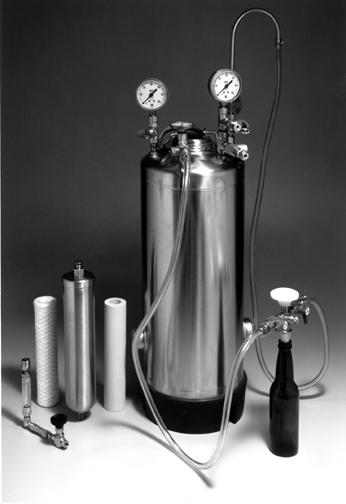

Carbonator, Pilot Plant, Zahm, Batch Processing

 Click on the picture for a larger view
T-03-911   5 gal tank capacity
T-03-912 6 gal tank capacity
T-03-913 10 gal tank capacity
A complete system for fast and accurate carbonation and bottling of small batches.

This unit is designed for finished samples and other experimental work. The same sample can be carbonated to various gas volumes. It has a removable dial thermometer permitting thermometer recalibration and steam cleaning of the tank. The stainless steel cartridge-type filtration unit uses a standard Zahm stone or disposable cartridges. The tank and accessories are all stainless steel. A special sanitary model with stainless steel valves and teflon plugs, quick connect fittings, high accuracy stainless steel gauges and a dial thermometer is available in 5, 6 and 10 gallon capacities.
