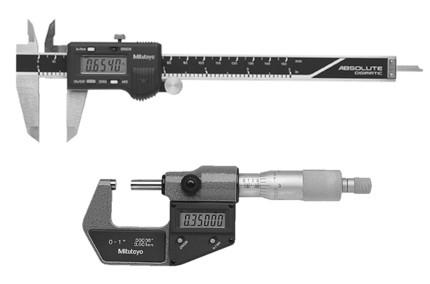

Caliper and Micrometer |
Click on the picture for a
larger view |
| T-14-170 |
Digital Caliper, 0 - 6 inch/0 - 150 mm |
| T-14-171 |
Digital Caliper, 0 - 8 inch/0 - 200 mm |
| T-14-173 |
Digital Caliper, 0 - 12 inch/0 - 300 mm |
| T-14-175 |
Digital Micrometer, 0 - 1 inch/0 - 25 mm |
| T-14-177 |
Digital Micrometer, 0 - 1 inch/0 - 25 mm, with SPC output |
| T-14-179 |
Outside Micrometer (non digital), 0 - 1 inch x 0.0001 |
| T-14-180 |
Outside Micrometer (non digital), 0 - 25 mm x 0.001 |
|
 |
Digimatic calipers and micrometers from Mitutoyo. Easy to use, durable and accurate.
The Digimatic Caliper has a large LCD display and imprinted line scales. Resolution is 0.0005. Accuracy is 0.001 (0.0015 for 12 inch model). SPC Output is available. Please call.
The Digimatic Micrometer has an easy one-handed operation and an extra large LCD display. The measuring faces are carbide-tipped. Resolution is 0.00005. The accuracy is 0.00005.
The Outside Micrometer (non digital) has a carbide tipped anvil, spindle and ratchet stop feature. |
|
TURN |
|

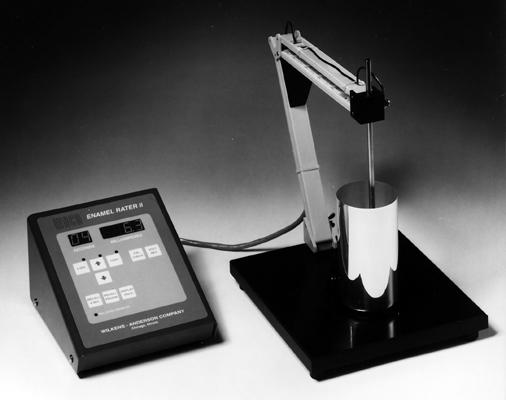

Can Inspection, WACO, Enamel Rater II |
Click on the picture for a
larger view |
| T-14-151 |
Digital model, 110 VAC |
|
 |
| The WACO Enamel Rater II is a quick, convenient, accurate instrument that provides an index of can quality in terms of metal exposure and locates the site of such exposure. Metal exposure is detected by a flow of electrical current and is indicated on the meter. 115VAC, 50/60 Cycle with 240VAC available on request. Shipping weight approximately 25 lbs. |
|
RETURN |
|

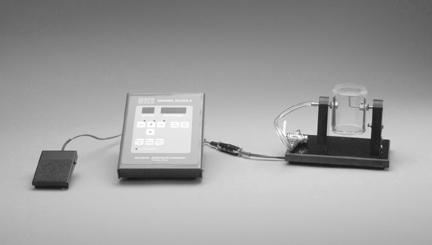

Can Inspection, WACO, End Panel Holder |
Click on the picture for a
larger view |
| T-14-155 |
202 can |
| T-14-157 |
206 can |
| T-14-158 |
209 can |
| T-14-159 |
211 can |
| T-14-160 |
Test resistor, reads 6.3 ma |
| T-14-161 |
Test resistor, reads 12.6 ma |
| T-14-168 |
Cable Adapter/Foot Switch |
|
 |
| Used with any WACO Enamel Rater to test for metal exposure on can ends. The End Panel Holder is attached to the Enamel Rater electronics console. Cable adapter/foot switch is required to use the End Panel Holder with the Enamel Rater. Other sizes available. Please inquire. |
|
RETURN |
|

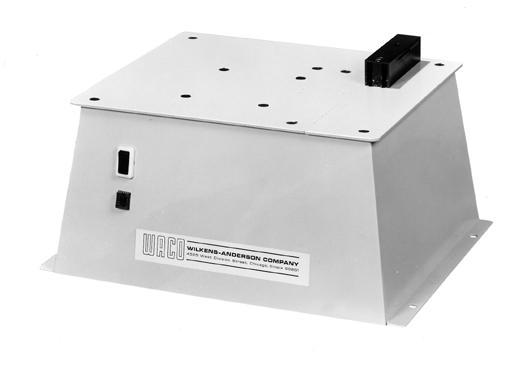

Can Inspection, WACO, Seam Saw, MK-1000 |
Click on the picture for a
larger view |
| T-14-162 |
Unit, complete |
| T-14-167 |
Replacement blades only |
|
 |
| The WACO saw will cut through the can double seams in seconds leaving a sharp, clear cross section free of burrs and distortions. The cross section can then be measured and evaluated on a seam projector. 110 VAC only. |
|
RETURN |
|

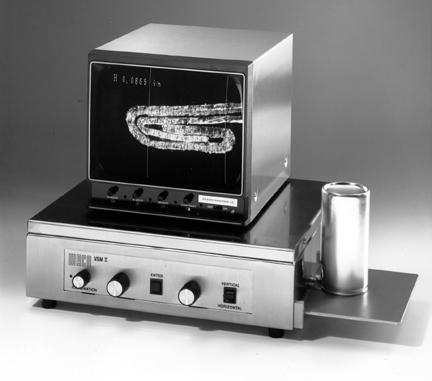

Can Inspection, WACO, VSM II Video Seam Monitor |
Click on the picture for a
larger view |
| T-14-165 |
Unit, complete, 110 VAC, 60 hz |
| T-14-169 |
Unit, complete, 220 VAC, 50 hz |
|
 |
| The VSM II projector produces a sharper, brighter image to examine the fine details of a seam. Select a pair of cursors on either the X or Y axis and read the digital display measurements. Illumination is adjustable and a calibration procedure is built in. |
|
RETURN |
|
Can Opener, Large, Punch Style, Stainless Steel |
Click on the picture for a
larger view |
| T-21-199 |
Over-sized stainless steel can punch |
|
 |
|
RETURN |
|

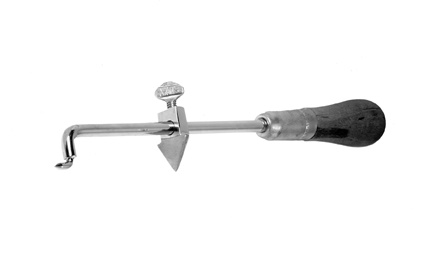

Can Opener, Sanitary |
Click on the picture for a
larger view |
|
|
 |
| A special opener designed to remove the center section of the can lid while keeping the double seam intact. Used with the Can Seam Cutting Nippers to access the can double seam. |
|
RETURN |
|

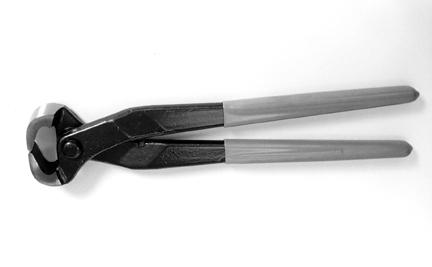

Can Seam Cutting Nippers |
Click on the picture for a
larger view |
|
|
 |
| A convenient hand tool used to access the cover and body hooks of the can double seam. Vinyl coated hand grips for comfortable use |
|
RETURN |
|

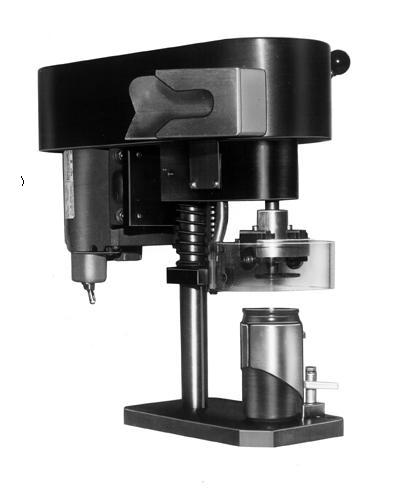

Can Seam Stripper |
Click on the picture for a
larger view |
| T-14-196 |
Unit, complete, for 12 oz cans, 110 VAC |
| T-14-198 |
Unit, complete, 12 oz cans, 220 VAC |
| T-14-211 |
Roller cutter with bearings |
| T-14-212 |
Bearing only for roller cutter |
| T-14-213 |
Spacer for Roller Cutter |
| T-14-214 |
Can center for 200 can |
| T-14-215 |
Can center for 202 can |
| T-14-216 |
Can center for 204 can |
| T-14-217 |
Can center for 206 can |
| T-14-218 |
Can center for 209 can |
| T-14-219 |
Can center for 211 cans |
|
 |
WACO Universal Can Stripper cuts the cover hook and separates it from the body without distortion. May be used on round cans made of steel or aluminum. The body hook and cover hook remain in perfect condition for measurement and tightness evaluation.
When ordering, end diameter and can height must be specified so that the appropriate parts are included. |
|
RETURN |
|
Can Seam, Depth Gauge, Countersink |
Click on the picture for a
larger view |
| T-14-184 |
0 - 0.500" |
| T-14-186 |
0 - 10 mm |
| T-14-188 |
Dual scale, mm and inch |
|
 |
Accurate measurements from the top of the double seam to the bottom of the countersink adjacent to the chuck wall. The dial is graduated in 0.001" or 0.01 mm increments.
The digital unit has an easy to read digital display with dual scale switch between English and Metric and comes with SPC data output. |
|
RETURN |
|
Can Seam, Micrometer |
Click on the picture for a
larger view |
| T-14-190 |
0 - 0.375", 0.001" divisions |
| T-14-191 |
0 - 9 mm, 0.01 mm divisions |
| T-14-192 |
Snub Nose, 0 - 0.375", 0.001" divisions |
| T-14-194 |
Snub Nose, 0 - 9 mm, 0.01 mm divisions |
|
 |
| Specially designed to measure seam thickness and height on multi-necked beverage cans. A ratchet stop prevents false readings from over-tightening |
|
RETURN |
|

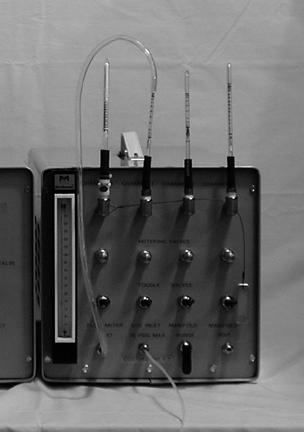

Carbon Dioxide Analysis, Detector Tube Manifold System |
Click on the picture for a
larger view
|
| T-11-356 |
Detector Tube Manifold System |
|
|
|
The Detector Tube Manifold (DTM) instrument provides for the analysis of a wide range of trace contaminants within beverage-grade CO2. The DTM system is a compact, durable instrument which serves as an interface between a vaporized liquid CO2 source and a full analytical range of validated detector tubes and other analytical testing equipment including Zahm CO2 purity testers, THC,
TSA, and ISBT odor/taste/appearance equipment |
|
RETURN |
|
Carbon Dioxide Analysis, Detector Tube Manifold System, Validated DTM Methods |
Click
here for a chart |
|
RETURN |
|
Carbon Dioxide Analysis, Odor, Taste and Appearance |
 |
| T-11-357 |
ISBT 16-4 Equipment Kit |
|
Click on the picture for a
larger view |
| The ISBT16-4 equipment kit includes all the specialized glassware needed to perform the ISBT quality control test entitled "CO2 Odor, Taste and Appearance in Water.” With the ISBT16-4 Kit, CO2 test results can be quickly and easily obtained on-site by non-technical personnel after some sensory and equipment training. |
This kit was developed in cooperation with a leading beverage manufacturer and has successfully completed domestic and international field-trials. The kit contains: 2 - rugged, heavy wall, 250cc conical glass flasks (24/40) with a single 200cc calibration mark; 2 - rugged, heavy wall glass impingers (24/40); 1 - vinyl-coated flask donut weight; 12, ¼" ID plastic caps for impinger ports. |
|
RETURN |
|
Carbon Dioxide Analysis, Snow Making Kit |
|
| T-11-363 |
High Purity Snow Sample |
| T-11-358 |
SBL-2 Non-Volatile Residue Kit |
|
With this unit, 500 – 600g of CO2 snow can be quickly and easily generated through completely inert equipment. The Snow-500S kit includes: 1 - stainless steel CGA 320 cylinder fitting with PTFE washer, all stainless steel connecting hardware, a DIT-3P Silcosteel ®, flexible sampling tubing, a rugged polypropylene snow horn, a plastic snow bag ring and 1 pack of 3, clean, heavy duty snow-bags. For non-volatile residue and non-volatile organic residue tests, the SBL-2 kit is recommended. See
Carbon Dioxide Analysis, Various Accessories. |
| The Snow-500S CO2 Snow-Making Kit is designed to produce a high purity CO2 snow sample for performing CGA and ISBT testing for non-volatile residue and non-volatile organic residue, and odor of carbon dioxide snow. |
|
RETURN |
|

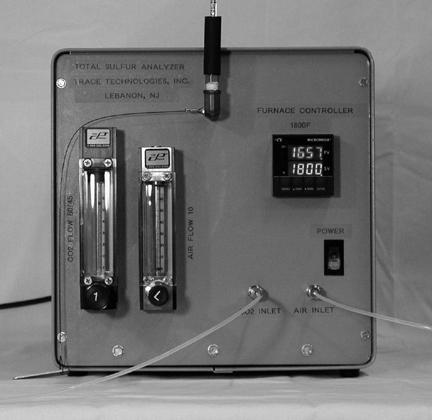

Carbon Dioxide Analysis, Total Sulfur Analyzer
(TSA) |
Click on the picture for a
larger view |
| T-11-350 |
Total Sulfur Analyzer |
|
 |
The Total Sulfur Analyzer (TSA) instrument is designed as a convenient, reliable, and economical way for beverage-grade CO2 producers and beverage bottlers to analyze their CO2 for trace levels of sulfur contamination on site.
This convenient, inexpensive, and easy to use instrument provides the complete total sulfur analysis of a regulated gaseous CO2 supply within several minutes and will reproducibly detect 50 parts per billion total sulfur content. The TSA is supplied with regulated gaseous CO2 from vaporized liquid, and a high purity grade regulated air supply. The
Vaporization Module (CVM), T-11-353, and the Air Purification System (APS), T-11-351, both available separately are recommended for use with the TSA.
All contaminant sulfur compounds are catalytically oxidized to SO2 and subsequently analyzed by a SO2 detector tube. The internal components are either Silcosteel® coated stainless steel or Teflon for complete inertness.
|
|
RETURN |
|
Carbon Dioxide Analysis, TSA, Air Purification System |
Click on the picture for a
larger view |
| T-11-351 |
Air Purification System |
|
|
The Air Purification System (APS) is designed for the convenient and reliable generation of a continuous supply of high-purity, hydrocarbon, moisture, and sulfur free air from the surrounding ambient environment.
This reliable and inexpensive system provides a source of high purity air designed to compliment the Total Sulfur Analyzer (TSA). The TSA requires high purity air as a source of oxygen for the catalytic oxidation of contaminant sulfur compounds to SO2 for analysis. Any sulfur contamination in the air source will cause erroneous results in the operation of the TSA. The APS is enclosed in a durable instrument box and utilizes an internal air pump and a series of traps and filters to ensure the production a high-purity air supply |
|
RETURN |
|

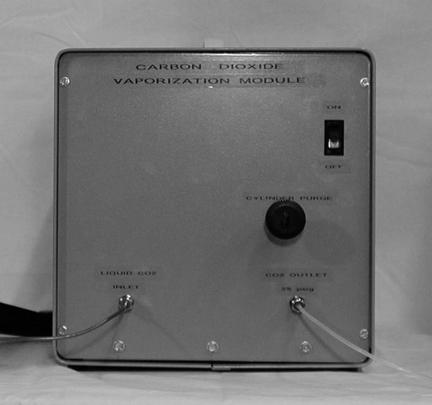

Carbon Dioxide Analysis, TSA, Vaporization Module |
Click on the picture for a
larger view |
|
|
 |
| T-11-352 |
Liquid C02 Vaporization Model I |
| T-11-353 |
Liquid CO2 Vaporization Model II |
|
The Liquid CO2 Vaporization Module (CVM) is designed for the safe and efficient vaporization of liquid CO2 to a homogeneous, regulated gaseous output via a completely inert channel.
Model I for use with TSA (T-11-150) and DTM (T-11-356)
Model II for use with Odor/Taste/Appearance (T-11-357) and low pressure outlet
Demanding ISBT requirements for CO2 include all specifications to be met on the bulk liquid CO2 storage. The complete vaporization of liquid CO2 without any vapor/liquid partitioning is essential to the accurate analysis of the sample. The CVM safely introduces small volumes of liquid CO2 into a heated expansion chamber as required without the chance of over-filling or over-pressurizing. The CVM possesses a high pressure cryogenic solenoid valve, safety fuses, and pressure relief valves for safety. All internal channels of the CVM are either inert Silcosteel® coated stainless steel or inert Teflon. |
|
RETURN |
|

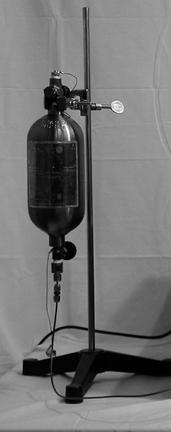

Carbon Dioxide Analysis, Various Accessories |
Click on the picture for a
larger view |
| T-11-361 |
SDP-1 CO2 Sample Chamber |
| T-11-362 |
DIT-3P Sampling Line, 3 Ft. |
| T-11-354 |
CSA-4 Cylinder Support Assembly |
| T-11-358 |
SBL-2 Non-Volatile Residue Kit |
|
|
Gathered together under this catagory are a number of different accesssories necessary for proper CO2 analysis.
The SDP-1 sample chamber (T-11-361) is designed to properly and safely sample Liquid CO2 from bulk storage for transportation to testing facilities. The chamber is completely passivated using Silcosteelâ technology to prevent cylinder-wall adsorption of trace CO2 contaminants. The use of a dip-tube-equipped valve for sampling insures the safe and efficient sampling of approximately 1 pound of liquid CO2. The chamber contains a stainless steel combination valve with 1800 psig burst disk and with a 316 stainless steel dip-tube. The inlet valve is ¼” NPT male/male with a ¼" compression tube male to ¼” NPT female fitting to compliment the DIT-3P Sampling Tubing. The SDP-1 is fully quality checked for safety, reliability, and cleanliness before shipment.
The DIT-3P Sampling Line (T-11-362) is a rugged, flexible, 3 ft., 3/16” ID, PTFE-lined, stainless steel braided flexible tube (3,000 psig rated), with Silcosteelâ coated, ¼” compression fittings. The sampling line is designed for connecting an SDP-1 cylinder to a liquid CO2 tank sampling valve.
The CSA-4 Cylinder Support Assembly (T-11-354) consists of a sturdy iron 25” tripod support rod plus upper and lower cylinder clamps. The CSA-4 provides the secure, vertical mounting of the SDP-1 Liquid CO2 Sampling Cylinder during testing procedures.
The SBL-2 kit (T-11-358) consists of a pre-cleaned, ready-for-use, electropolished 2-Liter stainless steel beaker and lid with handle unit. It is specifically designed for use in CGA and ISBT type tests for non-volatile residue and non-volatile organic residue in liquid CO2. Approximately 400 to 600 grams of CO2 snow is added to the SBL beaker and allowed to evaporate. The unique advantages of this SBL-2 Kit are its ruggedness and, because of its highly reflective interior surface, users can easily detect any trace, non-volatile contaminants after snow evaporation. The use of the Snow-500S Kit is recommended for CO2 Snow collection. |
 |
|
RETURN |
|

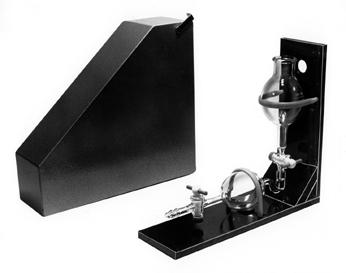

Carbon Dioxide Purity Tester, Zahm |
Click on the picture for a
larger view |
| T-03-010 |
Unit, complete, 0.1% calibration |
| T-03-027 |
Unit, complete, 0.01% calibration |
|
 |
| The improved Zahm Gas Purity Tester makes testing simple, fool proof and clean. The unit is mounted on a Bakelite frame with the absorption bulb securely held by rubber covered bands. Bulbs are equipped with Teflon stopcocks and the unit is housed in a metal case. |
|
RETURN |
|
Carbon Dioxide Purity Tester, Zahm, Replacement Parts |
|
| T-03-007 |
"A" bulb, 99% to 100% in 0.1% increments |
| T-03-008 |
"E" bulb, caustic reservoir |
| T-03-009 |
Hose Connection |
| T-03-011 |
Rubber covered band w/nuts, "A" bulb |
| T-03-012 |
Rubber covered band w/nuts, "E" bulb |
|
| T-03-013 |
Metal case only |
| T-03-014 |
Frame, 2 piece w/Center Block |
| T-03-015 |
Calibrated platinum wire bulb, 0.01% |
| T-03-016 |
Rubber covered bands for platinum bulb |
| T-03-150 |
Teflon Stopcock, Replacement |
|
|
RETURN |
|
Carbon Dioxide Testing Service (Off Site), Beverage Grade Final Product |
|
| T-11-355 |
CO2 Analytical Testing |
|
This is an analytical testing service provided by the industries leading independent beverage-grade carbon dioxide analysis company. The testing utilizes all industry validated analytical instrument methodology to provide a complete CO2 product analysis designed to meet the strictest impurity specifications in the industry.
Testing includes: Volatile Hydrocarbon, Volatile Oxygenate, and Volatile Sulfur Compound speciation by GC; Carbon Monoxide and Benzene by GC; Moisture by EH, Non-Condensible Gases and Purity by MS; Oil and Particulates by Gravimetry; FT-IR trace contaminant analysis; THC, PH3, NH3, NOx, HCN, VCl, Odor/Taste/Appearance. Domestic customers may submit samples in their own CO2 Liquid sampling cylinder, or rent a sampling cylinder. International customers are encouraged to utilize the TBK-4, SBL, and SSC sampling equipment designed for international shipment as Non-Hazardous Material. |
|
RETURN |
|
Carbon Dioxide Testing Service (Off Site), Raw Gas |
|
