- Valve, Ball, Flush, Stainless Steel
- Valve, Ball, NPT, Type 316 Stainless Steel
- Valve, Ball, Sanitary, Tri-Clamp
- Valve, Butterfly, Alpha-Laval
- Valve, Butterfly, Stainless Steel
- Valve, Cock (Pet, Sampling, Tee Handle and Three Way), Stainless Steel
- Valve, Flush, Sanitary, Stainless Steel
- Valve, Plug, Miniature, Stainless Steel
- Valve, Pressure Release, Stainless Steel
- Wash Down Equipment, Hose Nozzle, Water Saver
- Wash Down Equipment, Mixing Station
- Wash Down Equipment, Spray Nozzle
- Waste Receptacle, Dome Top, Stainless Steel
- Waste Receptacle, Step On, Stainless Steel
- Waste Receptacle, Swing Top, Stainless Steel
|
RETURN |
|

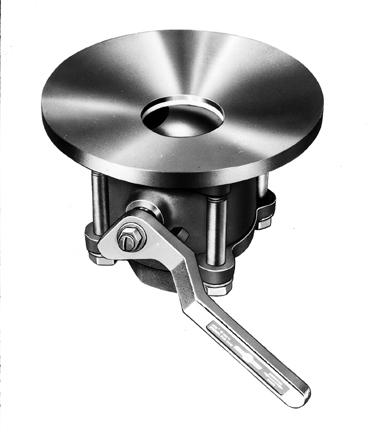

Valve, Ball, Flush, Stainless Steel |
Click on the picture for a larger image |
|
|
|
| Fabricated of type 316 stainless steel, these valves are available with a variety of end fittings: male and female NPT, butt weld, socket weld, 150 pound flange and 300 pound flange. Sizes: 1", 1-1/2", 2", 3", 4", 6" and 8". |
|
RETURN |
|

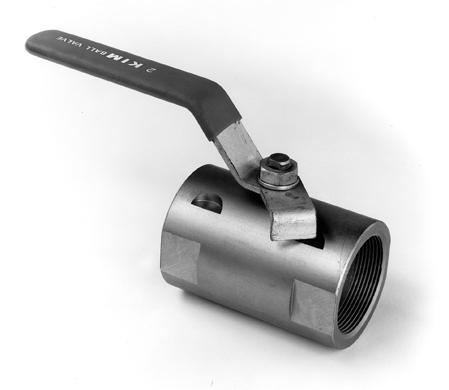

Valve, Ball, NPT, Type 316 Stainless Steel |
Click on the picture for a larger image |
| T-23-188 |
1/4", FNPT |
| T-23-189 |
3/8", FNPT |
| T-23-190 |
1/2", FNPT |
| T-23-191 |
3/4", FNPT |
| T-23-192 |
1", FNPT |
| T-23-193 |
1-1/4", FNPT |
| T-23-194 |
1-1/2", FNPT |
| T-23-195 |
2", FNPT |
|
|
|
|
RETURN |
|

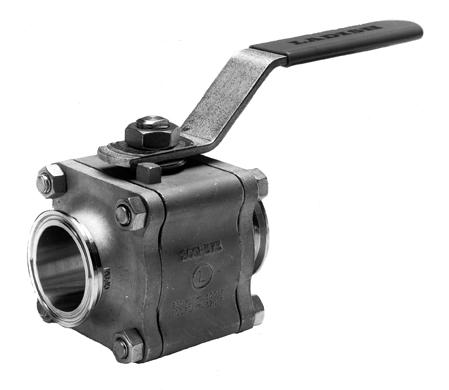

Valve, Ball, Sanitary, Tri-Clamp |
Click on the picture for a larger image |
| T-23-178 |
1", standard seat |
| T-23-179 |
1-1/2", standard seat |
| T-23-180 |
2", standard seat |
| T-23-181 |
3", standard seat |
| T-23-182 |
4", standard seat |
| T-23-183 |
1", encapsulated seat |
| T-23-181 |
1-1/2", encapsulated seat |
| T-23-185 |
2", encapsulated seat |
| T-23-186 |
3", encapsulated seat |
| T-23-187 |
4", encapsulated seat |
|
|
| Tri-Clover Tri-Clamp ball valves are constructed of type 316 stainless steel with Teflon seats and seals. |
|
RETURN |
|

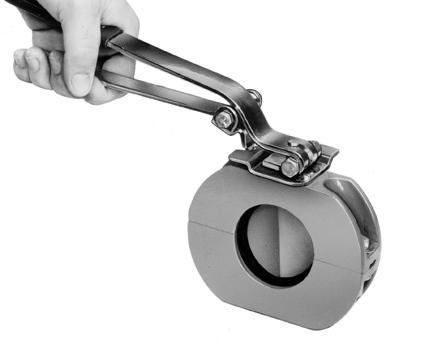

Valve, Butterfly, Alpha-Laval |
Click on the picture for a larger image |
| T-23-197 |
1 1/2" |
| T-23-198 |
2" |
| T-23-199 |
2-1/2" |
| T-23-200 |
3" |
| T-23-201 |
4" |
|
|
| Aluminum alloy body with stainless steel wetted parts. End connections are available separately. Please inquire. |
|
RETURN |
|

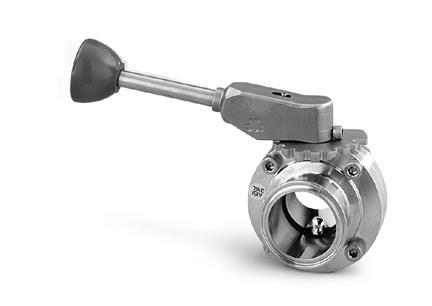

Valve, Butterfly, Stainless Steel |
Click on the picture for a larger image |
| T-30-218 |
1" dia, butt weld |
| T-30-219 |
1-1/2" dia, butt weld |
| T-30-220 |
2" dia, butt weld |
| T-30-221 |
2-1/2" dia, butt weld |
| T-30-222 |
3" dia, butt weld |
| T-30-223 |
4" dia, butt weld |
| T-30-224 |
1" dia, clamp end |
| T-30-225 |
1-1/2" dia, clamp end |
| T-30-226 |
2" dia, clamp end |
| T-30-227 |
2-1/2" dia, clamp end $ |
| T-30-228 |
3" dia, clamp end |
| T-30-229 |
4" dia, clamp end |
|
|
|
|
RETURN |
|

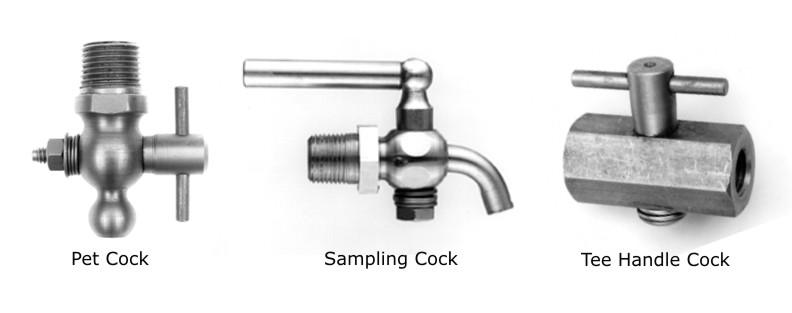

Valve, Cock (Pet, Sampling, Tee Handle and Three Way), Stainless Steel |
Click on the picture for a larger image |
| T-23-101 |
Tee handle cock, 1/8" FNPT |
| T-23-105 |
Tee handle cock, 1/4" FNPT |
| T-23-106 |
Tee handle cock, 3/8" FNPT |
| T-23-107 |
Pet cock, 1/8" MNPT |
| T-23-109 |
Pet cock, 1/4" MNPT |
| T-23-110 |
Pet cock, 3/8" MNPT |
| T-23-111 |
Pet cock, 1/2" MNPT |
| T-23-102 |
Three way cock, 1/2" FNPT |
| T-23-108 |
Three way cock, 1" FNPT |
| T-23-281 |
Sampling cock, 1/8", MNPT |
| T-23-282 |
Sampling cock, 1/4", MNPT |
| T-23-284 |
Sampling cock, 3/8", MNPT |
| T-23-285 |
Sampling cock, 1/2", MNPT |
|
|
These cocks are precision made out of T-316 stainless steel.
The pet cock has interior teflon seals.
The sampling cock has tapered teflon seals. It is available with clamp ends. |
|
RETURN |
|

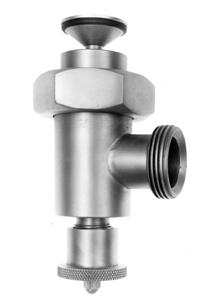

Valve, Flush, Sanitary, Stainless Steel |
Click on the picture for a larger image |
| T-30-162 |
1" outlet (fits 1-1/2" tank outlet) |
| T-30-163 |
1-1/2" outlet (fits 2" tank outlet) |
| T-30-164 |
2" outlet (fits 2-1/2" tank outlet) |
| T-30-165 |
3" outlet (fits 4" tank outlet) |
|
|
| These valves combine low cost with sanitary design. There is no sediment build-up in the bottom opening and it is easily dismantled. Specify bevel seat or sanitary tri-clamp fittings. |
|
RETURN |
|
Valve, Plug, Miniature, Stainless Steel |
Click on the picture for a larger image |
| T-23-112 |
1/4" MNPT |
| T-23-114 |
1/8" MNPT |
|
|
|
|
RETURN |
|

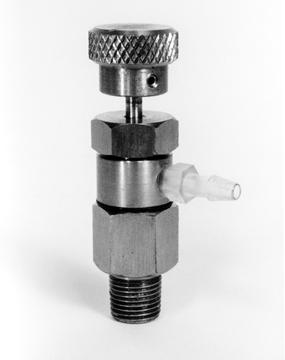

Valve, Pressure Release, Stainless Steel |
| T-03-574 |
Valve, Pressure Release Rotation |
|
|
This unique valve functions in two ways. Press the knob in to open the valve. Press the knob in and rotate it 90 degrees and the valve remains open. Rotate the valve 90 degrees and the valve closes.
Another unique feature of this valve is that it can be taken apart completely in the field. It can be cleaned in place or removed for sterilization.
Our standard valve is 1/8" MNPT on the input side and 10/32 on the output side with a plastic 1/8" soft tube connector. The valve can also be supplied with 1/4" MNPT on the input side and/or 10/32 o-ring sealed, stainless steel soft tube connector for up to 1/4" ID tube. Please specify soft tube ID required.
Manufactured in T-303 stainless steel, the valve can also be supplied in T-304 or T-316. Please inquire. |
|
RETURN |
|
Wash Down Equipment, Hose Nozzle, Water Saver |
Click on the picture for a larger image |
| T-24-101 |
Regular stream of water |
| T-24-103 |
Concentrated stream of water |
|
|
| A terrific unit for saving water. Pick it up and it is on. Drop it and it is off. 3/4" garden hose connection. Temperature range up to 150 degree F. |
|
RETURN |
|

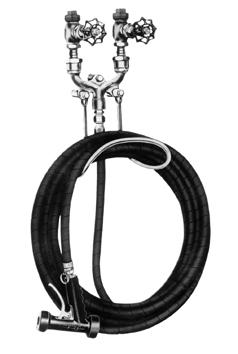

Wash Down Equipment, Mixing Station |
Click on the picture for a larger image |
| T-19-151 |
Includes spray hose |
| T-19-154 |
With indicator and spray hose |
|
|
|
|
RETURN |
|
Wash Down Equipment, Spray Nozzle |
Click on the picture for a larger image |
| T-19-162 |
Black covered nozzle |
| T-19-164 |
White covered nozzle |
| T-19-166 |
Red covered nozzle |
| T-19-170 |
Swivel adapter for Strahman nozzle |
|
|
| The Strahman spray nozzle is a precision unit which provides every adjustable stream of water with an automatic shut off. From soft spray to a strong straight stream, this nozzle assures better cleaning with less effort and less waste. The protective rubber cover is replaceable. |
|
RETURN |
|
Waste Receptacle, Dome Top, Stainless Steel |
Click on the picture for a larger image |
| T-22-185 |
15 gal, 37" h x 15" dia |
|
|
| A classic design combining a highly polished stainless steel body with a chrome-plated top. It features a self-closing stainless steel door in the dome and a distinctive stainless bottom trim rolled under to protect floors. The stainless steel shell lifts off to to allow for easy emptying of the fire-safe galvanized inner liner. UL listed. |
|
RETURN |
|
Waste Receptacle, Step On, Stainless Steel |
Click on the picture for a larger image |
| T-22-180 |
4 gal, 13" h x 11-3/4" w x 13" d |
| T-22-181 |
6 gal, 16" h x 11-3/4" w x 13" d |
| T-22-182 |
8 gal, 21" h x 11-3/4" w x 13" d |
| T-22-183 |
10 gal, 20" h x 13" w x 14" d |
|
|
| The ideal container for sanitary waste collection. The self-closing lid is controlled by a front-mounted foot pedal and a heavy-duty linkage mechanism. Durable heavy gauge stainless steel prevents rusting and provides for easy cleaning. An internal bail mechanism secures the top of the disposable bag and there are no liners to clean or replace. |
|
RETURN |
|

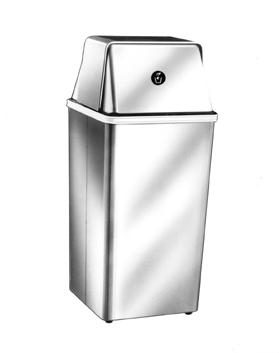

Waste Receptacle, Swing Top, Stainless Steel |
Click on the picture for a larger image |
| T-22-187 |
13 gal, 12-1/2" x 12-1/2" x 29-1/2" h |
| T-22-188 |
21 gal, 14" x 14" x 37 1/3" h |
| T-22-189 |
36 gal, 18" x 18" x 37-1/2" h |
|
|
| Good looking, sturdy design in satin finished stainless steel. The top offers self-closing doors plus abrasion resistant vinyl wall bumpers. Rubber feet keep the floor unblemished. Hooks hold liners. |
|
RETURN |
|
|
|
|
|
