Stainless Steel Products

Processing equipment, laboratory supplies and instrumentation for the soft drink, food, chemical, pharmaceutical, water, and waste water industries.

Your product quality is our business.
  • Table, Sanitary, Laboratory, w/Drawers, Stainless Steel
  • Table, Wall Mounted, Stainless Steel
  • Table, Work, Stainless Steel
  • Tank Brush
  • Tank Brush Handle
  • Tank Brush, Tufted
  • Tank Cleaner, Rota-Ball, Stainless Steel
  • Tank Cleaner, Spray Ball, Stainless Steel
  • Tank Cleaner, Turbodisc, Stainless Steel
  • Tank Dip Stick, Measuring, Stainless Steel
  • Tank Hose Goosenecks, Stainless Steel
  • Tank Mixer, Top and Side Entering (see Mixer, Side Entering, Without Motor)
  • Tank Sight Gauge Fittings, Stainless Steel
  • Tank Sight Gauge Tube, Sanitary
  • Tank Sight Gauge Tubes, Teflon, Sanitary
  • Tank Sight Gauge View Port, Stainless Steel
  • Tank Strainer, Stainless Steel
  • Tank, Jacketed, Stainless Steel
  • Tank, Reaction, Stainless Steel
  • Tank, Single Wall, Stainless Steel
  • Tray, Stainless Steel
  • Tri-Clamp Fittings (see Fittings, Tri-Clamp, Stainless Steel)
  • Tri-Clamp Gaskets (see Fittings, Tri-Clamp, Gasket)
  • Trough, Sanitary Stainless Steel (see Truck, Sanitary, Stainless Steel)
  • Truck, Sanitary, Stainless Steel
  • Tubing (Soft) Clamp, Stainless Steel
  • Tubing, Sanitary, Stainless Steel

  • RETURN

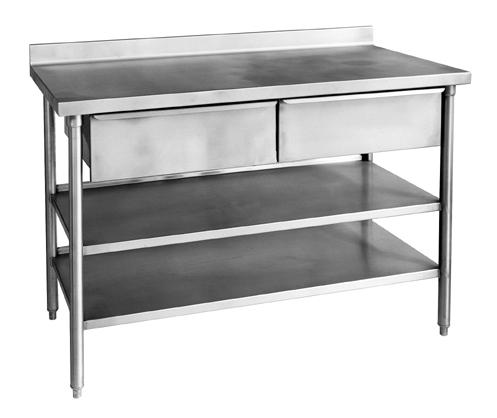

    Table, Sanitary, Laboratory, w/Drawers, Stainless Steel

    Click on the picture for a larger image
    T-22-100  54" x 25" x 36" high

    Rugged, sanitary and corrosion resistant. The unit has two pull-out drawers, 20" x 5" deep, which are seamless and removable for cleaning. It has two full length open shelves, a 4" backsplash and 4 legs with adjustable feet.

    RETURN

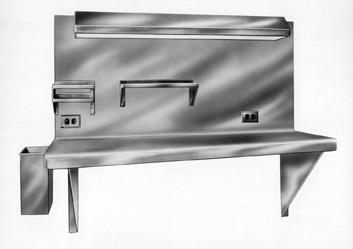

    Table, Wall Mounted, Stainless Steel

    Click on the picture for a larger image
    T-30-112  Without backsplash
    T-30-302 With backsplash

    Custom fabricated to your specifications, these units can incorporate any number of accessories, including power outlets, backsplash and shelves. T-304 stainless steel. Please inquire with requirements for a price quote.

    RETURN

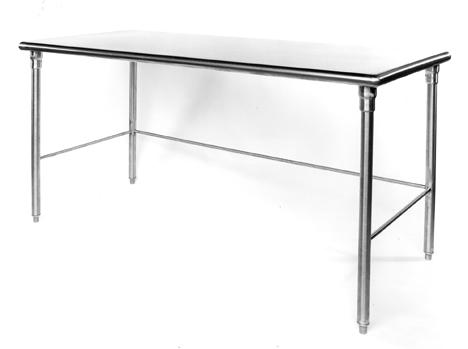

    Table, Work, Stainless Steel
    T-22-099 32" w x 48"
    T-22-101 24" w x 44"
    T-22-102 24" w x 48"
    T-22-103 24" w x 72"
    T-22-104 24" w x 92"
    T-22-106 24" w x 116"
    T-22-107 32" w x 44"
    T-22-108 32" w x 72"
    T-22-109 32" w x 92"
    T-22-111 32" w x 116"
    T-22-112 36" w x 92"
    T-22-113 36" w x 116"

    Sanitary, reinforced, rugged and corrosion resistant. The working height is 34". The top is 14 gauge, T-304 stainless steel. All edges are turned down with the corners welded and ground smooth. The tubular legs are braced and have adjustable bullet feet. Tables over 92" are equipped with six legs.

    Shelves and one or two drawers are available at additional cost. Special sizes can be fabricated. Tables can be furnished with 4" rubber tired roller bearing swivel casters, with or without locks, at additional cost. T-316 stainless steel is also available.

    RETURN

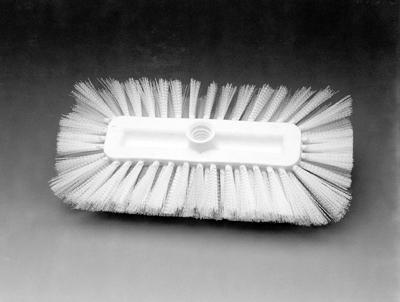

    Tank Brush

    Click on the picture for a larger image
    T-19-190  Brush only, white nylon, 5-3/4" x 11-3/4"

    Sanitary, all plastic tank brush. No tuft holes means no bacteria build up. Solid block prevents cracking or chipping. Bristle fallout has been virtually eliminated since every strand is fused into solid epoxy.

    RETURN

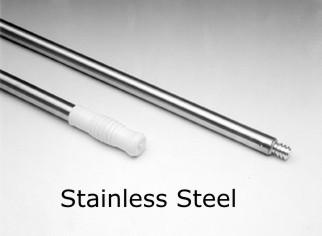

    Tank Brush Handle

    Click on the picture for a larger image
    T-19-192  Handle, lacquered hardwood, 1-1/8" x 60"
    T-19-196  Handle, stainless steel, 1" x 60"
    T-19-214  Handle, fiberglass, 1" x 60"
    T-19-217  Handle, plastic, 1" x 60"

    RETURN

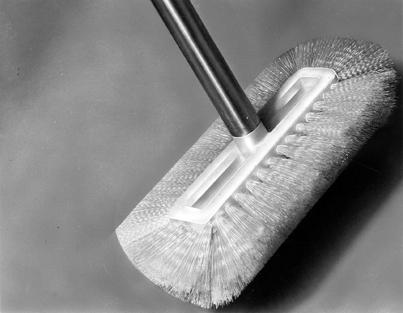

    Tank Brush, Tufted

    Click on the picture for a larger image
    T-19-191  Brush only w/ss staples, 6" x l2"

    Tufts are anchored with stainless steel staples into machined holes.

    RETURN

    Tank Cleaner, Rota-Ball, Stainless Steel

    Click on the picture for a larger image
    T-30-206  Closed head
    T-30-207  Open head

    RETURN

    Tank Cleaner, Spray Ball, Stainless Steel

    Click on the picture for a larger image
    T-30-201 2
    T-30-202  2-1/2" dia
    T-30-203  3"

    Please specify 180 or 360 deg spray pattern and fitting size.

    RETURN

    Tank Cleaner, Turbodisc, Stainless Steel

    Click on the picture for a larger image
    T-30-204  Model 100, 1" size
    T-30-205 Model 150, 1-1/2" size

    Please specify 180 or 360 deg spray pattern.

    RETURN

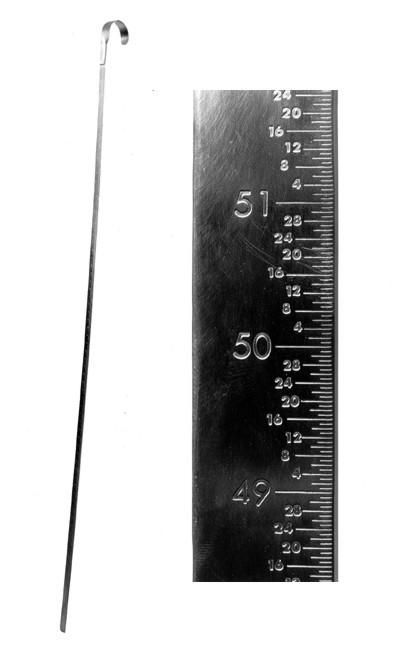

    Tank Dip Stick, Measuring, Stainless Steel

    Click on the picture for a larger image
    T-19-174  Up to 4 ft
    T-19-175 Up to 8 ft
    T-19-177  Up to 12 ft

    Rigid back with open loop handle for hanging. Calibrated in 1/32" increments. Sanitary. Fabricated from type 304 stainless steel. Other sizes on request.

    RETURN

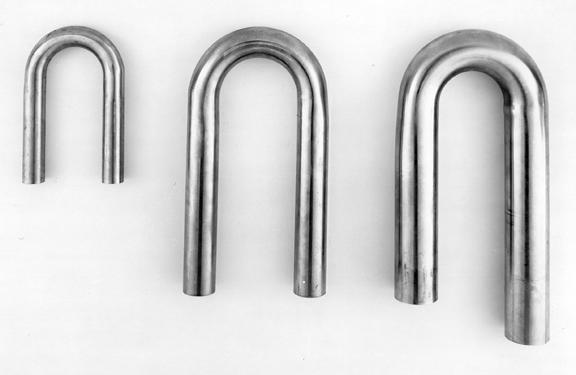

    Tank Hose Goosenecks, Stainless Steel

    Click on the picture for a larger image
    T-17-152   For 1" ID hose
    T-17-153 For 1-1/2" ID hose
    T-17-154 2" ID hose

    Polished sanitary stainless steel "U" bends for hooking onto storage tanks, mixing tanks, drums and other containers. Helps prevent product loss due to hose slipping. Type 316 stainless steel.

    RETURN

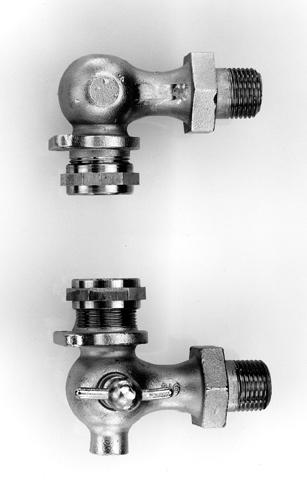

    Tank Sight Gauge Fittings, Stainless Steel

    Click on the picture for a larger image
    T-23-150  1/2" MNPT (non-sanitary)
    T-23-168 3/4" MNPT (non-sanitary

    For 5/8 inch glass or polycarbonate tubing. Tubing sold separately.

    RETURN

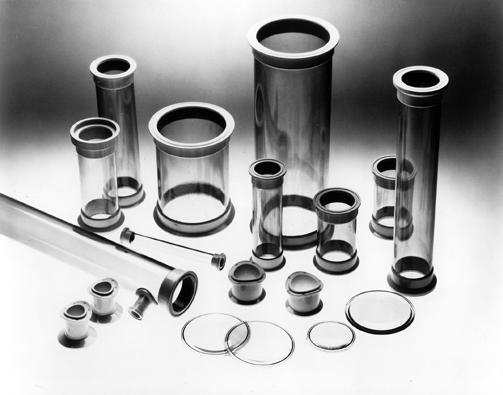

    Tank Sight Gauge Tube, Sanitary

    Click on the picture for a larger image
    T-19-178 PS, 1" x 6" length
    T-19-179 PS, 1" x 12" length
    T-19-180  PS, 1" x 24" length
    T-19-181  PS, 1" x 36" length
    T-19-182  C, 1" x 6" length
    T-19-183   C, 1" x 12" length
    T-19-184  C, 1" x 24" length
    T-19-185  C, 1" x 36" length
    T-19-186  T, 1" x 6" length
    T-19-187  T, 1" x 12" length
    T-19-188  T, 1" x 24" length
    T-19-189  T, 1" x 36" length

    Clear or translucent liquid level gauge tubes are equipped with unitized sanitary flanged ferrule ends. Just give us your fitting size and length and we will provide the tubing to fit your needs.
    Maximum working temperatures are:
    Sani-Pro PS (Polysulphone)(Clear) 250F
    Sani-Pro C (Polyvinyl Chloride) (Clear) 120F
    Sani-Pro T (Polypropylene) (Translucent) 180F

    Available in 1/2", 1", 2", 3" and 4" diameter in any length up to a maximum of 120".

    RETURN

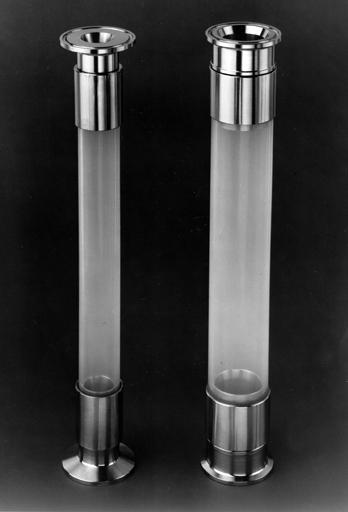

    Tank Sight Gauge Tubes, Teflon, Sanitary

    Click on the picture for a larger image
    T-19-251 1" x 24"
    T-19-252  1" x 36"
    T-19-253 1" x 48"
    T-19-254  1" x 60"

    High temperature, chemically resistant Teflon sight gauge tubes are ideal for use in applications where extreme heat, corrosives or abrasives are a factor. A new translucent white Teflon, bacteria free, autoclavable, with clamp ends meet FDA, USDA and Pharmacopeia XXI Class VI Standards. Other diameters are available.

    RETURN

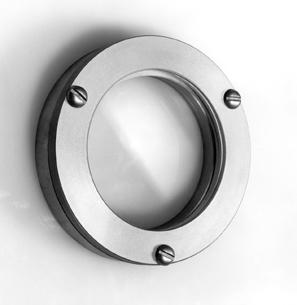

    Tank Sight Gauge View Port, Stainless Steel

    Click on the picture for a larger image
    T-30-200  Unit, complete

    An economical tank view port that is constructed of T-304 or T-316 stainless steel, this unit is 5" dia x 1-1/4" deep. The Pyrex glass can withstand 300 deg. F and 60 psi.

    RETURN

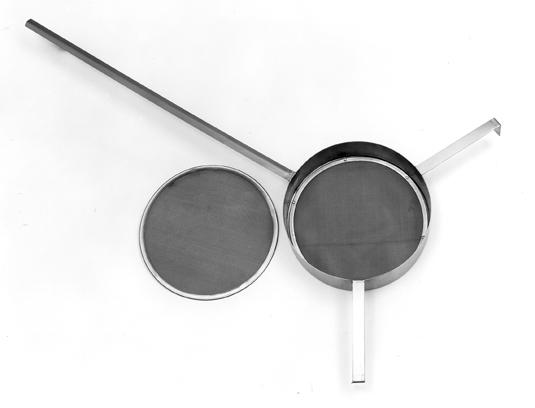

    Tank Strainer, Stainless Steel

    Click on the picture for a larger image
    T-17-120 Complete, 13" dia, 60 mesh
    T-17-122 Sieve only, 13" dia
    T-17-125 Complete, 18" dia, 60 mesh
    T-17-127  Sieve only, 18" dia

    Standard 60 mesh replaceable sieve in 13" diameter x 3" deep body. Welded extension arms for resting on tanks from 14" to 33" in diameter. Retractable extension arm available for use on tanks larger than 33" in diameter. Sieves in 20, 40, 80 and 100 mesh also available.

    RETURN

    Tank, Jacketed, Stainless Steel
    These units are custom fabrications. Please let us know your requirements (size, pressure, etc.) and we would be pleased to quote.

    Tank, Reaction, Stainless Steel

    A variety of special purpose tanks are available. Please inquire.

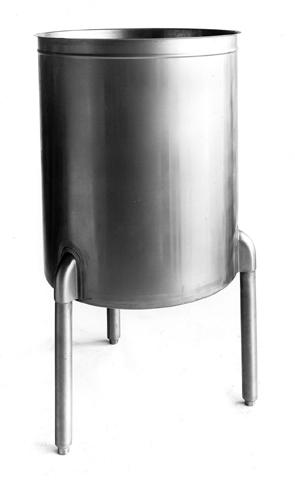

    Tank, Single Wall, Stainless Steel
    T-22-114 25 gal (34 gal actual), 20" dia, 24" d, 41" h, 16 ga
    T-22-115 35 gal (40 gal actual), 20" dia, 30" d, 47" h, 16 ga
    T-22-116 60 gal (70 gal actual), 24" dia, 36" d, 53" h 16 ga
    T-22-117 100 gal (110 gal actual), 30" dia, 36" d, 53" 16 ga
    T-22-118 160 gal (188 gal actual), 34" dia, 48" d, 65" h, 16 ga
    T-22-119 200 gal (236 gal actual), 38" dia, 48" d, 65" h, 14 ga
    T-22-120 300 gal (335 gal actual), 45" dia, 48" d, 65" h, 14 ga
    T-22-121 400 gal (438 gal actual), 52" dia, 48" d, 65" h, 14 ga
    T-22-122 500 gal (548 gal actual), 52" dia, 60" d, 75" h, 14 ga
    T-22-123 700 gal (760 gal actual), 56" dia, 72" d, 90" h, 14 ga
    T-22-123 000 gal (1040 gal actual), 69" dia, 72" d, 87" h, 12 ga
    T-22-124 1500 gal (1540 gal actual), 83" dia, 72" d, 87" h, 12 ga
    T-22-125  2000 gal (2035 gal actual), 83" dia, 96" d, 111" ht, 12 ga

    Sanitary seamless construction. T-304 stainless steel is standard but T-316 can be special ordered. Economical and long lasting. All tanks can be equipped to meet your particular processing requirements. Special sizes can be fabricated and stock sizes can be modified to meet your needs.

    Considerations in purchasing a tank:
    1. Capacity in gallons.
    2. Dimensions.
    3. Construction material.
    4. Fittings and/or valves required.
    5. Cover.
    6. Heating and/or cooling required.
    7. Mixing required.

    RETURN

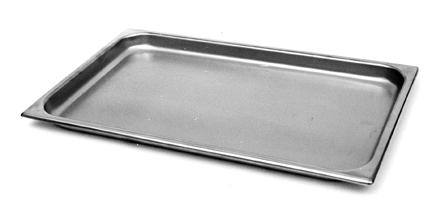

    Tray, Stainless Steel

    Click on the picture for a larger image
    T-30-257 13-5/8" l x 9-3/4" w x 5/8" h
    T-30-258 15-1/8" l x 10-1/2" w x 5/8" h
    T-30-259 17-1/8" l x 11-5/8" w x 5/8" h
    T-30-260 19" l x 12-1/2" w x 5/8" h
    T-30-261 21-1/4" l x 16-1/4" w x 7/8" h

    RETURN

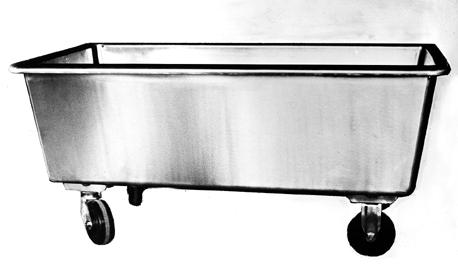

    Truck, Sanitary, Stainless Steel

    Click on the picture for a larger image
    T-30-190  31-1/2" w x 72" l X 33-3/4" d
    T-30-191 31-1/2" w x 86" l x 33-3/4" d
    T-30-192  31-1/2" w x 120" l x 33-3/4" d
    T-30-193  31-1/2" w x 144" l x 33-3/4" d
    T-30-194  31-1/2" w x 72" l x 23-3/4" d
    T-30-195  31-1/2" w x 86" l x 23-3/4" d
    T-30-196  31-1/2" w x 120" l x 23-3/4" d
    T-30-197  31-1/2" w x 144" l x 23-3/4" d
    T-30-198  26" w x 72" l x 21" d
    T-30-199  26" w x 86" l x 21" d
    T-30-300  Fondant and dough, 22-1/4" x 47" x 16"
    T-30-301 30" x 48" x 24", heavy duty

    RETURN

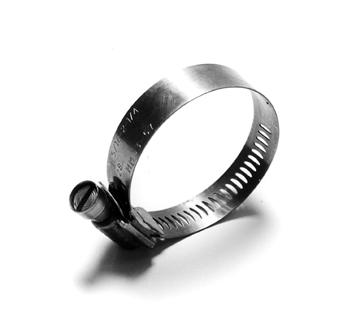

    Tubing (Soft) Clamp, Stainless Steel
    T-23-116  7/16" to 25/32"
    T-23-117 1/2" to 29/32"
    T-23-118 9/16" to 1-1/16"
    T-23-119 11/16" to 1-1/4"
    T-23-120 13/16" to 1-1/2"
    T-23-121 15/16" to 1-3/4"
    T-23-122 1-1/16" to 2"
    T-23-123 1-5/16" to 2-1/4"
    T-23-124 1-9/16" to 2-1/2"
    T-23-125 1-13/16" to 2-3/4"
    T-23-126  2-1/16" to 3"
    T-23-127 2-5/16" to 3-1/4"
    T-23-128 1-9/16" to 3-1/2"
    T-23-129 2-13/16" to 3-3/4"
    T-23-144 2-15/16" to 4"
    T-23-145 3-5/16" to 4-1/4"
    T-23-146  2-9/16" to 4-1/2"
    T-23-147 4-1/8" to 5"

    All stainless steel worm drive clamp. Four piece heavy duty contruction provides substantially more tightening torque. Specify tube or hose outside diameter when ordering. They are available from 3/8" to 5".

    RETURN

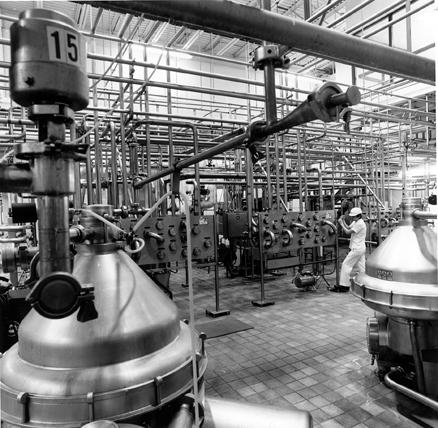

    Tubing, Sanitary, Stainless Steel

    Click on the picture for a larger image
    T-19-301 1" OD, 18 ga
    T-19-302 1" OD, 16 ga
    T-19-303 1-1/2" OD, 18 ga
    T-19-304  1-1/2" OD, 16 ga
    T-19-305  2" OD, 16 ga
    T-19-306 2-1/2" OD, 16 ga
    T-19-307 3" OD, 16 ga
    T-19-308  4" OD, 14 ga

    T-304 stainless steel seamless, welded tubing, polished to 3A standards. Approved for use in food, soft drink and dairy industries, in sizes from 1" to 4". Polished ID and OD. NOTE: 16 gauge tubing is recommended for all weld-on applications. Type 316L stainless available as well as other polish combinations.

    RETURN
