- Desk, Stand Up, Stainless Steel
- Dip Stick, Measuring (see Tank Dip Stick, Measuring, Stainless Steel)
- Dipper, Long Handle, Sanitary
- Dipper, Sampling, Bacteriological
- Dipper, Sampling, Long Handle, Sanitary
- Dipper, Seamless, Jumbo, Round Bottom
- Drum Cover, Loose, Stainless Steel
- Drum Cover, Shipping
- Drum Cradle
- Drum Dolly
- Drum Faucet
- Drum Funnel
- Drum Heater
- Drum, Sanitary, Stainless Steel
- Enclosure, Custom, Stainless, Dust and Weather Tight
- Fabrication, Machining and Turning
- Fabrication, Stainless Steel, Custom
- Faucet, Bibb, Male, Stainless Steel
- Faucet, Drum (see Drum Faucet)
- Filter, Cartridge Type, Stainless Steel
- Filter, Plate and Frame
- Fittings, Bevel Seat, Gasket,
Snap-Tite
- Fittings, Bevel Seat, Stainless Steel
- Fittings, Threaded, NPT, Stainless Steel
- Fittings, Tri-Clamp, Gasket
- Fittings, Tri-Clamp, Stainless Steel

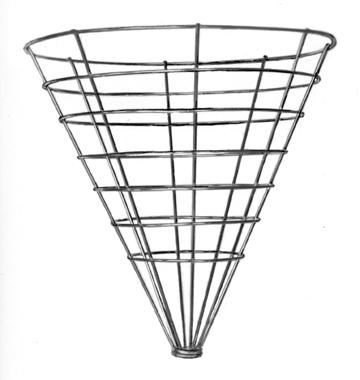

- Funnel Cone, Wire
- Funnel, Filter Paper
- Funnel, Heavy Duty, Stainless Steel
- Funnel, Seamless, Stainless Steel

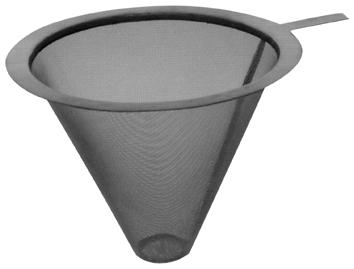

- Funnel, Strainer/Sieve, Mesh
- Garbage Can, Dome Top, Stainless Steel (see Waste
Receptacle, Dome Top, Stainless Steel)
- Garbage Can, Step On, Stainless Steel (see Waste
Receptacle, Step On, Stainless Steel)
- Garbage Can, Swing Top, Stainless Steel (see Waste
Receptacle, Swing Top, Stainless Steel)
- Gasket, Bevel Seat (see Fittings, Bevel Seat,
Gasket, Snap-Tite)
- Gasket, Custom
- Gasket, Tri-Clamp (see Fittings, Tri-Clamp, Gasket)
|
RETURN |
|

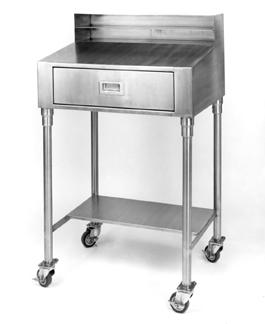

Desk, Stand Up, Stainless Steel |
Click on the image for a larger picture |
|
|
|
| All T-304 stainless steel construction with a top writing surface 16" x 30". Two organizer shelves on top and one drawer for storage. Overall dimensions are 25" x 30" x 52" high. |
|
RETURN |
|

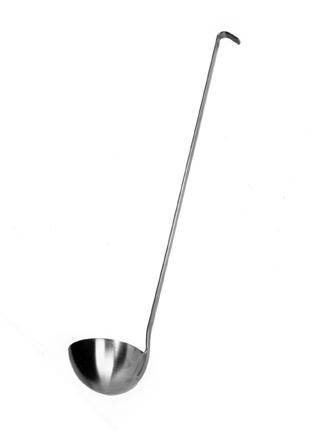

Dipper, Long Handle, Sanitary |
Click on the image for a larger picture |
| T-21-302 |
1 oz, 10" handle, round bottom |
| T-21-303 |
2 oz, 10" handle, round bottom |
| T-21-304 |
4 oz, 13" handle, round bottom |
| T-21-306 |
6 oz, 13" handle, round bottom |
| T-21-307 |
8 oz, 13" handle, round bottom |
| T-21-308 |
12 oz, 15" handle, round bottom |
| T-21-309 |
24 oz, 18" handle, round bottom |
| T-21-310 |
72 oz, 18" handle, round bottom |
| T-21-311 |
1 oz, 24" handle, round bottom |
| T-21-312 |
2 oz, 24" handle, round bottom |
| T-21-313 |
4 oz, 24" handle, round bottom |
| T-21-314 |
6 oz, 24" handle, round bottom |
| T-21-315 |
8 oz, 24" handle, round bottom |
| T-21-316 |
16 oz, 24" handle, flat bottom |
| T-21-332 |
32 oz, 24" handle, flat bottom |
|
|
|
|
RETURN |
|

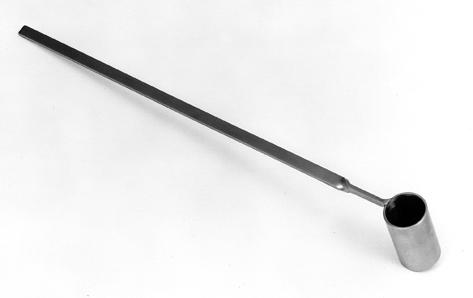

Dipper, Sampling, Bacteriological |
Click on the image for a larger picture |
| T-21-331 |
1 ml |
| T-21-339 |
2 ml |
| T-21-335 |
5 ml |
| T-21-336 |
10 ml |
| T-21-333 |
25 ml |
| T-21-334 |
50 ml |
| T-21-330 |
Set (6): 1, 2, 5, 10, 25 and 50 ml |
|
|
| All stainless steel with 12" long handles. |
|
RETURN |
|

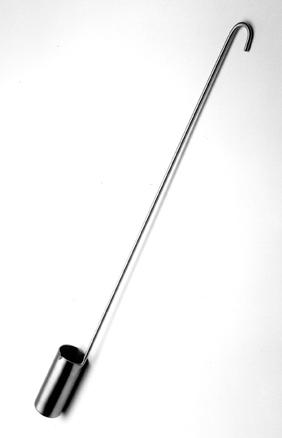

Dipper, Sampling, Long Handle, Sanitary |
Click on the image for a larger picture |
| T-21-321 |
2 oz capacity, 1-5/16" dia |
| T-21-322 |
3 oz capacity, 1-1/2" dia |
| T-21-323 |
4 oz capacity, 2" dia |
| T-21-317 |
10 cc capacity, 1" dia |
| T-21-319 |
20 cc capacity, 1" dia |
| T-21-320 |
30 cc capacity, 1" dia |
|
|
| All stainless steel with 28" long handles. All units fit through the standard 2" drum bung holes. Handles can be extended. Please inquire. |
|
RETURN |
|

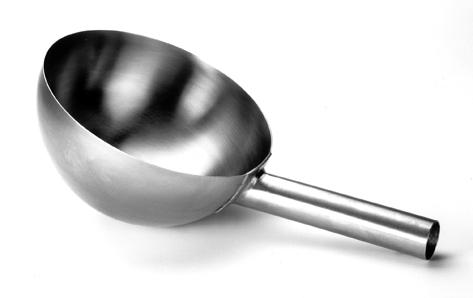

Dipper, Seamless, Jumbo, Round Bottom |
Click on the image for a larger picture |
| T-21-338 |
2 qt, 9-7/8" dia |
| T-21-337 |
4 qt, 7-7/8" dia |
|
|
| Seamless and sanitary with a closed tubular handle. T-304 stainless steel. |
|
RETURN |
|
Drum Cover, Loose, Stainless Steel |
| T-22-152 |
30 ga |
| T-22-153 |
55 ga |
| T-22-154 |
100 gal |
|
T-304 stainless steel. T-316 is available at additional cost. |
|
|
RETURN |
|
Drum Cover, Shipping |
| T-22-158 |
30 gal w/rubber gasket |
| T-22-159 |
55 gal w/rubber gasket |
|
T-304 stainless steel. T-316 is available at additional cost. |
|
|
RETURN |
|

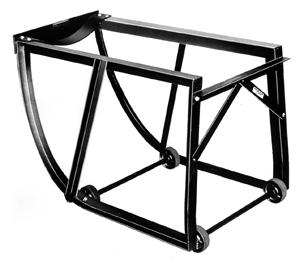

Drum Cradle |
Click on the image for a larger picture |
| T-22-170 |
Painted carbon steel |
| T-22-171 |
Aluminum |
|
|
| Durable and efficient, these cradles are designed for 55 gallon drums (22-1/2 inch diameter). A safety catch on the nose piece and a non-skid surface on the rocker prevents slipping while loading. Available without wheels for use as a storage rack. |
|
RETURN |
|

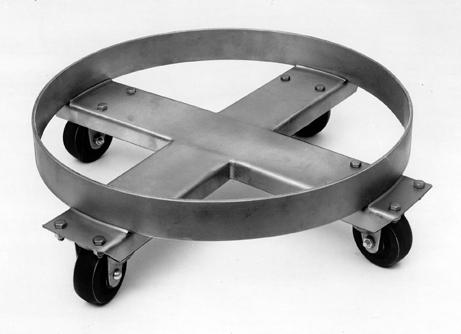

Drum Dolly |
Click on the image for a larger picture |
| T-22-160 |
30 gal, 18-3/4" dia |
| T-22-161 |
55 gal, 23-1/2" dia |
| T-22-162 |
100 gal, 32-1/2" dia |
|
|
| T-304 stainless steel construction. Durable and corrosion resistant. They are equipped with four 3" swivel casters bolted on with composition wheels and roller bearings. Dollies are available in T-316 stainless steel and carbon steel. 1,000 lb rating. Custom sizes available. |
|
RETURN |
|

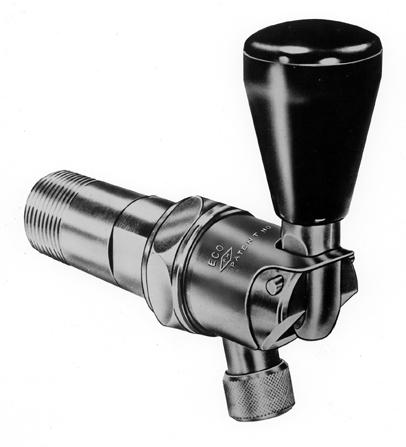

Drum Faucet |
Click on the image for a larger picture |
| T-23-151 |
Unit complete with flame arrestor |
| T-23-152 |
Replacement shank, 3/4" |
| T-23-153 |
Replacement handle arm |
| T-23-154 |
Spring, Stainless Steel |
| T-23-155 |
Plunger |
| T-23-156 |
Pin |
| T-23-157 |
Small "o" ring, Neoprene |
| T-23-158 |
Small "o" ring, Teflon |
| T-23-159 |
Large "o" ring, Neoprene |
| T-23-160 |
Large "O" Ring, Teflon |
| T-23-161 |
Stud |
| T-23-162 |
Black Knob |
| T-23-163 |
Coupling Nut |
| T-23-164 |
Jam Nut |
| T-23-165 |
Body (drum faucet) |
|
|
| Ruggedly fabricated of type 304 stainless steel, this unit has an automatic shut off and positive
drip less operation. The shank threads are 3/4"NPT. The safety flame arrestor provides an anti-flash screen which prevents flame propagation in the dispensing of flammable liquids. It has a self-closing fume and vapor tight design. |
|
RETURN |
|

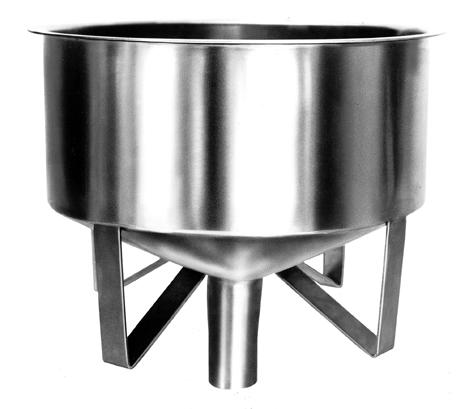

Drum Funnel |
Click on the image for a larger picture |
| T-22-169 |
12" dia x 6" deep |
|
|
| Special sanitary design for filling drums with openings in the side body. All welded, type 304 stainless steel construction. Drum deheaders and drum openers are also available. |
|
RETURN |
|

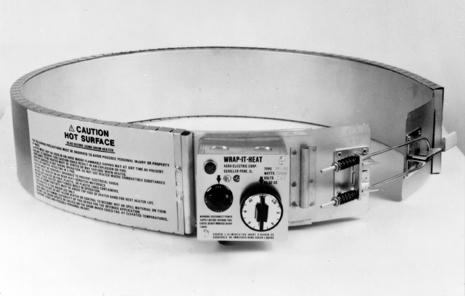

Drum Heater |
Click on the image for a larger picture |
| T-22-163 |
gal, infinite control |
| T-22-164 |
55 gal, three position control |
| T-22-165 |
55 gal, thermostatic control |
| T-22-166 |
30 gal, infinite control |
| T-22-167 |
30 gal, three position control |
|
|
| These electric heaters wrap around the drum. |
|
RETURN |
|

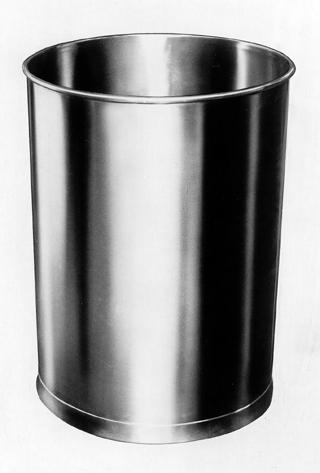

Drum, Sanitary, Stainless Steel |
Click on the image for a larger picture |
| T-22-156 |
55 gal, 22-3/4" dia x 33" high |
| T-22-157 |
100 gal, 30-1/2" dia x 33" high |
| T-30-105 |
100 gal, T-316 ss |
|
|
| Constructed of 16 gauge, T-304 stainless steel, these drums are sanitary with a rolled top edge and reinforced foot ring. With smooth, straight sides they are ideal for storage and mixing. |
|
RETURN |
|

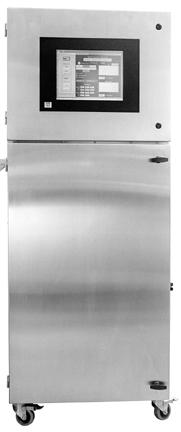

Enclosure, Custom, Stainless, Dust and Weather Tight |
Click on the image for a larger picture |
A variety of dust and weather tight enclosures are manufactured to the customer's specifications. These can be used outside or on the factory floor.
We also offer small enclosures for instruments in stainless steel and aluminum. Please inquire. |
|
Information Required:
1. Size
2. Configuration of doors
3. Ventilation required
4. Electrical or other through-holes
5. Shelves
6. Wheels
Send us your specifications and we would be happy to quote. |
|
RETURN |
|

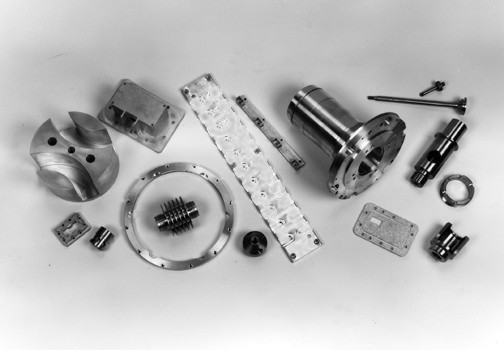

Fabrication, Machining and Turning |
Click on the image for a larger picture |
Olympic Tool Company can handle all of your machining and turning requirements. It is a state-of-the-art shop with a reputation for quality and service. Just ask our customers. Their recommendation is our best advertisement.
Olympic Tool Company provides precise, exacting machine work with two CNC Machining Centers and two CNC Turning Centers. We verify the quality of our work before you ever see it using a Brown & Sharp CMM with SPC charting capabilities.
For the past 20 years we have manufactured parts for a large number of customers, plus the U.S. government. (We have a MIL-L-45208 rating.)
We can handle short and long runs, plus prototype work. While our prices are competitive, it is our quality and service that keep our customers coming back to us. May we serve you? |
|
Automated Equipment:
• CNC Machining Centers - 1 Okada VM46 and 1 Haas VF2
• CNC Turning Centers - 2 Mori Seiki SL3A
Additional Equipment:
Sharp Milling Machine, Sharp 12"x28" Lathe, Do-All 18" Automatic Saw, Harding TFB-H Toolroom Lathe, Boyer-Schultz 6"x18" Grinder, 4 Spindle Drill Press, Hand Miller, Butterfly Die Filer, Vibrator Tub and Endmill Grinder.
Quality Control:
Brown & Sharp Validator CMM with SPC Charting Capabilities. |
|
RETURN |
|
Fabrication, Stainless Steel, Custom |
MasterCraft Stainless Fabrications has a 20 year history of providing the best in fabricated stainless steel products to the food, beverage, chemical, water, wastewater and pharmaceutical companies around the world. It can handle all of your process equipment needs. We would be happy to quote on your requirements.
These are some of the things you need to think about when you're building a custom fabrication.
1. Type and thickness of the material (e.g. T-304 or T-316 stainless steel; 11, 14 or 16 gauge).
2. Rounded (cove) or square corners.
3. Fittings required (NPT or sanitary).
4. NEMA rating, if applicable.
5. Transportability (e.g. wheels, skids, etc.)
6. Volume and configuration.
For MasterCraft's stock items see the category Stainless Steel Products.
Capabilities:
• Welding - Arc, Mig, Tig
• Slip Roll Forming - to 12 gauge
• Brake - 30 ton, 1/4"x10'
• Shear - 10 gauge x 10'
• Plasma Cutting - 20 gauge to 1/2"
• Grinding/Polishing - to mirror finish
• Flanging - to 12 gauge
• Ring and Circle Shearing - to 12 gauge |
|
RETURN |
|
Faucet, Bibb, Male, Stainless Steel |
Click on the image for a larger picture |
| T-23-100 |
1/2", MNPT |
| T-23-103 |
3/4", MNPT |
|
|
| T-316 stainless steel. |
|
RETURN |
|

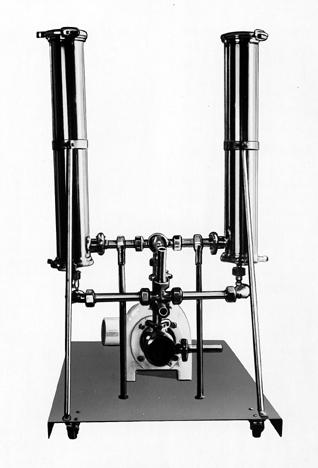

Filter, Cartridge Type, Stainless Steel |
Click on the image for a larger picture |
| T-30-114 |
5 gpm, single cylinder |
| T-30-108 |
7 gpm, single cylinder |
| T-30-109 |
12 gpm, single cylinder |
| T-30-110 |
14 gpm, dual cylinder |
| T-30-111 |
24 gpm, dual cylinder |
|
|
| All stainless steel construction utilizing perforated tubes and/or stainless steel wire mesh screens. They insure quality and sanitation while protecting your processing equipment. These in-line units are built to your specifications. Tell us your flow rate, pressure, process fluid (specific gravity and viscosity), level of filtration required and whether you require clamp or acme threaded connections. |
|
RETURN |
|

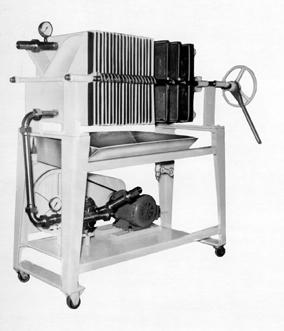

Filter, Plate and Frame |
Click on the image for a larger picture |
| T-30-305 |
10 filtering surfaces |
| T-30-306 |
12 filtering surfaces |
| T-30-307 |
14 filtering surfaces |
| T-30-308 |
16 filtering surfaces |
| T-30-309 |
18 filtering surfaces |
| T-30-310 |
20 filtering surfaces |
| T-30-311 |
22 filtering surfaces |
| T-30-312 |
24 filtering surfaces |
| T-30-313 |
26 filtering surfaces |
| T-30-314 |
28 filtering surfaces |
| T-30-315 |
36 filtering surfaces |
| T-30-316 |
40 filtering surfaces |
|
|
| These filters are portable with 1" wide cake space. The plates and frames are manufactured out of type 304 stainless steel. The 12" plates are surface ground. (Larger plates are available.) The standard working pressure is 75 psi. The maximum temperature is 425 deg F. |
|
RETURN |
|
Fittings, Bevel Seat, Gasket, Snap-Tite |
| T-23-166 |
1", Neoprene |
| T-23-167 |
1-1/2", Neoprene |
| T-23-202 |
2", Neoprene |
| T-23-169 |
2-1/2", Neoprene |
| T-23-170 |
3", Neoprene |
| T-23-171 |
1", Teflon |
| T-23-172 |
1-1/2", Teflon |
| T-23-173 |
2", Teflon |
| T-23-174 |
2-1/2", Teflon |
| T-23-176 |
3", Teflon |
| T-23-175 |
4", Teflon |
|
Tight joints are assured with highly polished Snap-Tite gaskets which hug sanitary fitting surfaces smoothly.FDA and USDA approved non-toxic material which maintains sanitary conditions. Temperature ranges are 250 degrees for Neoprene (Buna) and 500 degrees for Teflon. |
|
|
RETURN |
|
Fittings, Bevel Seat, Stainless Steel |
|
John Mulhern Company offers the full range of Bevel Seat fittings. Click on User Information below and select the fittings you need. Please call or write us for current prices.
User Instructions and Downloads
 |
|
RETURN |
|
Fittings, Threaded, NPT, Stainless Steel |
Click on the image for a larger picture |
| T-23-130 |
Square head plug, specify size |
| T-23-131 |
Hex bushing, specify size |
| T-23-132 |
Union, specify size |
| T-23-133 |
Nipple, specify size |
| T-23-134 |
Locknut, specify size |
| T-23-135 |
Cap, specify size |
| T-23-136 |
90 Deg street elbow, specify size |
| T-23-137 |
90 Deg elbow, specify size |
| T-23-138 |
Tee, specify size |
| T-23-139 |
45 Deg elbow, specify size |
| T-23-140 |
Cross, specify size |
| T-23-141 |
Coupling, full, specify size |
| T-23-142 |
Coupling, reducing, specify size |
| T-23-143 |
Nipple, reducing, specify size |
| T-23-177 |
Coupling, half, specify size |
|
|
| 150 psi threaded fittings in T-304 stainless steel. T-316 and 2000 psi rated fittings also available. Please inquire. |
|
RETURN |
|
Fittings, Tri-Clamp, Gasket |
| T-22-400 |
1", Buna N |
| T-22-401 |
1", Silicone |
| T-22-402 |
1", EPDM |
| T-22-403 |
1-1/2", Buna N |
| T-22-404 |
1-1/2", Silicone |
| T-22-405 |
1-1/2", EPDM |
| T-22-406 |
2", Buna |
| T-22-407 |
2", Silicone |
| T-22-408 |
2", EPDM |
|
Flange molded o-ring gaskets fit snugly and stay in position.
Other sizes and materials available. Please inquire. |
|
|
RETURN |
|
Fittings, Tri-Clamp, Stainless Steel |
|
John Mulhern Company offers the full range of Tri-Clamp fittings. Click on User Information below and select the fittings you need. Please call or write us for current prices.
User Instructions and Downloads
 |
|
RETURN |
|
Funnel Cone, Wire |
Click on the image for a larger picture |
| T-21-214 |
11-1/4" dia x 11-1/4" deep |
|
|
| The wire cone is placed between the solid funnel sides and the filtering media to expose more filtration area, thus speeding up the process. It fits all funnels down to 7" diameter. 300 series stainless steel with each joint welded and polished. |
|
RETURN |
|
Funnel, Filter Paper |
Click on the image for a larger picture |
| T-09-395 |
Fluted, 20", 50/box |
| T-09-341 |
Fluted, 24 cm, 100/box |
| T-09-342 |
Fluted, 32 cm, 100/box |
| T-09-343 |
Fluted, 50 cm, 100/box |
|
Provides 24 micron retention. |
|
|
RETURN |
|
Funnel, Heavy Duty, Stainless Steel |
Click on the image for a larger picture |
| T-21-215 |
12" dia x 12" deep, no spout |
| T-21-401 |
With 2" OD tubular spout |
| T-21-402 |
With 1-1/2" NPT half coupling outlet |
| T-21-403 |
With 2" NPT half coupling outlet |
| T-21-404 |
With 1-1/2" NPT nipple |
| T-21-405 |
With 2" NPT nipple |
| T-21-406 |
With 1-1/2" sanitary Tri-Clamp |
| T-21-407 |
With 2" sanitary Tri-Clamp |
|
|
| This T-304 stainless steel, seamless, welded funnel has a large 12" top diameter and a 2" opening on the bottom. It is also available in T-316 stainless. |
|
|
|
Funnel, Seamless, Stainless Steel |
Click on the image for a larger picture |
| T-21-183 |
3" dia, 5 oz rated capacity, 2-1/4 oz plugged capacity |
| T-21-182 |
4" dia, 10 oz rated capacity, 6 oz plugged capacity |
| T-21-181 |
5" dia, 20 oz rated capacity, 13 oz plugged capacity |
| T-21-180 |
6" dia, 1 qt rated capacity, 22 oz plugged capacity |
| T-21-179 |
7" dia, 2 qt rated capacity, 1 qt plugged capacity |
| T-21-178 |
8" dia, 4 qt rated capacity, 2 qt plugged capacity |
| T-21-210 |
10" dia, 8 qt rated capacity, 4 qt plugged capacity |
| T-21-213 |
10" dia, T-316 ss |
| T-21-212 |
12" dia, 12 qt rated capacity, 6 qt plugged capacity |
| T-21-211 |
12" dia, T-316 ss |
|
|
| Sanitary design, polished inside and outside, vented, with hanging loop. T-304 stainless steel unless otherwise noted. |
|
RETURN |
|
Funnel, Strainer/Sieve, Mesh |
Click on the image for a larger picture |
| T-21-555 |
Unit, complete, 60 mesh |
|
|
| Type 304 stainless steel. Available in six stock mesh sizes: 20, 30, 40, 50 and 60. Other mesh sizes available on request. The standard unit is 12" dia by 11" deep and fits the T-21-215 funnel. For other sizes please inquire. |
|
RETURN |
|
Gasket, Custom |
| Custom gaskets in a variety of sizes are available in small quantities. Materials include Silicone Rubber, Buna, EPDM, Teflon, Viton and Neoprene. Please inquire. |
|
|
|
|
|
|
|
