Stainless Steel Products

Processing equipment, laboratory supplies and instrumentation for the soft drink, food, chemical, pharmaceutical, water, and waste water industries.

Your product quality is our business.
  • Handle, Brush, Tank (see Tank Brush Handle)
  • Hose Clamp (see Tubing (Soft) Clamp, Stainless Steel)
  • Kettle, Sanitary, Jacketed, Three Legs, Stainless Steel
  • Kettle, Sanitary, Jacketed, Trunion, Stainless Steel
  • Line Strainer (see Strainer, Line)
  • Lubricant, Silicone, Sanitary
  • Measure, Graduated, Heavy Duty, Stainless Steel
  • Measure, Graduated, w/Handle, Stainless Steel
  • Measure, Graduated, wo/Handle, Stainless Steel
  • Measure, Utility, w/Handle, Stainless Steel
  • Mixer Propeller, Stainless Steel
  • Mixer, Hand Stirrer, Stainless Steel
  • Mixer, Laboratory
  • Mixer, Magnetically Coupled, Sealed Chamber
  • Mixer, Side Entering, Sanitary Type, Without Motor
  • Mixer, Side Entering, Without Motor
  • Mixer, Top Entering, Heavy Duty
  • Mixer, Top Entering, Medium Duty
  • Mixing Paddle, Stainless Steel

  • RETURN

    Kettle, Sanitary, Jacketed, Three Legs, Stainless Steel.
    T-30-169 10 gal
    T-30-170 20 gal
    T-30-171 30 gal
    T-30-172 40 gal
    T-30-173 50 gal
    T-30-174 60 gal
    T-30-175 80 gal
    T-30-176 100 gal
    T-30-177 125 gal
    T-30-178  150 gal

    Direct steam, 2/3rd jacketed kettles with T-316 stainless steel interior and a T-304 stainless steel exterior. 3 or 4 legs depending on size. 30 psi operating pressure up to 100 gallons and 25 psi for the 125 and 150 gallon. Furnished with an A.S.M.AE. code stamp. Includes a 304 stainless steel cover. Actuator assisted on 60 gallon kettles and larger.

    RETURN

    Kettle, Sanitary, Jacketed, Trunion, Stainless Steel
    T-30-183 10 gal
    T-30-184 20 gal
    T-30-185 30 gal
    T-30-186 40 gal
    T-30-187 50 gal
    T-30-188 60 gal
    T-30-189  80 gal

    Tilting kettles are designed for products with a high viscosity. Direct steam, 2/3rd jacketed. Inner shells are T-316 stainless steel with T-304 outer jacket shells. Self-locking worm gear tilt mechanism. Operating pressure of 30 psi. Available pedestal-mounted or on a tri-legged stand.

    RETURN

    Lubricant, Silicone, Sanitary
    T-23-196  16 oz, aerosol

    Manufactured to meet rigid requirements: non-toxic, odorless, non-flammable. This lubricant lays down a 5 mil coating and remains effective until it is worn to 1 mil. Test results indicate 35 to 50 operations for rubber plug valves and up to 41

    RETURN

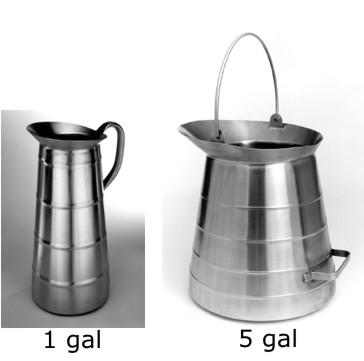

    Measure, Graduated, Heavy Duty, Stainless Steel

    Click on the picture for a larger image.
    T-21-301 1 gal, 1 qt increments
    T-21-305 5 gal, 1 qt increments

    All seamless welded construction, T-304 stainless steel, polished inside and out, sanitary, heavy duty.

    RETURN

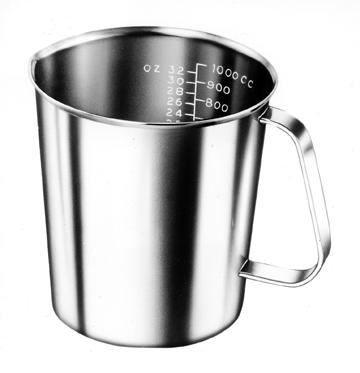

    Measure, Graduated, w/Handle, Stainless Steel

    Click on the picture for a larger image.
    T-21-163 16 oz/500 cc (2 oz and 50 cc increments)
    T-21-164 32 oz/1000 cc (2 oz and 100 cc increments)
    T-21-165 64 oz/2000 cc (4 oz and 100 cc increments)
    T-21-166 128 oz/4000 cc (4 oz and 200 cc increments)
    T-21-184  128 oz/4000 cc (T-316 SS)

    Polished inside and outside. Marked off permanently in ounces and cubic centimeters. Seamless, T-304 stainless steel. The T-21-166 is also available in T-316 stainless steel (as T-21-184).

    RETURN

    Measure, Graduated, wo/Handle, Stainless Steel

    Click on the picture for a larger image.
    T-21-168  32 oz/1000 cc

    Polished inside and outside. Marked off permanently in ounces and cubic centimeters. All T-304 stainless steel, seamless construction.

    RETURN

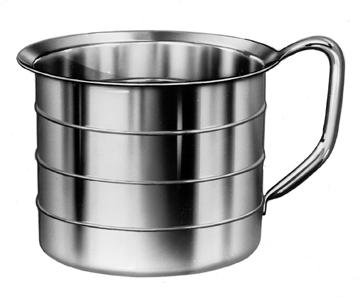

    Measure, Utility, w/Handle, Stainless Steel

    Click on the picture for a larger image.
    T-21-162  1 gal

    One gallon capacity with 1 quart graduated markings. 7-1/4" diameter x 6-1/8" deep. T-304 stainless steel, seamless construction.

    RETURN

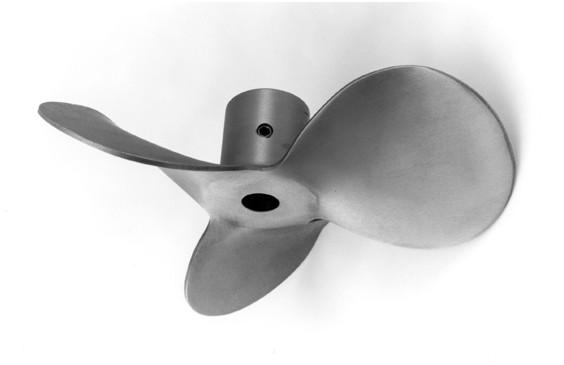

    Mixer Propeller, Stainless Steel

    Click on the picture for a larger image.
    T-16-110  2" dia, 1/4" to 5/16" bore, T-304 ss
    T-16-111 3" dia, 3/8" to 1/2" bore, T-304 ss
    T-16-112  4" dia, 1/2" to 3/4" bore, T-304 ss
    T-16-114 6" dia, 5/8" to 1" bore, T-304 ss
    T-16-115 7" dia, 3/4" to 1" bore, T-304 ss
    T-16-116 8" dia, 3/4" to 1" bore, T-304 ss
    T-16-117 10" dia, 3/4" to 1" bore, T-304 ss
    T-16-118 12" dia, 7/8" to 1-5/8" bore, T-304 ss
    T-16-120  2" dia, T-316 ss
    T-16-121 3" dia, T-316 ss
    T-16-122  4" dia, T-316 ss
    T-16-124  6" dia, T-316 ss
    T-16-125  7" dia, T-316 ss
    T-16-126  8" dia, T-316 ss
    T-16-127  10" dia, T-316 ss
    T-16-128  12" dia, T-316 ss

    These three-bladed mixing propellers are fabricated and welded, not cast. They are seamless with a smooth, polished finish. The hub has a set screw. They are available in T-304 and T-316 stainless steel.

    When ordering, please specify right or left hand pitch and bore size.

    Viewed from the top, looking down:

    Motor running clockwise - left hand pitch directs the flow down; right hand pitch directs the flow up

    Motor running counterclockwise - left hand pitch directs the flow up; right hand pitch directs the flow down.

    Stainless steel shafts are available in diameters of 1/2", 5/8", 3/4" and l". Please specify length required.

    Stabilizing rings are also available. Please inquire.

    RETURN

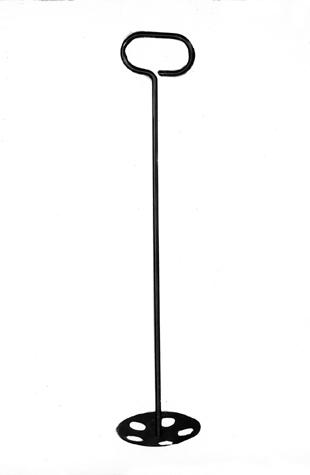

    Mixer, Hand Stirrer, Stainless Steel

    Click on the picture for a larger image.
    T-30-209  Unit, complete

    Stir liquids by moving this mixer up and down. It is 26" long with a disk diameter of 5-3/8". The disk is perforated with 5 holes. T-304 stainless steel.

    RETURN

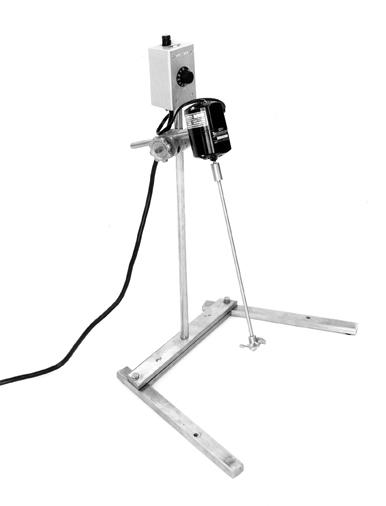

    Mixer, Laboratory

    Click on the picture for a larger image.
    T-16-135  Unit, complete

    This unit comes with a 2" propeller. The shaft is 1/4" x 15" long. It has a 1/20 hp universal motor rated at 5000 rpm. Its capacity is 5 gallons. The overall height is 24".

    Features:
    • Angle adustment.
    • Speed controller and timer.
    • Stainless steel adjustable base.
    • Accommodates 18" diameter container.
    • Stainless steel shaft and propellor.

    User Instructions

    RETURN

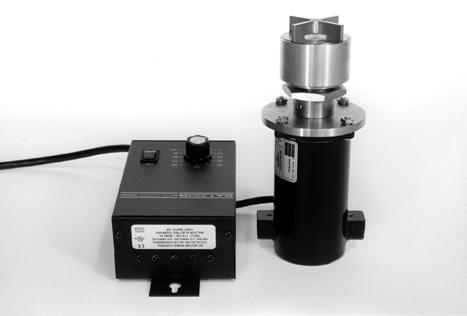

    Mixer, Magnetically Coupled, Sealed Chamber

    Click on the picture for a larger image.
    T-02-360  Unit, complete

    This unit is designed for use in sealed chambers, under vacuum or pressure. It elminates the problems of shaft seal maintenance and leakage. The maximum speed is is 2000 rpm, greater then most magnetic stir bar mixers, and it provides more mixing action. Add baffles to the chamber walls to improve mixing. All wetted surfaces are T-303 stainless steel. On special order the unit can be made in T-316 stainless steel. The mixing assembly blades can be designed and sized for your application.

    Installation is simple. Drill a hole in the bottom of the chamber and slide in the drive housing and seal. The locking nut on the bottom holds the housing and seal in place. Attach the drive magnet and motor with two set screws.

    RETURN

    Mixer, Side Entering, Sanitary Type, Without Motor
    T-30-152  Up to 2 hp
    T-30-150 Up to 5 hp

    RETURN

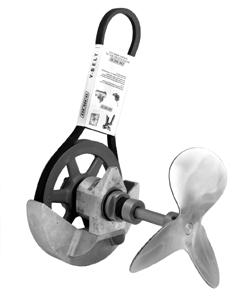

    Mixer, Side Entering, Without Motor
    T-30-151 Unit, complete
    T-30-401  Shaft only, 3/4"
    T-30-402 Rubber seal cushion, W5207
    T-30-403 Seal, graphite, W5206
    T-30-404 Spud and bushing, X5008
    T-30-405 Gasket set, S5009
    T-30-406  Housing, Y5037
    T-30-407  Ring, retaining, P161
    T-30-408 8" sheave, 1" bore, P183
    T-30-409 Sheave, motor, 3/4" bore, P184
    T-30-410 Stub shaft, W-5456
    T-30-411  1/2-13 3/8 long socket head, set P143
    T-30-412 Belt, P180
    T-30-413 Belt guard, Y7003
    T-30-414 Flat head machine screw, P181
    T-30-415  Bearing bushing, W5095
    T-30-416  Spud adapter, X5096
    T-30-417  Stub shaft, W5459
    T-30-418  Shielded ball bearing, P179
    T-30-419  Retaining ring, P162
    T-30-420 Set screw

    RETURN

    Mixer, Top Entering, Heavy Duty
    T-16-140  1/3 hp, 350 rpm, 110 VAC
    T-16-141 1/2 hp, 350 rpm, 110/220 VAC
    T-16-142  3/4 hp, 350 rpm, 110/220 VAC

    These top entering mixers are designed for the more viscous types of liquid and include a heavy duty bronze motor clamp. The propellers can be positioned anywhere along the shaft.

    Features:
    Propellers: two 7", T-304 stainless steel
    Shaft: stainless steel, 3/4" diameter x 48" long
    Mixing Speed: 1725 rpm motor with helical gears to deliver propeller speed of 350 rpm
    Motor: 110 VAC, single phase, 60 cycle or 220 VAC, 3 phase, 60 cycle, TEFC

    Weight: 50 lbs.
    Delivery: from stock

    Variable speed, explosion proof and other voltages are available on request.

    RETURN

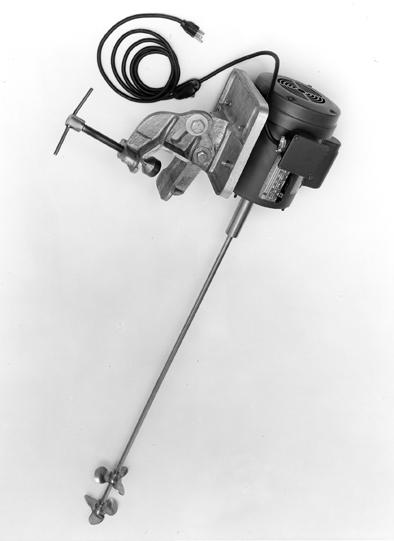

    Mixer, Top Entering, Medium Duty

    Click on the picture for a larger image.
    T-16-136  1/3 hp, 1725 rpm, 110 VAC
    T-16-138 1/2 hp, 1725 rpm, 110 VAC
    T-16-139  3/4 hp, 1725 rpm, 110 VAC

    These top entering agitators have an all angle motor, with a heavy duty aluminum clamp for angle adjustment. The propellers can be positioned anywhere along the shaft.

    Features:
    Propellers: two, T-304 stainless steel
    Shaft: stainless steel, 1/2" diameter x 36"
    Mixing speed: 1725
    Motor: ll5 VAC, single phase, 60 cycle, ball bearing, totally enclosed (230 VAC on request)

    Weight: 40 lbs
    Delivery: from stock

    RETURN

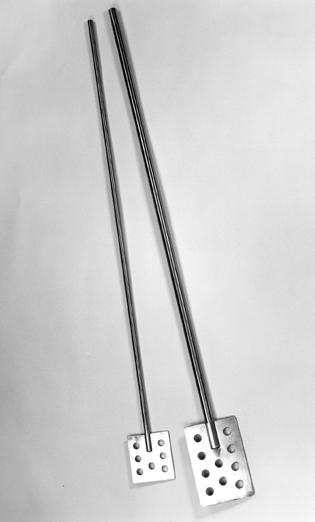

    Mixing Paddle, Stainless Steel

    Click on the picture for a larger image.
    T-19-382  2 ft handle, heavy duty
    T-19-383 3 ft handle, heavy duty
    T-19-384 4 ft handle, heavy duty
    T-19-385 5 ft handle, heavy duty
    T-19-392 2 ft handle, light duty
    T-19-393 3 ft handle, light duty
    T-19-394 4 ft handle, light duty
    T-19-395  5 ft handle, light duty

    Heavy duty: 1" tubing, 6" X 9" blade of 14 gauge, T-304 stainless steel, with large perforations for easier mixing.

    Light duty: 5/8" tubing, 5" x 5 1/2" blade of 14 gauge, T-304 stainless steel, with large perforations for easier mixing.

    Sanitary. Tee handles available. Larger sizes on request.
